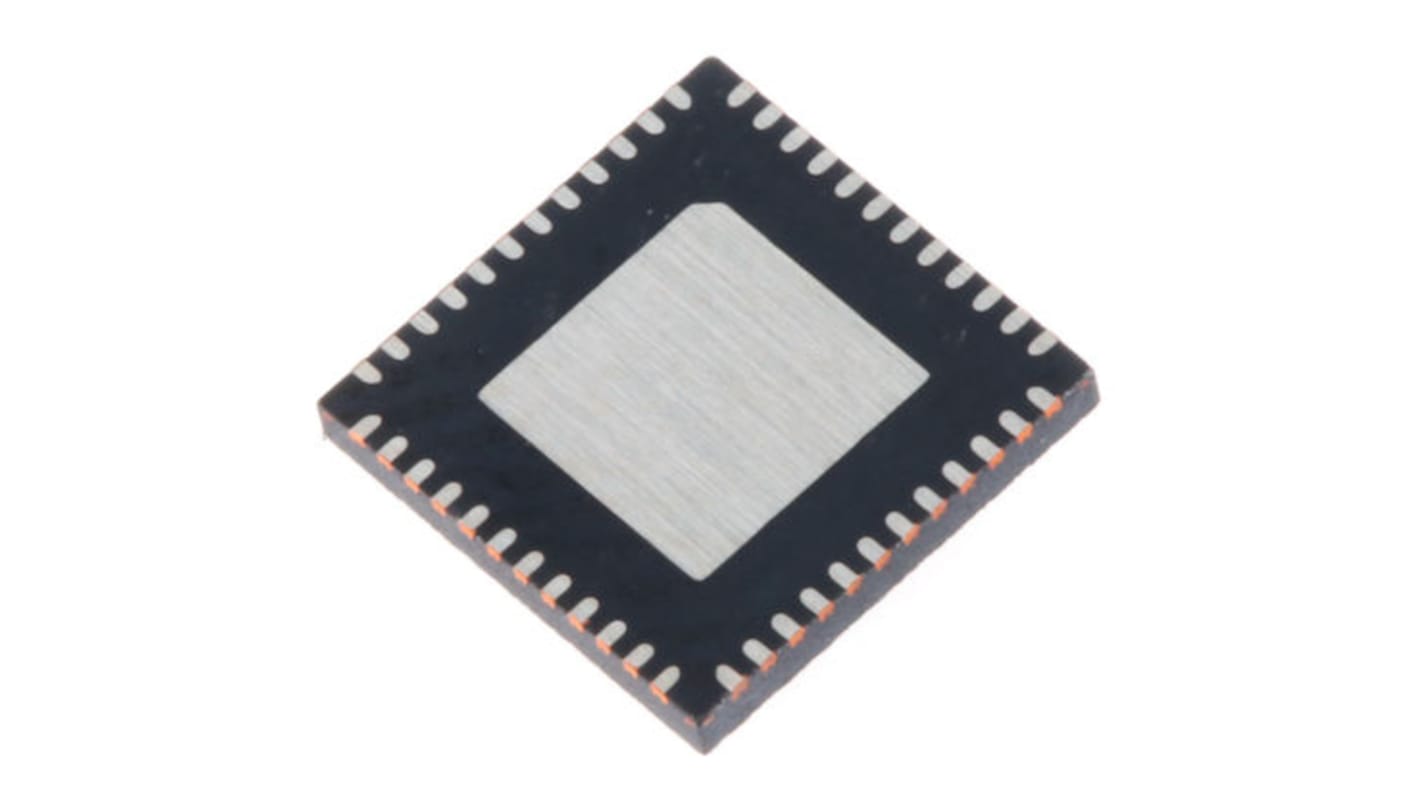

STMicroelectronics CLT01-38SQ7-TR, 8 Channel Protector, 15 → 35 V, 48-Pin QFN
- RS Stock No.:
- 166-0868
- Mfr. Part No.:
- CLT01-38SQ7-TR
- Brand:
- STMicroelectronics
Available to back order for despatch 21/03/2025
Added
Price Each (On a Reel of 2500)
£1.286
(exc. VAT)
£1.543
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £1.286 | £3,215.00 |
| *price indicative | ||
- RS Stock No.:
- 166-0868
- Mfr. Part No.:
- CLT01-38SQ7-TR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Current-Limiting Termination (CLT), STMicroelectronics
Intelligent protected terminations designed for digital-input modules and proximity-sensor interfaces used in factory, industrial, and building automation systems, and for PLCs.
8 input protected channels
SPI output
600 W overvoltage protection integrated
SPI output
600 W overvoltage protection integrated
Specifications
Attribute | Value |
|---|---|
| Number of Channels per Chip | 8 |
| Operating Supply Voltage Range | 15 → 35 V |
| Power Dissipation | 78mW |
| Package Type | QFN |
| Pin Count | 48 |
| Mounting Type | Surface Mount |
| Dimensions | 7 x 7 x 0.95mm |
| Length | 7mm |
| Width | 7mm |
| Height | 0.95mm |
| Maximum Operating Supply Voltage | 35 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Operating Temperature Range | -40 → +105 °C |
| Minimum Operating Supply Voltage | 15 V |
