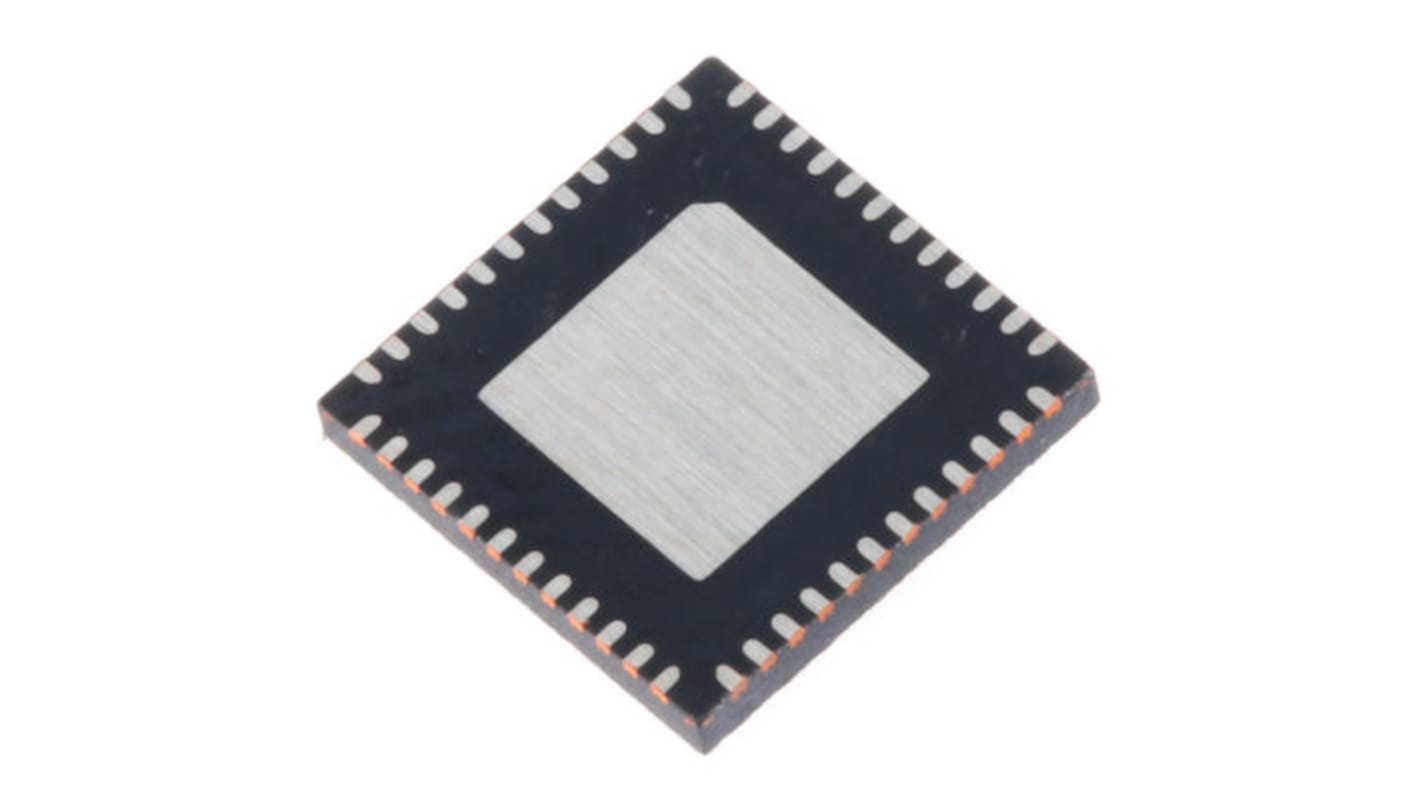

STMicroelectronics SCLT3-8BQ7-TR, 8 Channel Protector, 15 → 35 V, 48-Pin QFN

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Current-Limiting Termination (CLT), STMicroelectronics

Intelligent protected terminations designed for digital-input modules and proximity-sensor interfaces used in factory, industrial, and building automation systems, and for PLCs.

8 input protected channels
SPI output
600 W overvoltage protection integrated

Specifications
Attribute Value
Number of Channels per Chip 8
Operating Supply Voltage Range 15 → 35 V
Power Dissipation 78mW
Package Type QFN
Pin Count 48
Mounting Type Surface Mount
Dimensions 7 x 7 x 0.95mm
Length 7mm
Width 7mm
Height 0.95mm
Maximum Operating Supply Voltage 35 V
Maximum Operating Temperature +105 °C
Minimum Operating Supply Voltage 15 V
Minimum Operating Temperature -40 °C
Operating Temperature Range -40 → +105 °C
35 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.716
(exc. VAT)
£ 0.859
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£0.716
£3.58
*price indicative
