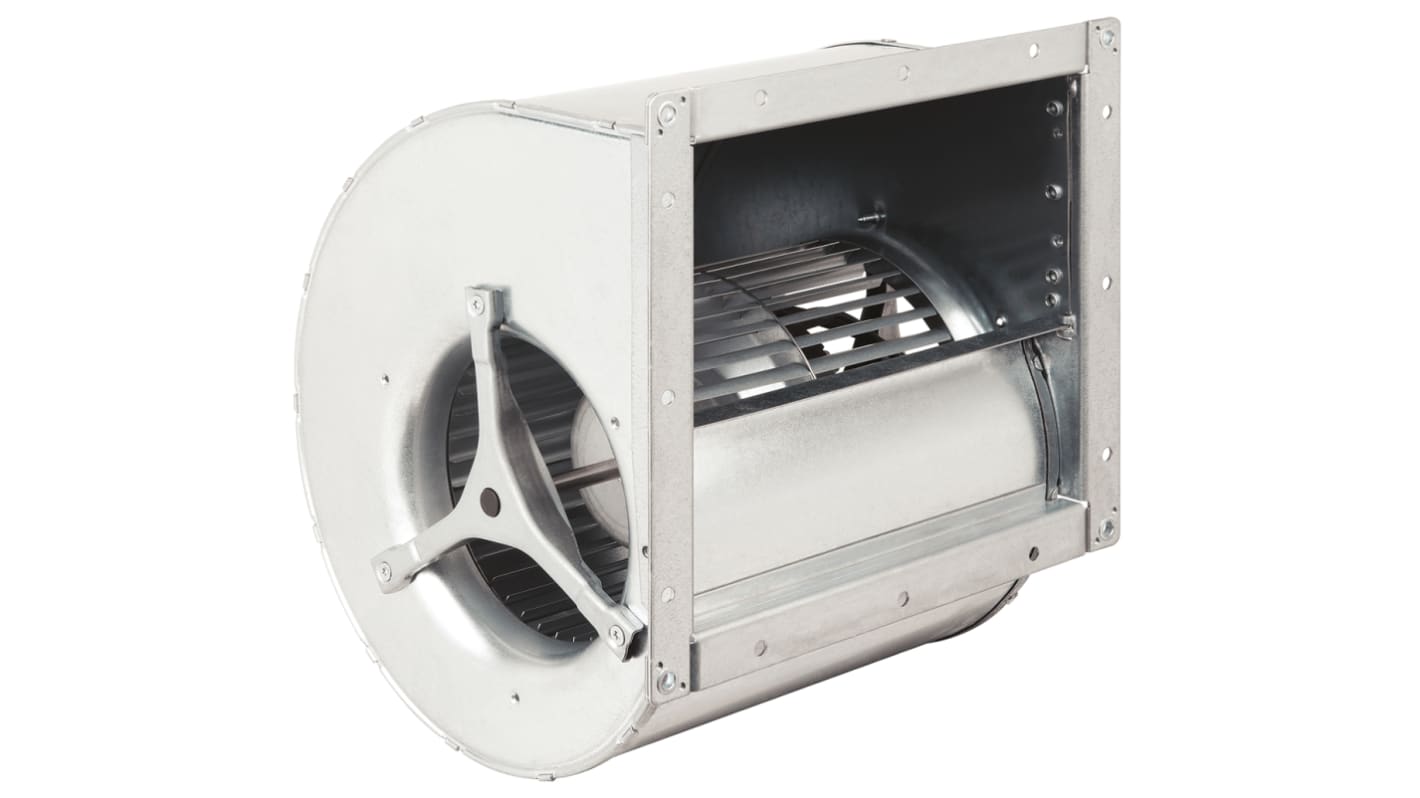

ebm-papst EC Dual Inlet Centrifugal Fan 333 x 296 x 309mm, 200 → 277 V ac AC (D3G180 Series)

  • RS Stock No. 841-4892
  • Mfr. Part No. D3G180-AB62-01
  • Brand ebm-papst
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ebm-papst EC Dual Inlet Centrifugal Blowers

The ebm-papst EC dual inlet centrifugal blower series, with forward curved blades, offer a reliable and versatile solution to a variety of requirements. The scroll housing is open on both sides. Characteristic features include high energy efficiency, a low noise level, robust design and space-saving application.

ErP 2015 compliant
Fitted with highly efficient GreenTech EC motor
Intelligent electronics for numerous control functions
Wide voltage range
Robust design and maintenance free operation
Long service life
Suitable for a wide range of high pressure applications

Specifications
Attribute Value
Supply Voltage 200 → 277 V ac
Blower Type EC Dual Inlet
AC or DC Operation AC
Series D3G180
Height 333mm
Width 296mm
Depth 309mm
Dimensions 333 x 296 x 309mm
Fan Speed 1130rpm
Bearing Type Ball
Mounting Hole Spacing 168 x 289mm
Commutation Type Electronic
Vertical Hole Spacing 168mm
Horizontal Hole Spacing 289mm
Direction of Curve Forward
Sensor Output Type Open Collector
Mounting Hole Diameter 7mm
18 In stock for FREE next working day delivery
Price Each
£ 371.91
(exc. VAT)
£ 446.29
(inc. VAT)
Units
Per unit
1 - 4
£371.91
5 - 9
£325.42
10 - 19
£297.53
20 +
£269.63
