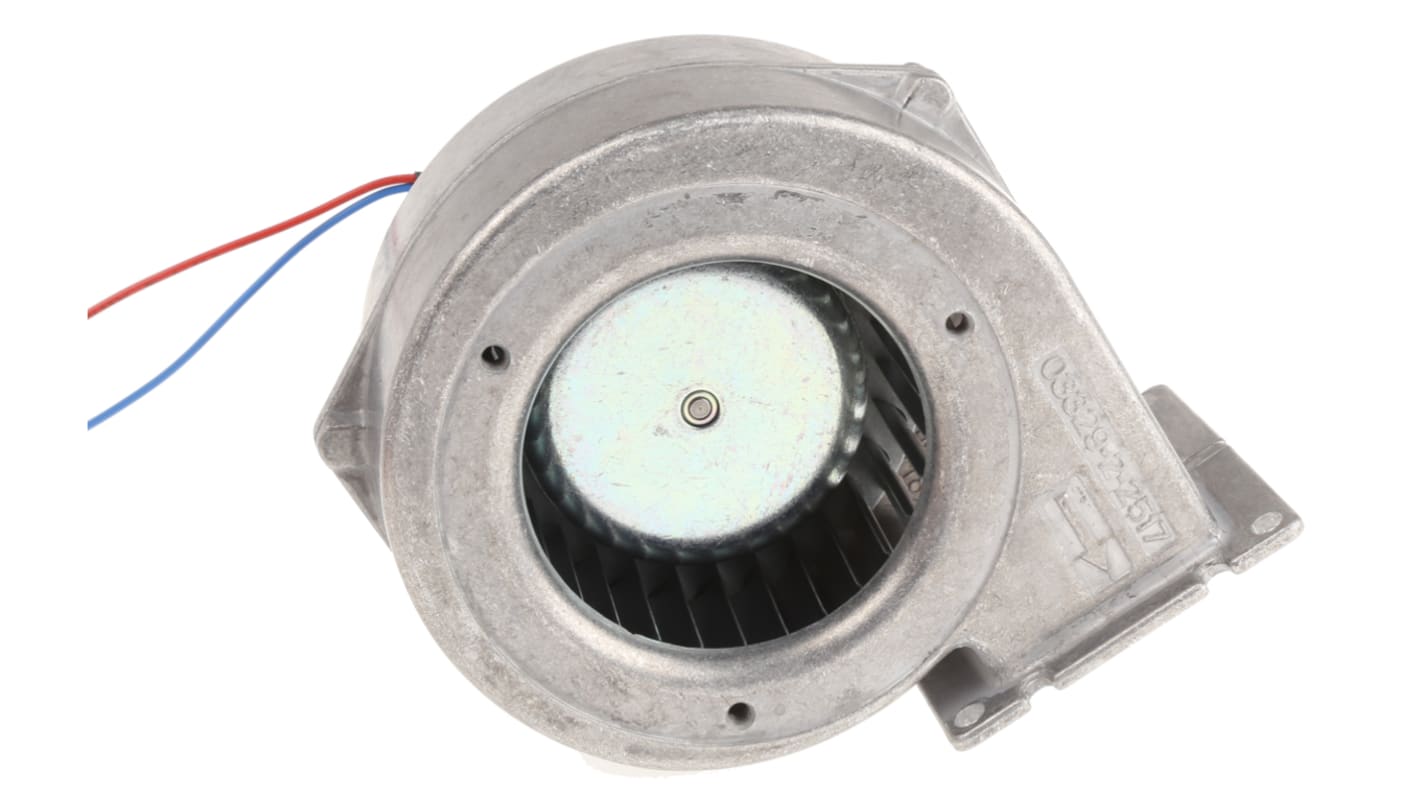

ebm-papst Centrifugal Fan 117 x 127 x 76mm, 80m³/h, 12 V dc DC (G2G085 Series)

  • RS Stock No. 243-6439
  • Mfr. Part No. G2G085-AB04-10
  • Brand ebm-papst
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

ebm-papst Single Inlet Centrifugal Blowers

ebm-papst single inlet centrifugal blowers are high performance fans with an external rotor motor which offers the advantage of a matched rotor and impeller in a compact space saving design. Constructed from die cast aluminium, ebm-papst blowers are rugged and long-life.

Features and Benefits:
• High performance fans with an external rotor motor
• Motors are IP44 rated, sealed for life, maintenance free, class B insulation
• Impeller: forward curved multi-vane type
• Scroll: die cast with motor capacitor, mounting flange and finger guard/filter fixings
• Ball bearing type, may be mounted in any position

Note

To prevent overloading the motor, these blowers must be operated against the minimum static pressures.

Specifications
Attribute Value
Supply Voltage 12 V dc
Blower Type Centrifugal
AC or DC Operation DC
Air Flow 80m³/h
Series G2G085
Height 117mm
Width 127mm
Depth 76mm
Dimensions 117 x 127 x 76mm
Fan Speed 2300rpm
Noise Level 52dB
Bearing Type Ball
Mounting Hole Spacing 58 x 66mm
Commutation Type Electronic
Horizontal Hole Spacing 66mm
Vertical Hole Spacing 58mm
Direction of Curve Forward
Mounting Hole Diameter 5.5mm
28 In stock for FREE next working day delivery
Price Each
£ 185.11
(exc. VAT)
£ 222.13
(inc. VAT)
Units
Per unit
1 - 4
£185.11
5 - 9
£161.97
10 - 19
£148.09
20 +
£134.20
