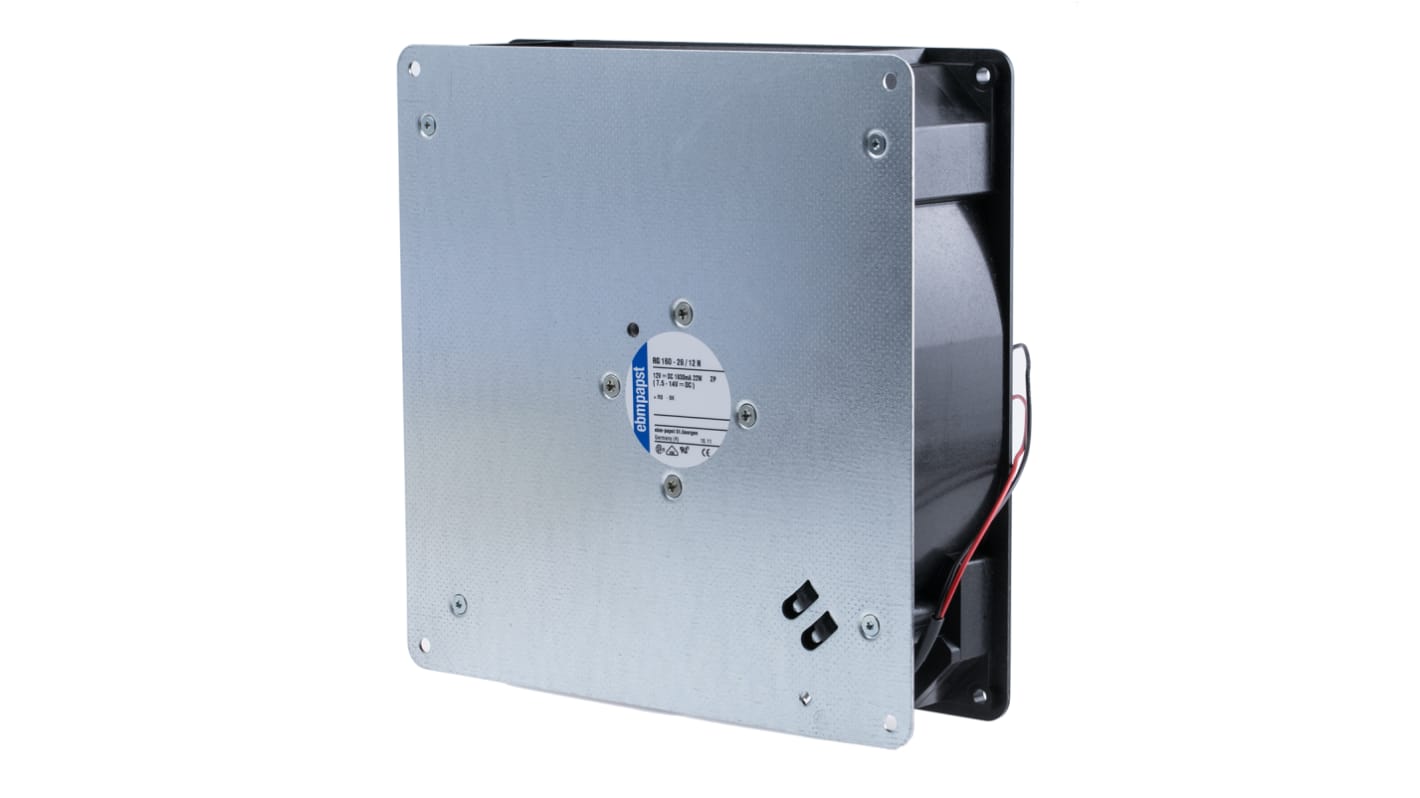

ebm-papst Centrifugal Fan 220 x 220 x 56mm, 209m³/h, 12 V dc DC (RG160 Series)

  • RS Stock No. 221-077
  • Mfr. Part No. RG160-28/12N
  • Brand ebm-papst
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Flatpack Radial Fans

• Designed for applications with limited space
• Airflow is at right angles to the intake
• High static pressure capabilities
• Connections are wire ended
• Locked rotor protection
• Ball bearing type
• High temperature low power operation

Approvals

UL; CSA; VDE

Specifications
Attribute Value
Supply Voltage 12 V dc
Blower Type Centrifugal
AC or DC Operation DC
Air Flow 209m³/h
Series RG160
Height 220mm
Width 220mm
Depth 56mm
Dimensions 220 x 220 x 56mm
Fan Speed 2850rpm
Noise Level 66dB
Bearing Type Ball
Mounting Hole Spacing 203 x 203mm
Commutation Type Electronic
Horizontal Hole Spacing 203mm
Vertical Hole Spacing 203mm
Direction of Curve Backward
Mounting Hole Diameter 5.3mm
10 In stock - FREE next working day delivery available
Price Each
£ 182.71
(exc. VAT)
£ 219.25
(inc. VAT)
Units
Per unit
1 - 4
£182.71
5 - 9
£159.87
10 - 19
£146.17
20 +
£132.45
