Product Details
Schurter SHT Fuses
Schurter SHT series cartridge fuse characterise of high breaking capacity of 1500 A and primary protection of 500 VAC. Suitable for 3-phase system applications as well as photovoltaic, Building automation (HVAC), frequency converters and power electronics.
High breaking capacity of 1500 A
High rated current
Time- Lag T characteristics
Pigtails optional
High rated current
Time- Lag T characteristics
Pigtails optional
Standards
UL, CSA
Approvals
UL
Schurter Cartridge Fuse

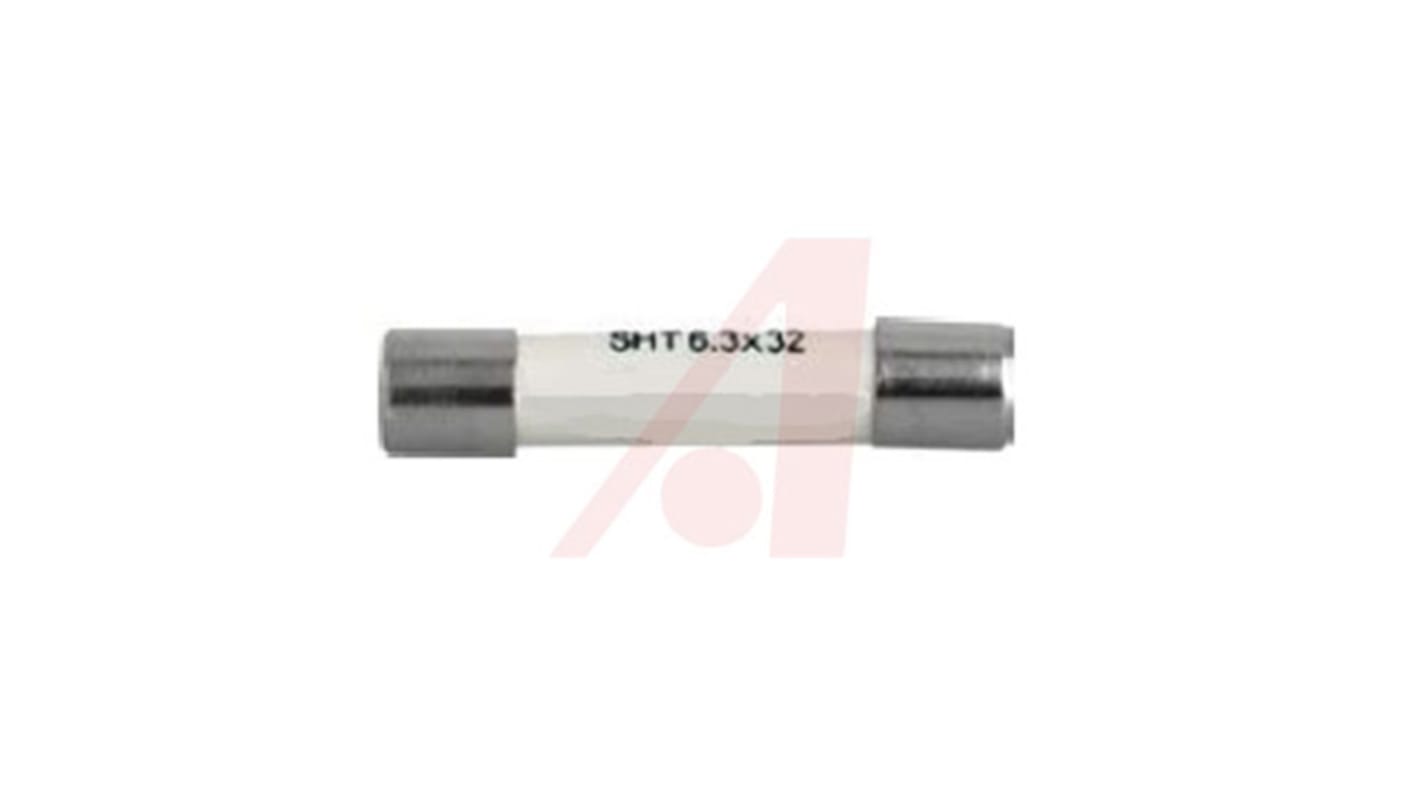

The Schurter SHT 6.3x32 standard miniature cartridge fuse has a ceramic cylindrical body with 500VAC, 63VDC 1A rating. It has nickel-plated brass alloy endcaps on both sides and tin-plated copper axial leads in it. The fuse has a thermoplastic polyamide body.
Features and Benefits
Breaking capacity is 1500A
Fuse holder/clip mount type
Melting I²t at 1.55A2s
Operating temperature ranges between -40°C and 85°C
Pigtails optional fuse
Time-lag T slow blow cartridge fuse
Fuse holder/clip mount type
Melting I²t at 1.55A2s
Operating temperature ranges between -40°C and 85°C
Pigtails optional fuse
Time-lag T slow blow cartridge fuse
Applications
3-phase systems
Frequency converters
HVAC
Industrial electronics
Photovoltaic
Power electronics
Frequency converters
HVAC
Industrial electronics
Photovoltaic
Power electronics
Certifications
CSA22.2 No. 248.14
CULus listed
IEC 60068-1
IEC/UL 60950
UL 248-14 listed
UL File Number: E41599
CULus listed
IEC 60068-1
IEC/UL 60950
UL 248-14 listed
UL File Number: E41599
All fuses have Thermoplaste Polyamide bodies
Specifications
Attribute | Value |
---|---|
Current Rating | 1A |
Fuse Size | 6.3 x 32mm |
Fuse Speed | T |
Voltage Rating | 500V ac |
Body Material | Ceramic |
UL Class | UL 248-14 |
Series | SHT 6.3x32 |
