RS PRO Steel No. 6 Captive Nut

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

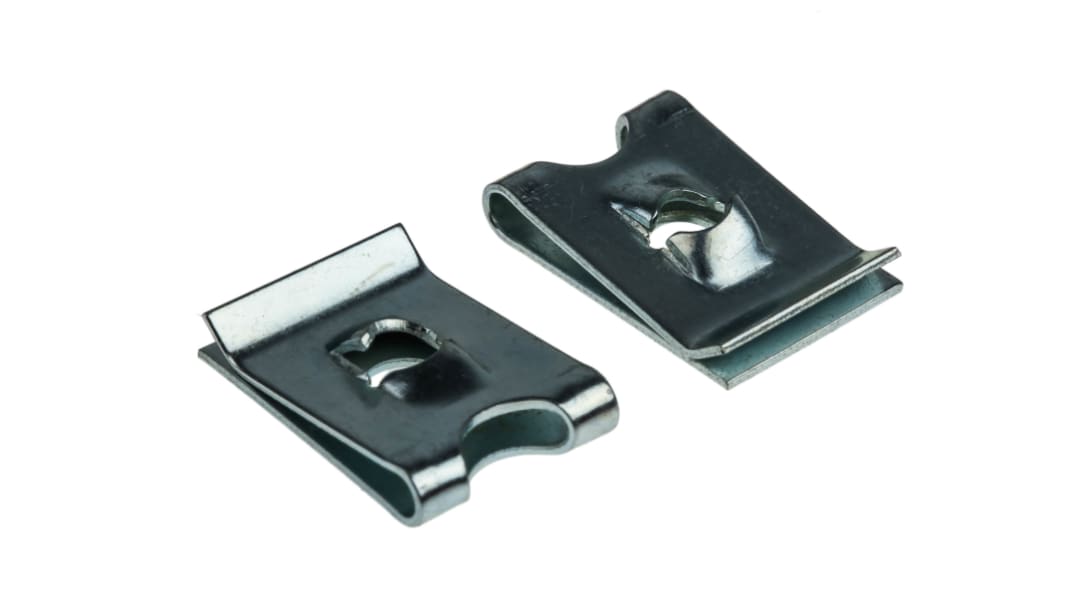

Captive 'U' or 'Spire' Fasteners

Captive 'U' or 'Spire' nuts/clips provide a simple solution to the problem of using machine or self-tapping screws in otherwise unsuitable thin sheet materials, such as sheet metal, fibreboard, hardboard etc.

Made from zinc plated & clear passivated spring steel
Available with Metric, BA and self-tapping thread forms

Specifications
Attribute Value
Thread Size No. 6
Dimensions 11.1 x 16.6mm
Material Steel
Finish Clear Passivated, Galvanised
For Panel Thickness Maximum 1.6mm
For Panel Thickness Minimum 0.5mm
Length 11.1mm
Width 16.6mm
3 In stock for FREE next working day delivery
Price 1 Bag of 100
£ 4.99
(exc. VAT)
£ 5.99
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 +
£4.99
£0.05
*price indicative
