Euro-Locks a Lowe & Fletcher group Company

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details
//media.rs-online.com/t_line/L340575-01.gif

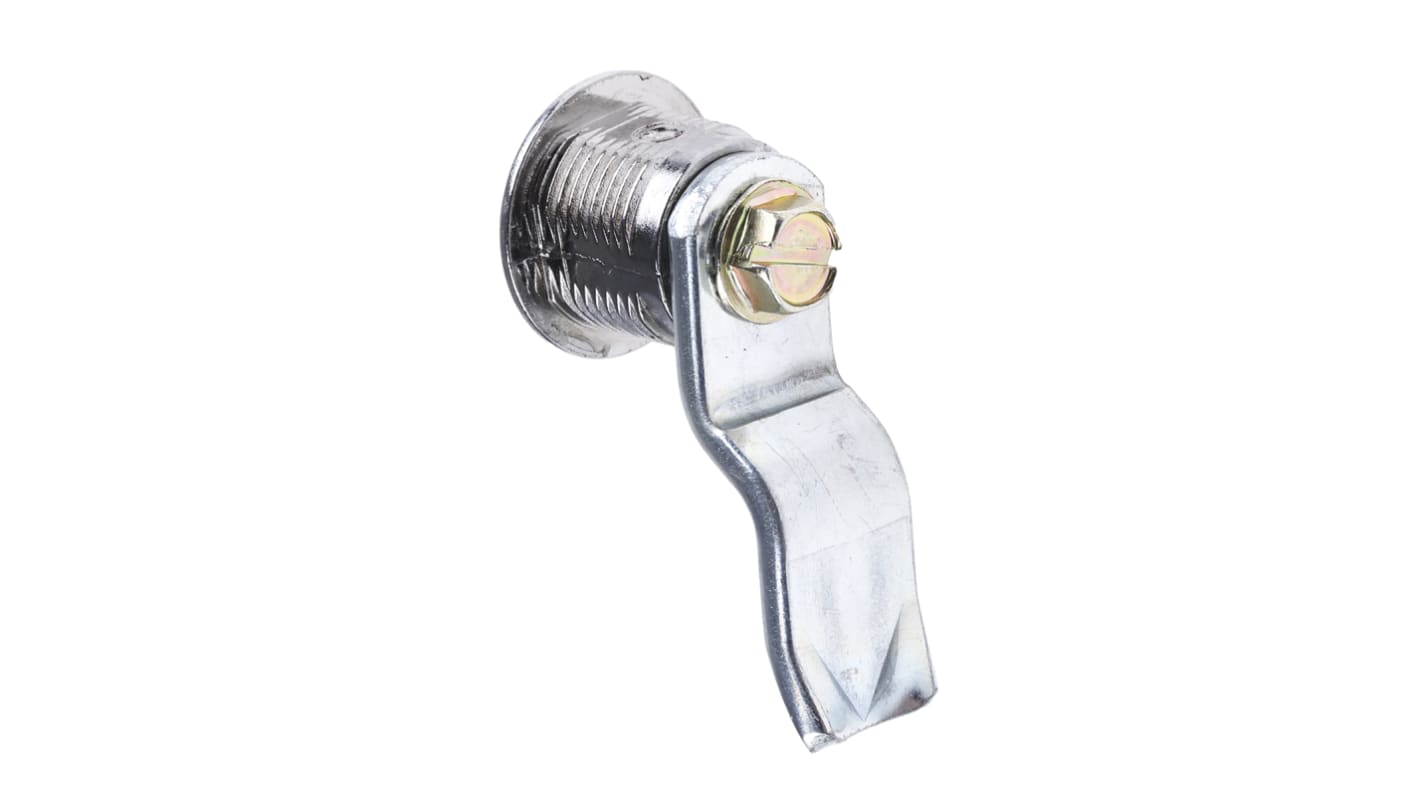

Euro-Locks A Lowe & Fletcher Group Company 3-head Spanner Lock

The Euro-Locks a Lowe & Fletcher Group company 90-degrees 3-head spanner lock is a new age security tool with a 25mm panel to tongue depth. The panel cut-out size is 22.5mm of length and 20.1mm of width. It is suitable for use on enclosures or equipment doors. It has a chrome-plated finish.

Features and Benefits

Effective steel and plastic enclosure locking device
The cam is designed to provide a slide compression
Fit and operates through 90°
Housing is 16.1mm
Lock type is triangular

Applications

Doors
Cupboards
Fire and alarm panels
Small enclosures
Drawers
Cabinets

Specifications
Attribute Value
Unlock Method Key
Panel To Tongue Depth 25mm
Panel Cut Out 22.5 x 20.1mm
Maximum Panel Thickness -, 13.2 mm
Panel Cut Out Length 22.5mm
Panel Cut Out Width 20.1mm
438 In stock - FREE next working day delivery available
Price Each
£ 4.92
(exc. VAT)
£ 5.90
(inc. VAT)
Units
Per unit
1 - 4
£4.92
5 - 9
£4.69
10 - 29
£4.44
30 +
£4.12
