- RS Stock No.:
- 795-9978
- Mfr. Part No.:
- 572-600
- Brand:
- Mitutoyo
1 In stock - FREE next working day delivery available
Added
Price Each
£256.00
(exc. VAT)
£307.20
(inc. VAT)
Units | Per unit |
1 + | £256.00 |
- RS Stock No.:
- 795-9978
- Mfr. Part No.:
- 572-600
- Brand:
- Mitutoyo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

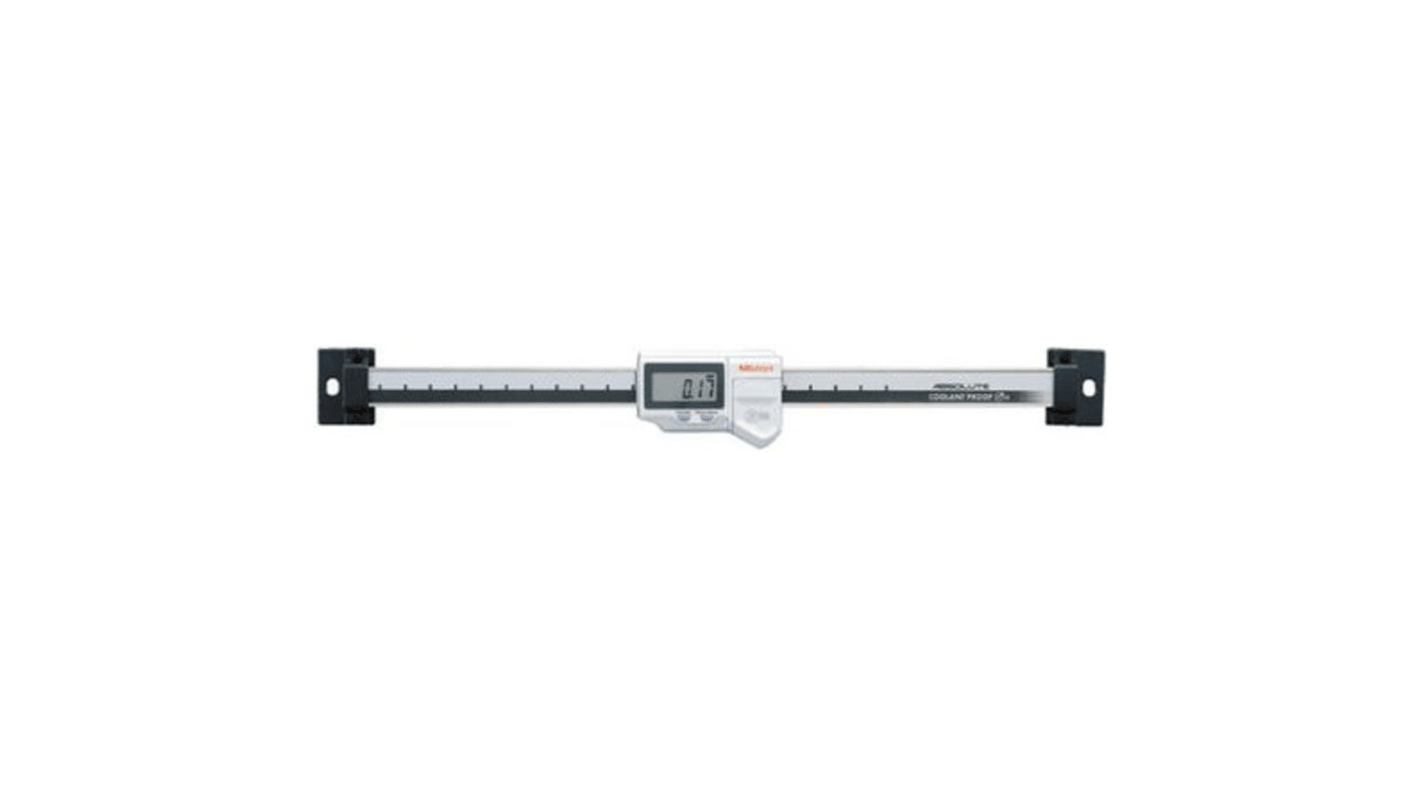

Horizontal ABSOLUTE Scale
Professional range of digital scales with horizontally oriented display.
IP66 protected.
Auto Power OFF after 20 minutes. (non use).
SPC data output
Auto Power OFF after 20 minutes. (non use).
SPC data output
Parallels, Surface Finish & Hardness
Surface Finish
Any machined component has a surface geometry which consists of three basic elements:
Form or Curvature - Whether the surface has irregular bumps or dimensional changes
Waviness - Whether the surface has regular repetitive ripples or patterns (e.g. milling patterns)
Roughness - The shapes or irregularities that are smaller than, and form part of the waviness pattern (e.g. material micro-structure)
Waviness - Whether the surface has regular repetitive ripples or patterns (e.g. milling patterns)
Roughness - The shapes or irregularities that are smaller than, and form part of the waviness pattern (e.g. material micro-structure)
Waviness and roughness are traditionally the most difficult elements to measure when comparing surface finish, however, they have a radical effect on the performance of the finished component. Variations will cause aesthetic appearance changes, component wear variations, oil retention variation etc. Many manufacturers therefore specify a range of roughness values which their components should be manufactured to, often expressed as: Ra, Rq (RMS), RzDIN, Ry, Sm,mm.
Specifications
Attribute | Value |
---|---|
Caliper Type | Scale Unit Caliper |
Capacity | 100mm |
Imperial or Metric | Metric |
Display Type | Digital |
Accuracy | 0.03 mm |
Resolution | 0.01 mm |
- RS Stock No.:
- 795-9978
- Mfr. Part No.:
- 572-600
- Brand:
- Mitutoyo
