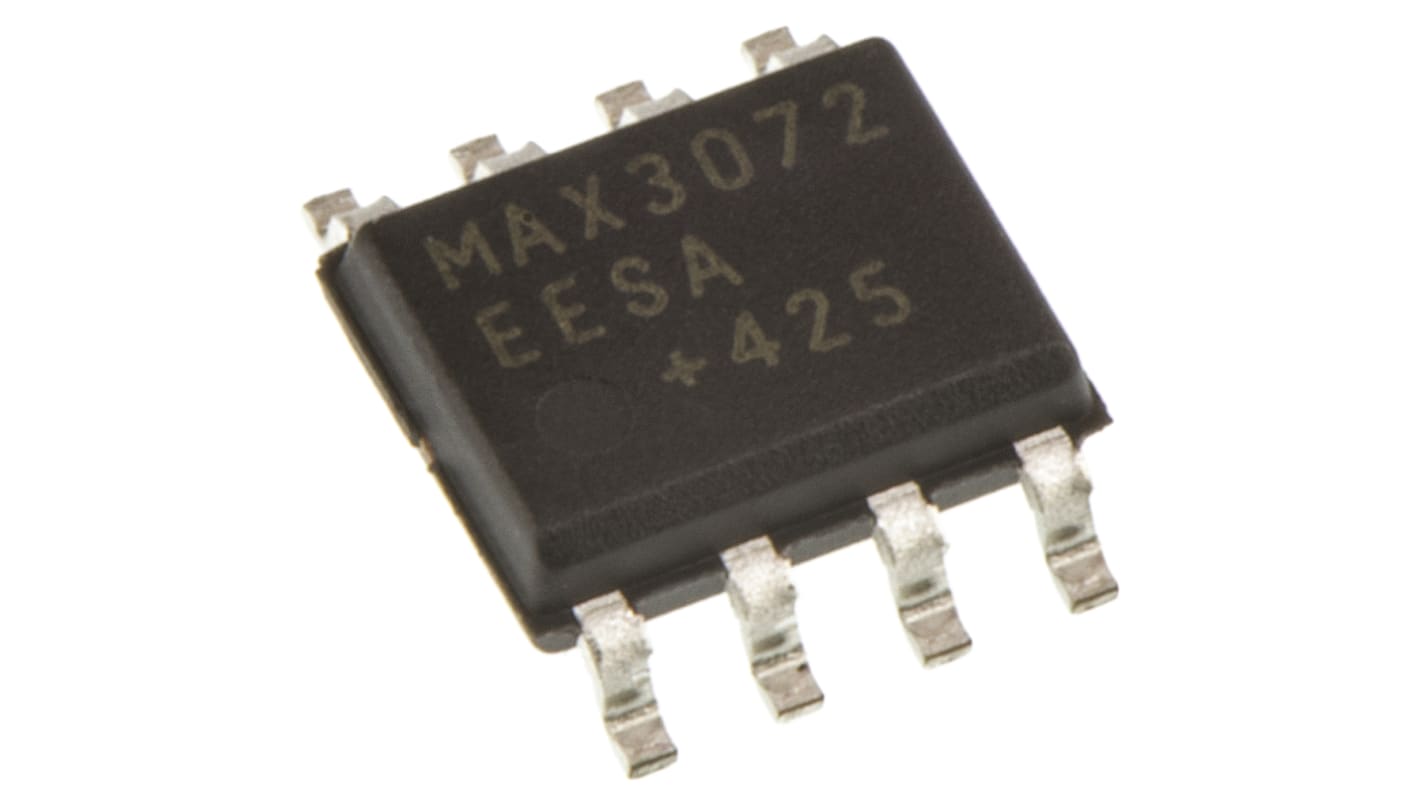

Maxim MAX3072EESA+, Line Transceiver, RS-422, RS-485, 3.3 V, 8-Pin SOIC

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

RS-485 Single Transmitters/Receivers, 3.3V, Maxim Integrated

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.

RS-485 Line Drivers and Receivers

Specifications
Attribute Value
Number of Transmitters 1
Number of Receivers 1
Number of Transceivers 1
Number of Drivers per Line 256
Number of Receivers per Line 256
Data Rate 250kbps
Mounting Type Surface Mount
Package Type SOIC
Pin Count 8
Transmitter Signal Type Differential
Receiver Signal Type Differential
Interface Standards RS-422, RS-485
Power Supply Type Single
Typical Single Supply Voltage 3.3 V
Length 5mm
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Dimensions 5 x 4 x 1.5mm
Height 1.5mm
Width 4mm
15 In stock for FREE next working day delivery
Price Each
£ 3.03
(exc. VAT)
£ 3.64
(inc. VAT)
Units
Per unit
1 - 9
£3.03
10 +
£2.72
