Ideal Sure Trace 957 Cable Tracer Kit CAT III 600 V, Maximum Safe Working Voltage 600V

  • RS Stock No. 783-3961
  • Mfr. Part No. 61-957
  • Warranty 2 Year
  • Brand Ideal
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Ideal 61-957 SureTrace™ Open/Closed Circuit Tracer Kit

Troubleshooting test tool kit for finding circuit breakers and hidden wire problems in electrical wiring installations. Identifies breakers/fuses with CertainCircuit™ detection, finds open and shorts circuits and trace wires behind walls and underground.

TR-955 Transmitter

Tests energized circuits up to 600V AC/DC
Tests de-energized circuits
Injects a powerful signal into the circuit
Can be used on GFCI protected equipment
Does not affect sensitive equipment on the circuit
Indicated presence of AC/DC voltage
Low battery indicator

RC-959 Receiver

Super bright OLED display
Rotating display (in 90° increments)
Displays 0-99 numeric signal strength
Four modes of sensitivity
CertainCircuit™ detection
Peak detecting bar graph
Audible indication (pitch/tone)
Displays battery life remaining

Note

Supplied with UK mains connection lead for cable tracing

Standards

CAT III 600V

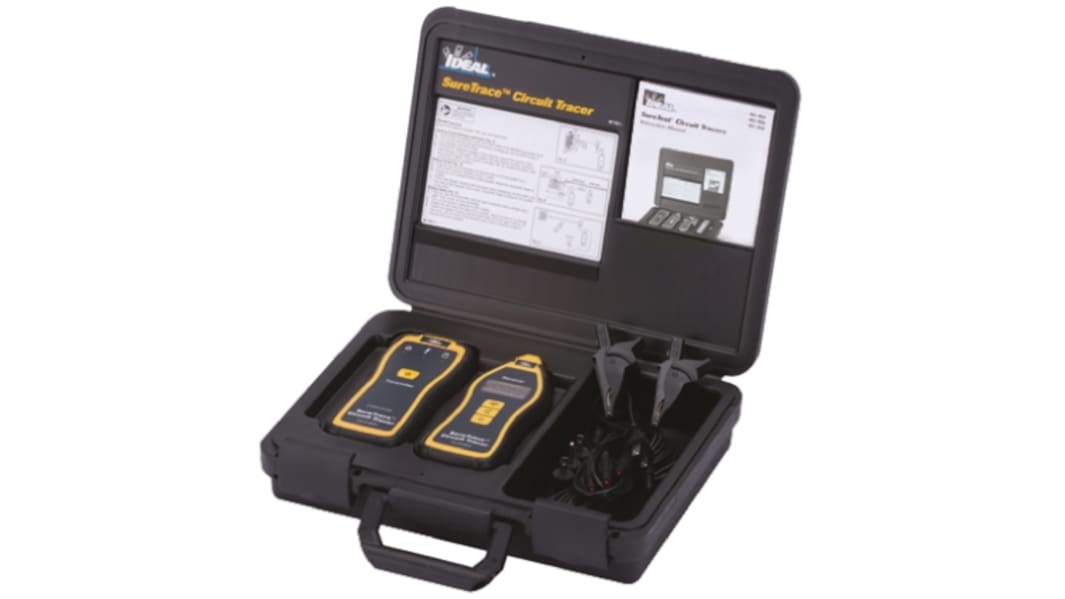

Supplied with

Transmitter TR-955, Receiver RC-959, Tracer Test Lead Set TL-956, Hard Carrying Case C-957, Batteries, Instruction Manual

Specifications
Attribute Value
Display Type OLED
Meter Type Cable Tracer, Fuse Finder
Safety Category CAT III 600 V
Battery Life 6 (Transmitter - Short Circuit Tracing) h, 20 (Receiver) h, 25 (Transmitter-Open Circuit Testing) h
Battery Type AA
Power Source Battery
Includes (4) Batteries, C-955 Hard Carrying Case, RC-956 Receiver, TL-956 Tracer Test Lead Set, TR-955 Transmitter, User Manual
Maximum Frequency 32.768kHz
Maximum Operating Temperature +50°C
Maximum Safe Working Voltage 600V
Minimum Operating Temperature 0°C
Minimum Safe Working Voltage 0V
Model Number p Sure Trace 957
Safety Category Voltage 600V
Safety Category Level CAT III
4 In stock for FREE next working day delivery
Price Each
£ 686.65
(exc. VAT)
£ 823.98
(inc. VAT)
Units
Per unit
1 +
£686.65
