TE Connectivity Expandable Braided Nickel Plated Copper Alloy Cable Sleeve, 4mm Diameter, 10m Length, RayBraid Series
- RS Stock No.:
- 887-2853
- Mfr. Part No.:
- RAY-103-4.0(10)
- Brand:
- TE Connectivity
180 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each
£13.381
(exc. VAT)
£16.057
(inc. VAT)
| Units | Per unit | Per Reel* |
| 10 + | £13.381 | £133.81 |
| *price indicative | ||
- RS Stock No.:
- 887-2853
- Mfr. Part No.:
- RAY-103-4.0(10)
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

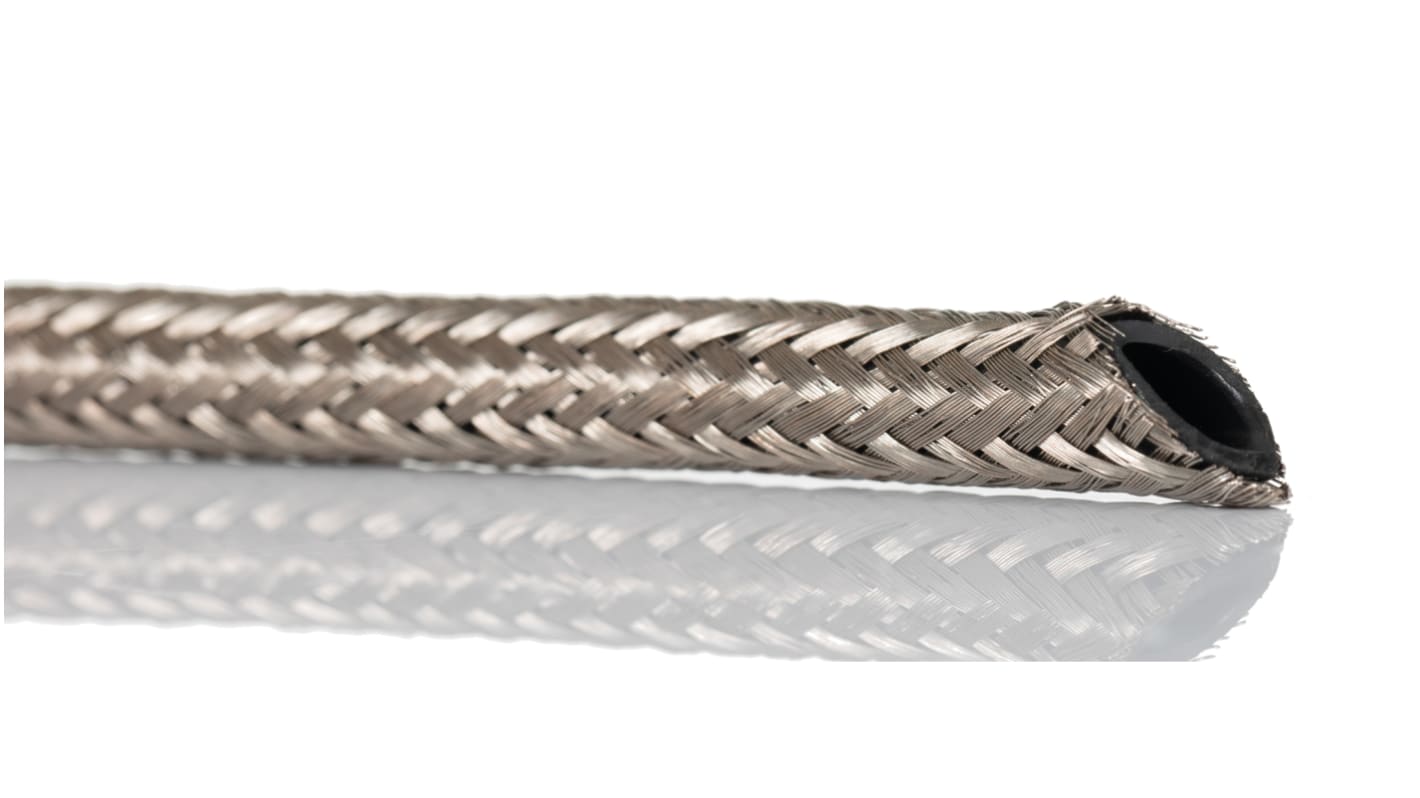

Raybraid Plated Copper Braid
Braided sleeving designed for the electrical screening of wire bundles, protecting them against interference and physical damage. Raybraid is supplied on a tube former which facilitates assembly and is more robust than braid supplied in flattened form. The Ray-101 range has a tinned copper screen and Ray-103 has a nickel plated copper screen for use in harsh environments and in high temperatures.
Features and benefits
• Provides EMC screen for wires and cables
• Easy removal from PVC former
• Min. 93%, max. 100% optical coverage
• Highly usable expansion ratio (min 2:1)
• Tin-plated copper or Nickel-plated copper sleeving available
• Available in a wide range of sizes to cover 2.5 to 40mm diameters
Specifications
Attribute | Value |
|---|---|
| Sleeve Diameter | 4mm |
| Material | Nickel Plated Copper Alloy |
| Sleeve Length | 10m |
| Braided | Yes |
| Expandable | Yes |
| Minimum Cable Diameter | 3.5mm |
| Maximum Cable Diameter | 7.5mm |
| Shielded | Yes |
| Standards Met | WSD 1922 (Performance Standard) |
| Series | RayBraid |
- RS Stock No.:
- 887-2853
- Mfr. Part No.:
- RAY-103-4.0(10)
- Brand:
- TE Connectivity
