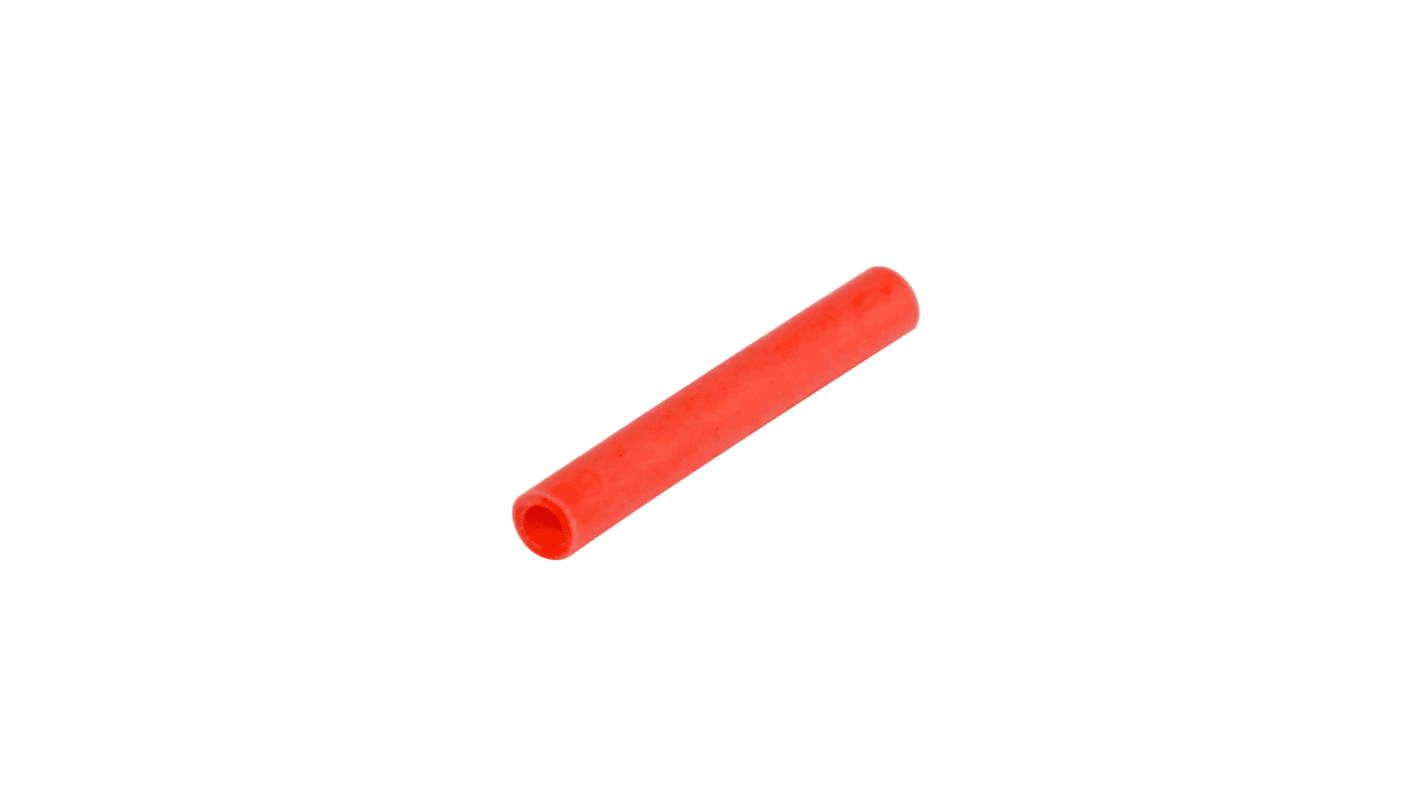

SES Expandable Silicone Rubber Red Cable Sleeve, 1.75mm Diameter, 20mm Length

  • RS Stock No. 303-1805
  • Mfr. Part No. 02050022007
  • Brand SES
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

SILAVIA® 200°C halogen-free sleeves

Silicone sleeves in various colours that retain their properties in extreme temperatures.
Resistant to ozone, light and weather influences.
Resistant to solvents and most chemicals.

Specifications
Attribute Value
Sleeve Diameter 1.75mm
Colour Red
Material Silicone Rubber
Sleeve Length 20mm
Expandable Yes
Minimum Cable Diameter 1.9mm
Maximum Cable Diameter 2.5mm
Minimum Operating Temperature -80°C
Maximum Operating Temperature +200°C
Dielectric Strength 18kV/mm
Wall Thickness 0.5mm
Available to back order for despatch 23/12/2019
Price 1 Bag of 100
£ 5.68
(exc. VAT)
£ 6.82
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 - 14
£5.68
£0.057
15 - 49
£5.39
£0.054
50 +
£5.22
£0.052
*price indicative
