- RS Stock No.:
- 170-3081
- Brand:
- Alpha Wire
5 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 30 Metre(s)
£108.85
(exc. VAT)
£130.62
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £108.85 | £3.628 |
*price indicative |
- RS Stock No.:
- 170-3081
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details

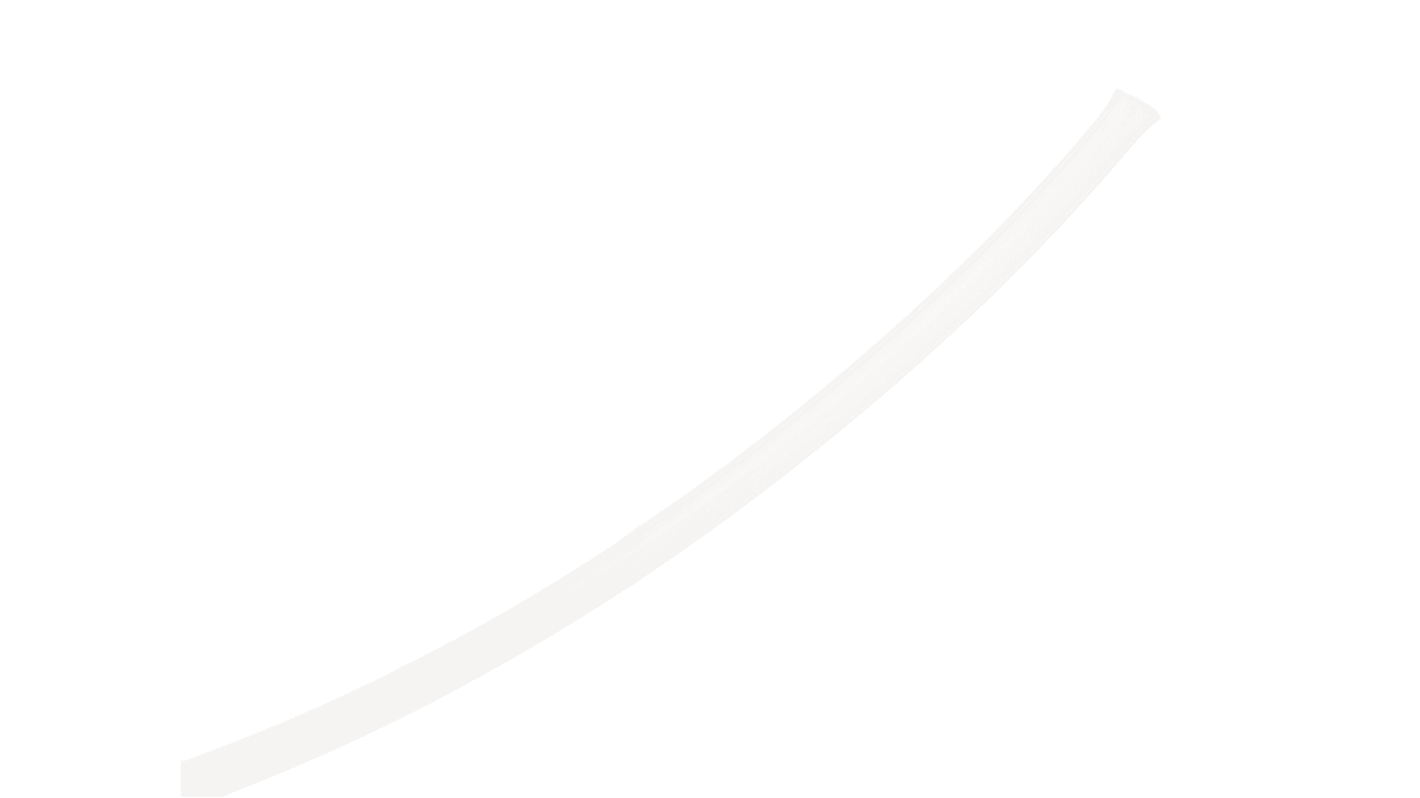

PTFE sleeves
The Alpha Wire PTFE sleeves are approved by AMS3653 and ASTM D 3295 and are recognised for their impressive maintainance of strength and flexibility at high temperatures. The sleeves are thoroughly insulated, allowing for continuious use up to +260 °C. As well as this, they are also waterproof, fire-retardant, not affected by mould and have excellent dielectric resistance at high frequencies.
Approvals
AMS3653 and ASTM D 3295
Specifications
Attribute | Value |
---|---|
Sleeve Diameter | 1.63mm |
Colour | Natural |
Material | PTFE |
Sleeve Length | 30m |
Minimum Cable Diameter | 1.63mm |
Maximum Cable Diameter | 1.88mm |
Minimum Operating Temperature | -75°C |
Maximum Operating Temperature | +260°C |
Dielectric Strength | 55.1kV/mm |
Wall Thickness | 0.41mm |
