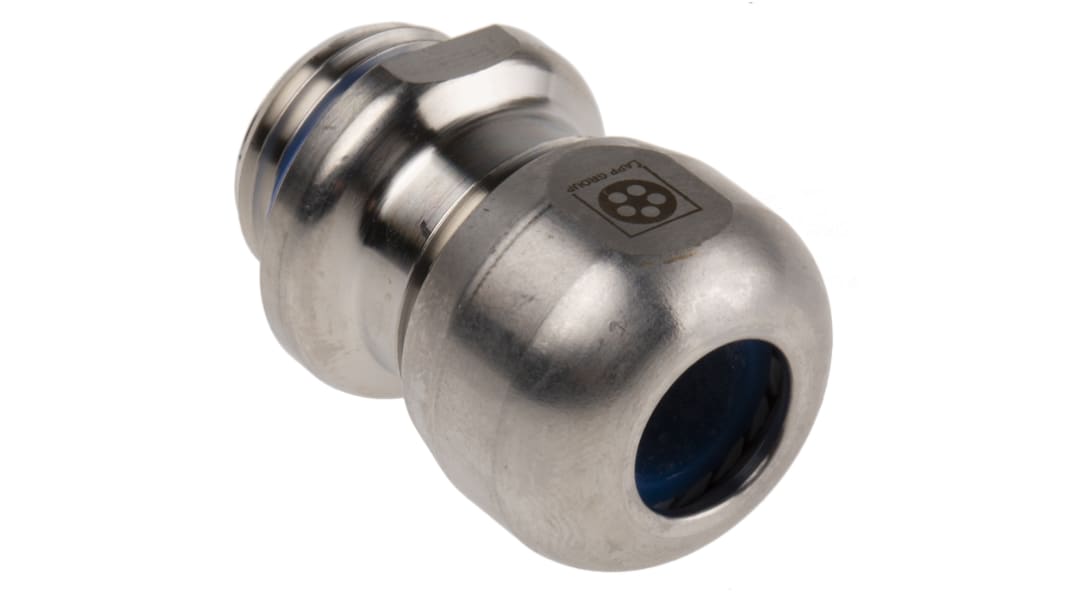

Lapp SKINTOP Series Metallic Stainless Steel Cable Gland, M16 Thread, 6mm Min, 10mm Max, IP69K
- RS Stock No.:
- 796-0035
- Mfr. Part No.:
- 53806740
- Brand:
- Lapp
75 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£57.756
(exc. VAT)
£69.307
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | £57.756 | £288.78 |
| *price indicative | ||
- RS Stock No.:
- 796-0035
- Mfr. Part No.:
- 53806740
- Brand:
- Lapp
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
LAPP Stainless Steel Cable Gland, 6 to 10mm Cable Diameter Range, M16 Thread - SKINTOP Series - 53806740
Looking for reliable protection for your electrical wires in industrial settings? Go for this robust cable gland from LAPP. It's made from stainless steel, which is resistant to corrosion for long-term performance. As this material also has a smooth surface that repels bacteria and is easy to clean, the cable gland's a hygienic choice for the food production industry.
Features & Benefits
• IP68 rating to withstand dust and immersion in up to 1.5m of water for 30 minutes
• Silicone O-rings block out dust and contaminants for an airtight system
• Optimal strain relief prevents the cables from twisting at angles that can damage them, improving their lifespan
• Silicone O-rings block out dust and contaminants for an airtight system
• Optimal strain relief prevents the cables from twisting at angles that can damage them, improving their lifespan
Applications
• Offshore platforms
• Pharmaceutical production plants
• Data server banks
• Pharmaceutical production plants
• Data server banks
What's the temperature tolerance of this cable gland?
The cable gland has an operating temperature range of -40°C to +100°C, making it safe for use in harsh environments.
Specifications
Attribute | Value |
|---|---|
| Thread Size | M16 |
| Maximum Cable Diameter | 10mm |
| Minimum Cable Diameter | 6mm |
| Material | Stainless Steel |
| Colour | Metallic |
| Series | SKINTOP |
| IP Rating | IP69K |
| Locknut Included | No |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | CE, RoHS Compliant |
| Operating Temperature Range | -40 → +100 °C |
| Reference | SKINTOP INOX |
