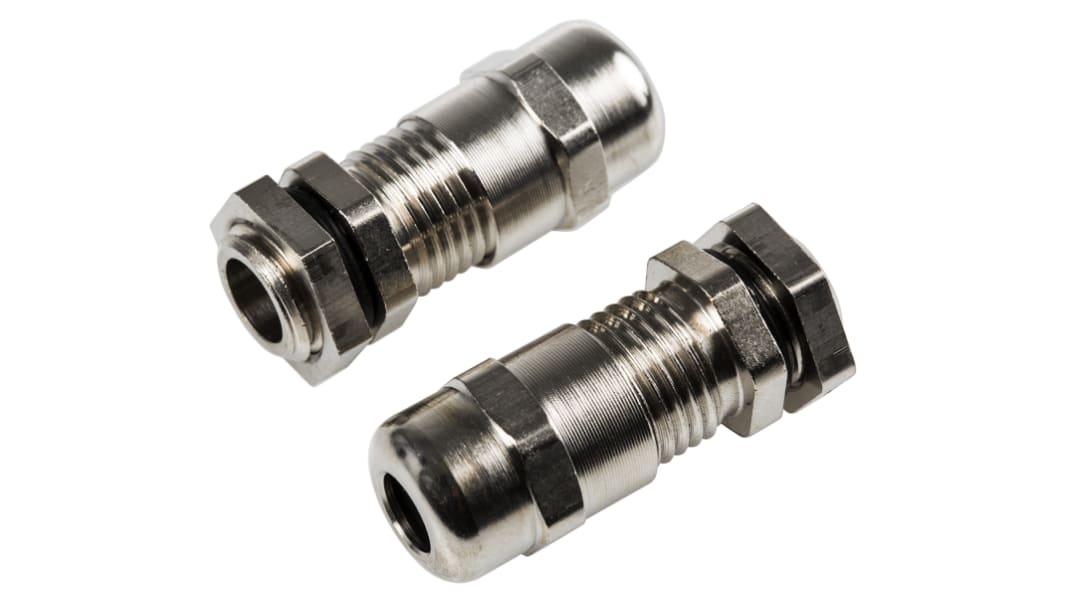

SIB WADI-TEC Series Metallic Nickel Plated Brass Cable Gland, M12 Thread, 4mm Min, 6.5mm Max, IP68
- RS Stock No.:
- 564-905
- Mfr. Part No.:
- R1221200R
- Brand:
- SIB
8 In stock - FREE next working day delivery available
31 available from Europe for delivery within 1 working day(s).
Added
Price 1 Box of 5
£17.83
(exc. VAT)
£21.40
(inc. VAT)
| Box(es) | Per Box | Per unit* |
| 1 - 4 | £17.83 | £3.566 |
| 5 - 9 | £16.96 | £3.392 |
| 10 + | £16.03 | £3.206 |
| *price indicative | ||
- RS Stock No.:
- 564-905
- Mfr. Part No.:
- R1221200R
- Brand:
- SIB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
SIB WADI-TEC ISO Cable Glands for EMC protection
A range of IP68, nickel plated brass cable glands for EMC protection providing 360° contact from SIB.
The cable glands are available in thread sizes from M12 to M32 covering a range of different cable diameters.
Standards
EN 50262
Specifications
Attribute | Value |
|---|---|
| Thread Size | M12 |
| Maximum Cable Diameter | 6.5mm |
| Minimum Cable Diameter | 4mm |
| Material | Nickel Plated Brass |
| Colour | Metallic |
| Series | WADI-TEC |
| IP Rating | IP68 |
| Locknut Included | Yes |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +120 °C |
