HellermannTyton Cable Clamp Black Screw Nylon Ratchet P Clamp, 19.5mm Max. Bundle

  • RS Stock No. 144-2177
  • Mfr. Part No. 151-01440 RCB180SM8-PA66HIRHSUV/ST/ZN-BK (280)
  • Brand HellermannTyton
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

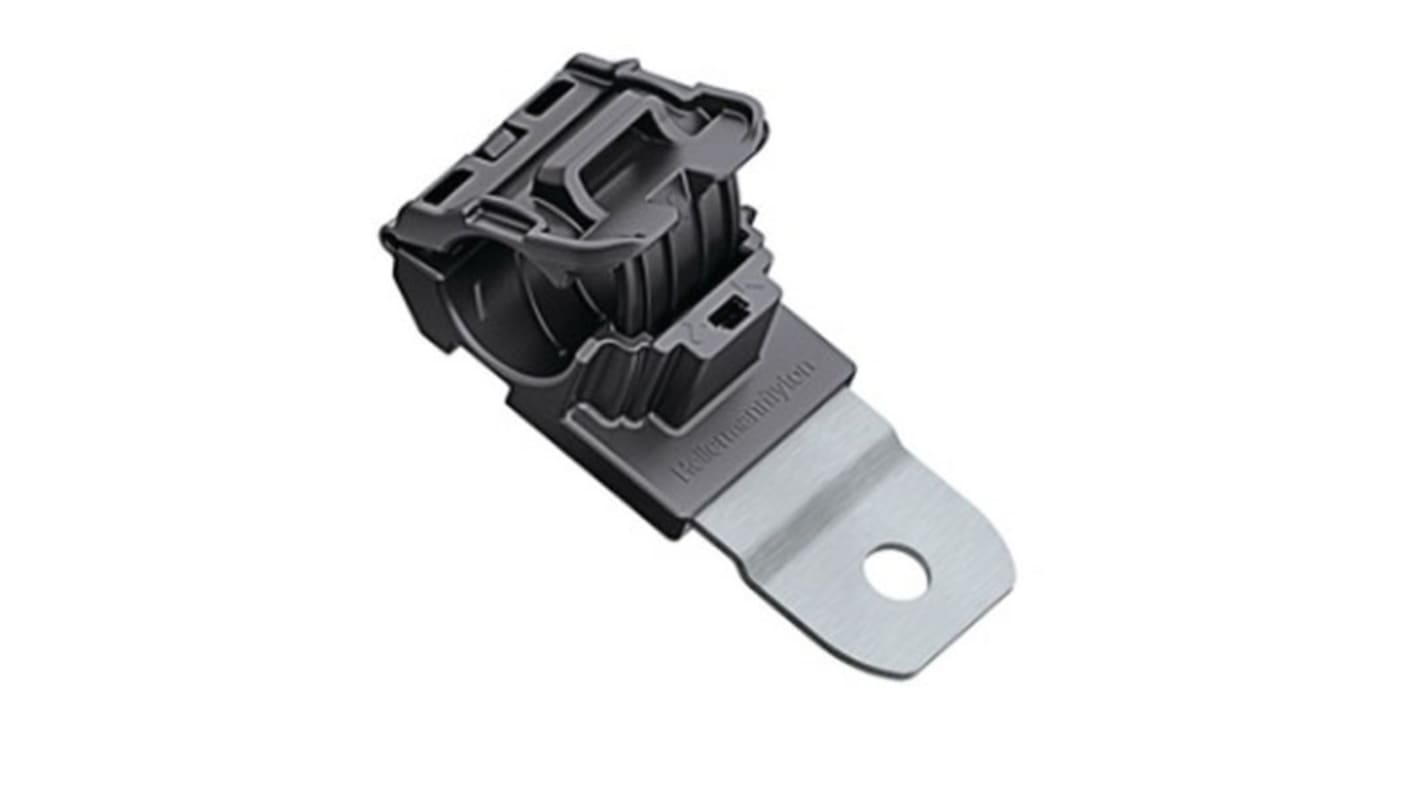

HellermannTyton Ratchet P-Clamps

The Ratchet P Clamp family provides an excellent solution for the management of wires, cables and hoses. The robust and durable design combined with its tough material, makes it ideal for heavy-duty applications both in- and outdoors. This adjustable P Clamp can be closed by hand to the desired diameter. It can then be released using a flat-head screwdriver, allowing for easy and non-destructive removal of cables. This feature allows the clamp to be reused without removing or replacing any fixings. The Ratchet P Clamps are available in four sizes and various mounting configurations.

Features and Benefits

• Manufactured from heat and UV stabilised PA66 that provides long-term durability • Suitable for heavy duty use both in and outdoors
• Can be pre-installed or during final assembly
• Clamp interior is designed to guide and centre the bundle to reduce pinching
• Re-open the clamp any time or quick adjustments and maintenance
• Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
• Available in 4 sizes that can be used with a wide range of diameters and configurations, reducing your part inventory
• Easily closes with just with one hand

Specifications
Attribute Value
Cable Clip/Clamp Style Ratchet P Clamp
Maximum Bundle Diameter 19.5mm
Affixing Method Screw
Material Nylon 66
Colour Black
Length 83.1mm
Width 34.9 mm
Fire Behaviour Self-extinguishing
Series RCB180SM
300 In stock for delivery within 2 working days
Price Each (In a Pack of 10)
Was £2.35
£ 1.878
(exc. VAT)
£ 2.254
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£1.878
£18.78
*price indicative
