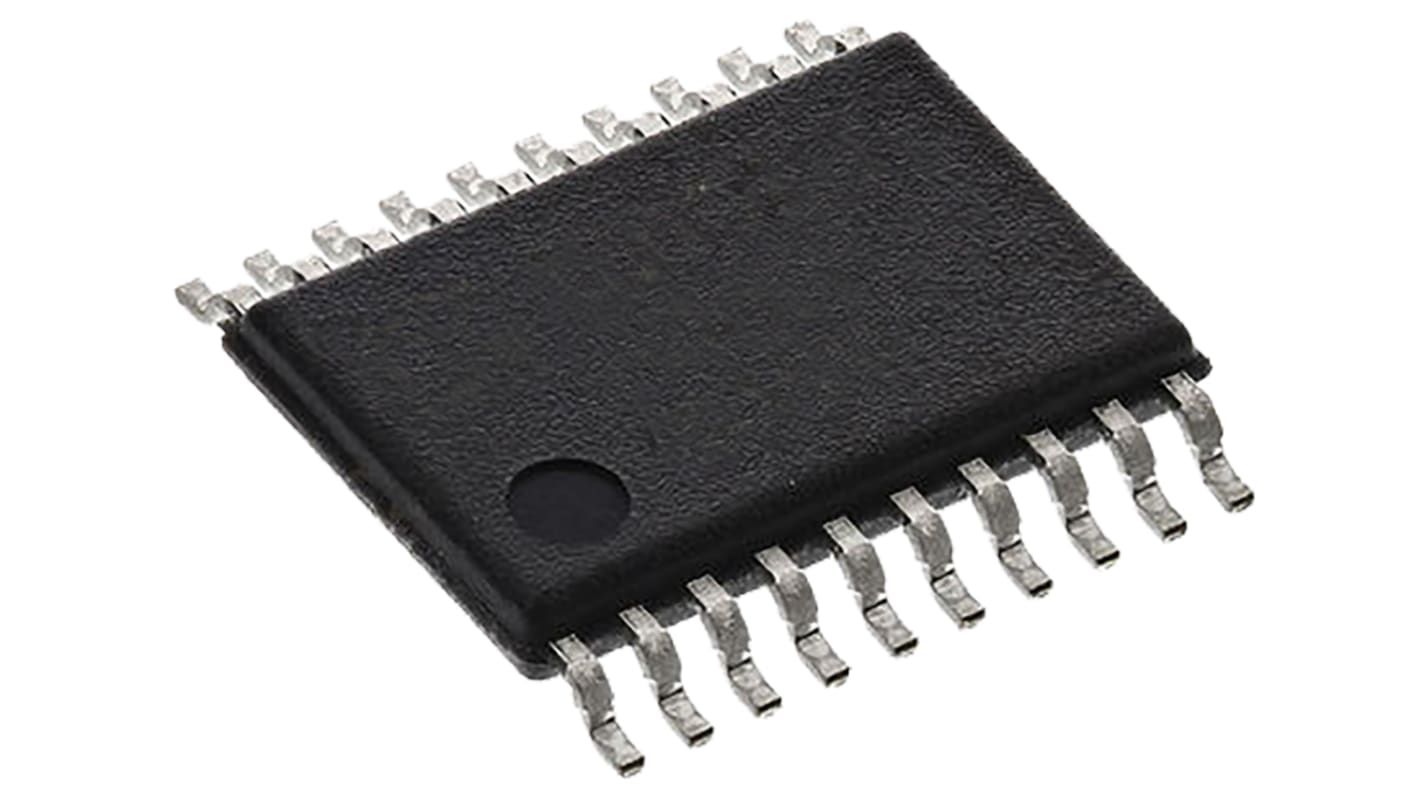

Texas Instruments SN74LVTH245APW, 1 Bus Transceiver, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 20-Pin TSSOP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74LVTH Family, Texas Instruments

High Speed Low-Voltage BiCMOS logic
Operating Voltage: 2.7 to 3.6
Bus Hold feature on inputs eliminates need for large pull-ups
Compatibility: Input LVTTL/TTL, Output LVTTL

74LVTH Family

Specifications
Attribute Value
Logic Family LVT
Logic Function Bus Transceiver
Number of Elements per Chip 1
Number of Channels per Chip 8
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type TSSOP
Pin Count 20
Input Level LVTTL
Output Level LVTTL
Maximum High Level Output Current -32mA
Maximum Low Level Output Current 64mA
Maximum Propagation Delay Time @ Maximum CL 2.3 ns @ 3.3 V
Minimum Operating Supply Voltage 2.7 V
Width 4.4mm
Maximum Operating Supply Voltage 3.6 V
Length 6.5mm
Maximum Operating Temperature +85 °C
Propagation Delay Test Condition 50pF
Dimensions 6.5 x 4.4 x 1.15mm
Minimum Operating Temperature -40 °C
Height 1.15mm
2375 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.682
(exc. VAT)
£ 0.818
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£0.682
£3.41
25 - 45
£0.542
£2.71
50 - 245
£0.482
£2.41
250 - 495
£0.418
£2.09
500 +
£0.368
£1.84
*price indicative
