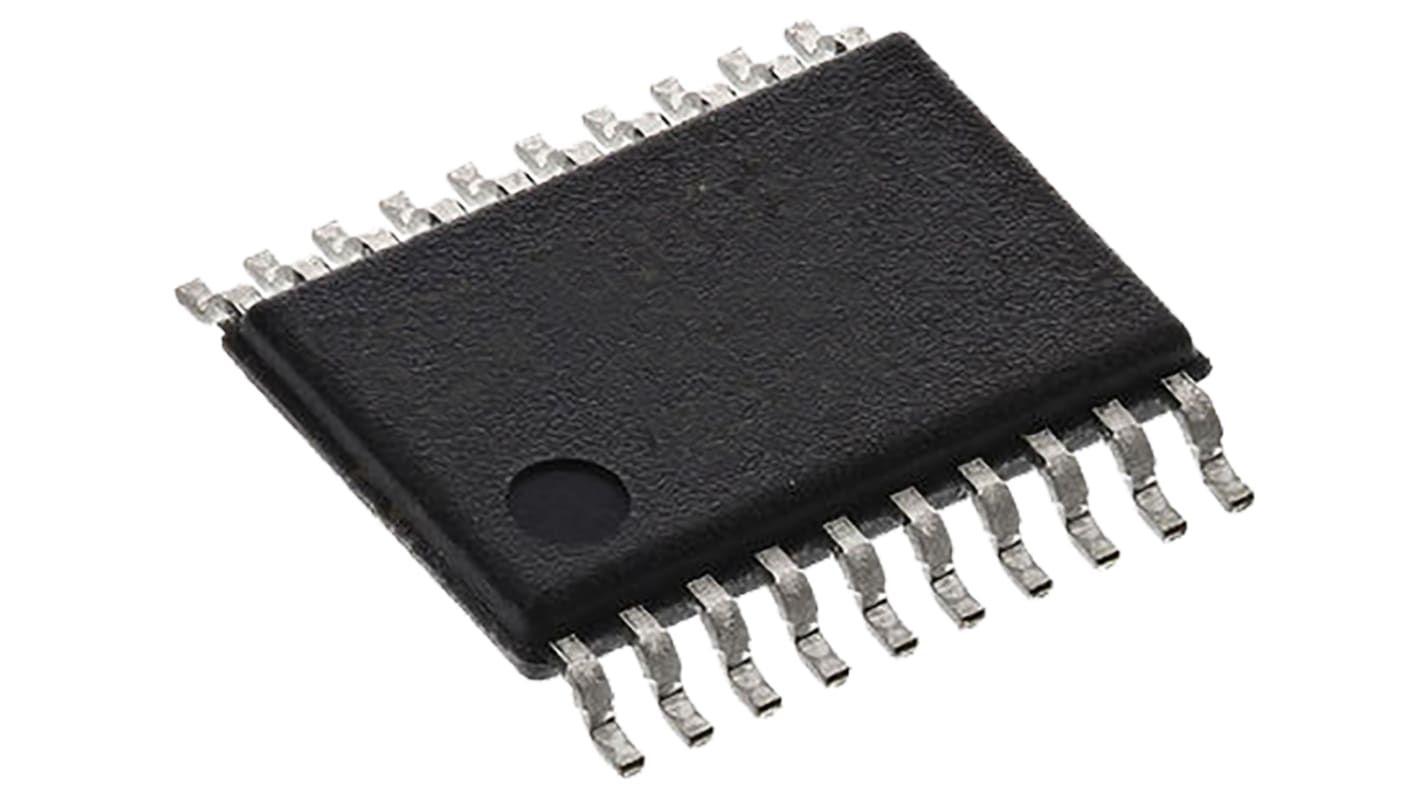

Texas Instruments SN74LV245APWR, 1 Bus Transceiver, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 20-Pin TSSOP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74LV Family, Texas Instruments

Low-Voltage CMOS logic
Operating Voltage: 2 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS

74LV Family

Specifications
Attribute Value
Logic Family LV
Logic Function Bus Transceiver
Number of Elements per Chip 1
Number of Channels per Chip 8
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type TSSOP
Pin Count 20
Input Level LVTTL
Output Level LVTTL
Maximum High Level Output Current -16mA
Maximum Low Level Output Current 16mA
Maximum Propagation Delay Time @ Maximum CL 15.9 ns @ 2.5 V
Dimensions 6.5 x 4.4 x 1.15mm
Length 6.5mm
Maximum Operating Supply Voltage 5.5 V
Maximum Operating Temperature +85 °C
Propagation Delay Test Condition 50pF
Minimum Operating Supply Voltage 2 V
Minimum Operating Temperature -40 °C
Height 1.15mm
Width 4.4mm
