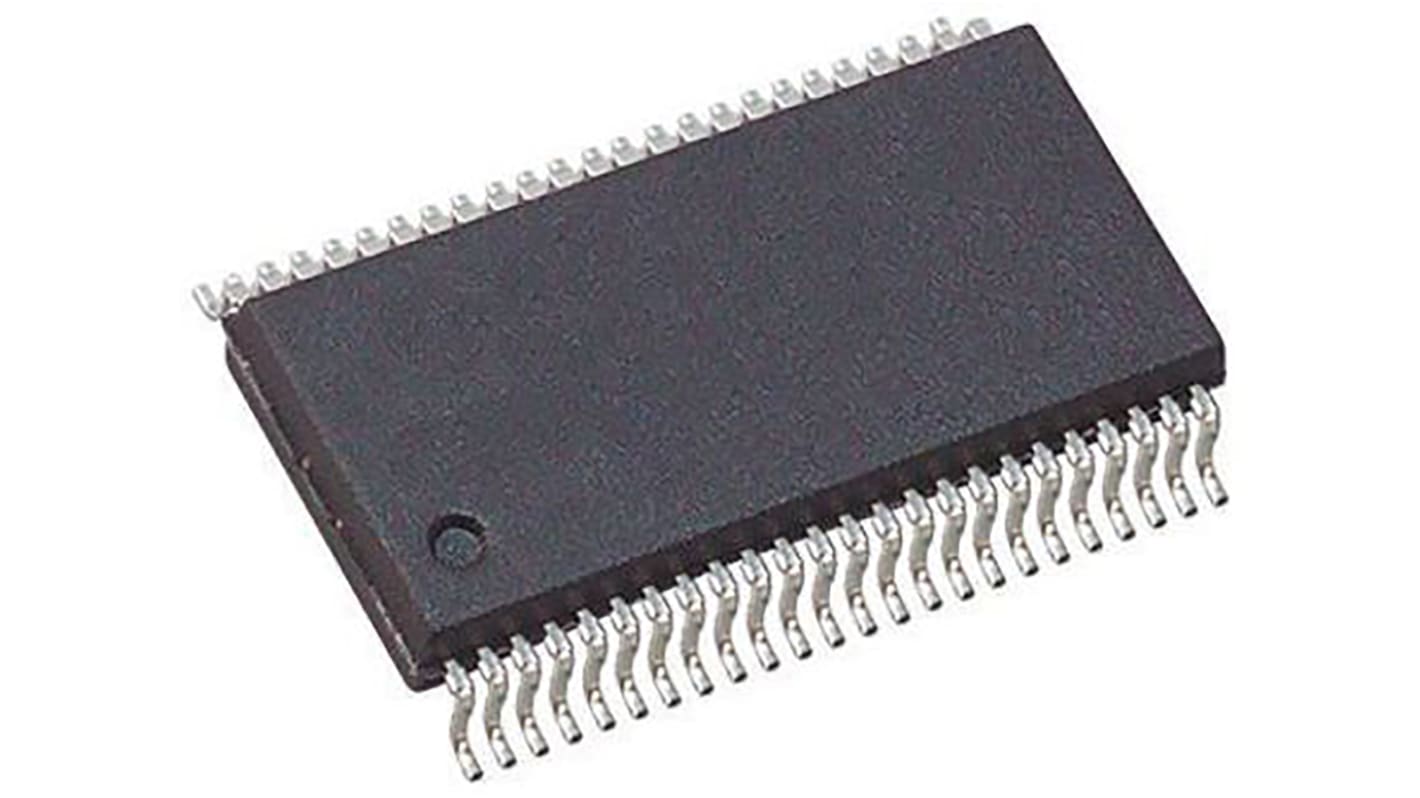

Texas Instruments SN74LVC16T245DL, Dual Bus Transceiver, Bus Transceiver, 16-Bit Non-Inverting LVTTL, 48-Pin SSOP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74LVC Family Bus Transceivers, Texas Instruments

Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

74LVC Family

Specifications
Attribute Value
Logic Family LVC
Logic Function Bus Transceiver
Number of Elements per Chip 2
Number of Channels per Chip 16
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type SSOP
Pin Count 48
Input Level LVTTL
Output Level LVTTL
Maximum High Level Output Current -32mA
Maximum Low Level Output Current 32mA
Maximum Propagation Delay Time @ Maximum CL 23.8 ns @ 1.8 V
Minimum Operating Supply Voltage 1.65 V
Maximum Operating Supply Voltage 5.5 V
Minimum Operating Temperature -40 °C
Dimensions 15.88 x 7.49 x 2.59mm
Height 2.59mm
Propagation Delay Test Condition 15pF
Maximum Operating Temperature +85 °C
Width 7.49mm
Length 15.88mm
Available to back order for despatch when stock is available
Price Each (In a Tube of 25)
£ 1.733
(exc. VAT)
£ 2.08
(inc. VAT)
Units
Per unit
Per Tube*
25 +
£1.733
£43.325
*price indicative
