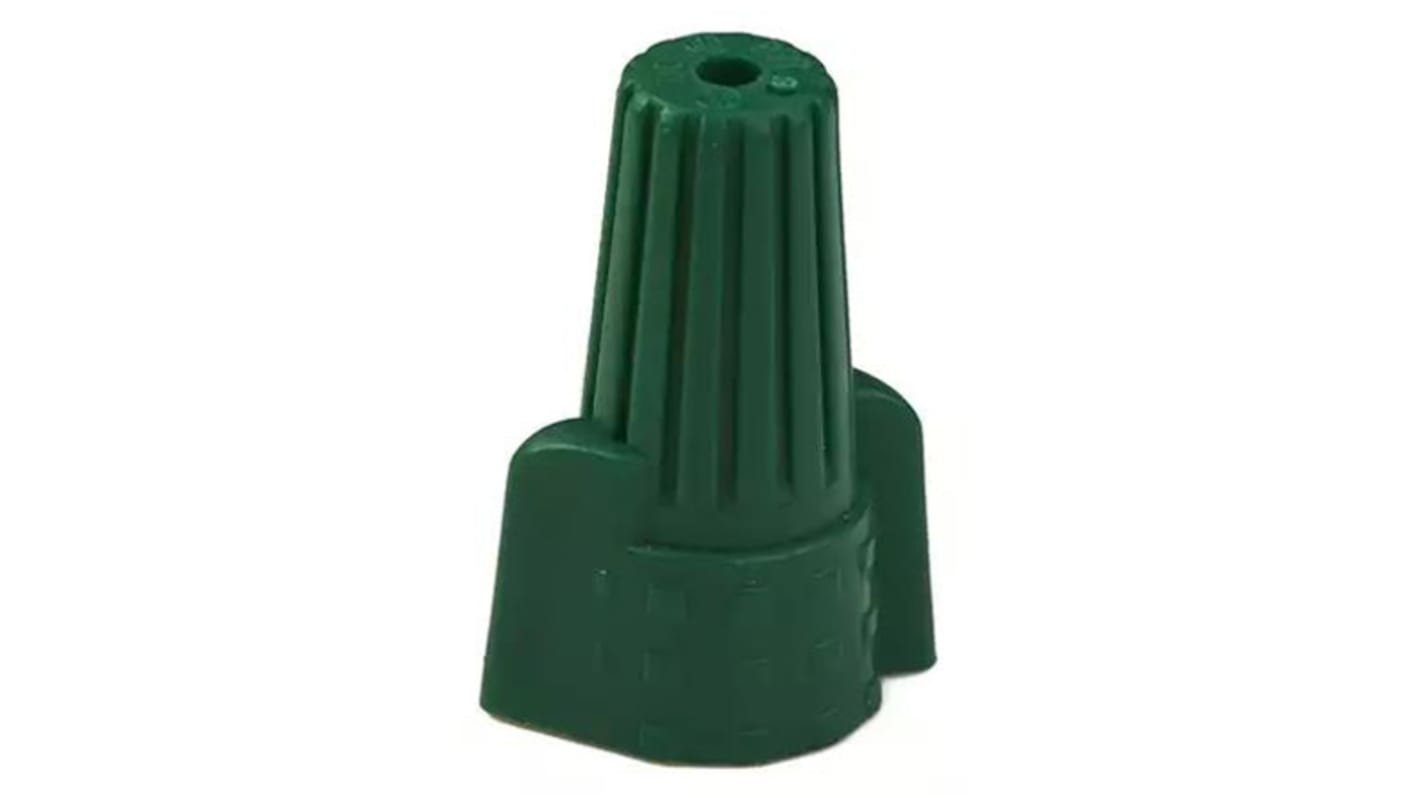

TE Connectivity, GroundGrip Insulated Twist Bullet Connector, 14AWG to 10AWG, 20.2mm Bullet diameter, Green

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity GroundGrip Connectors

GroundGrip connectors or splices designed for making positive ground connections and bonding non-metallic sheathed cable. The GroundGrip twist-on splices have square-wire spring threads which provide a positive grip, moulded 'wings' to enable a secure connection. Made from UL 94V-2 green flame retardant thermoplastic with a maximum operating temperature of 105°C. The maximum rated voltage for these GroundGrip splices is 600 V for building wiring and 1000 V maximum in light fixtures, luminaries and signs. These green splices accept a general wire combination range of 14 AWG to 10 AWG (2 #14 min, 5 #12 max). To be used with copper to copper connections only.

Standards

UL 467, CSA 22.2 No. 188

Specifications
Attribute Value
Series GroundGrip
Insulation Insulated
Insulation Material Thermoplastic
Minimum Wire Size AWG 14AWG
Maximum Wire Size AWG 10AWG
Bullet Diameter 20.2mm
Colour Green
800 In stock - FREE next working day delivery available
Price Each (In a Bag of 100)
£ 0.049
(exc. VAT)
£ 0.059
(inc. VAT)
Units
Per unit
Per Bag*
100 +
£0.049
£4.90
*price indicative
