- RS Stock No.:
- 215-5775
- Mfr. Part No.:
- CY2305SXC-1H
- Brand:
- Infineon
- RS Stock No.:
- 215-5775
- Mfr. Part No.:
- CY2305SXC-1H
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details

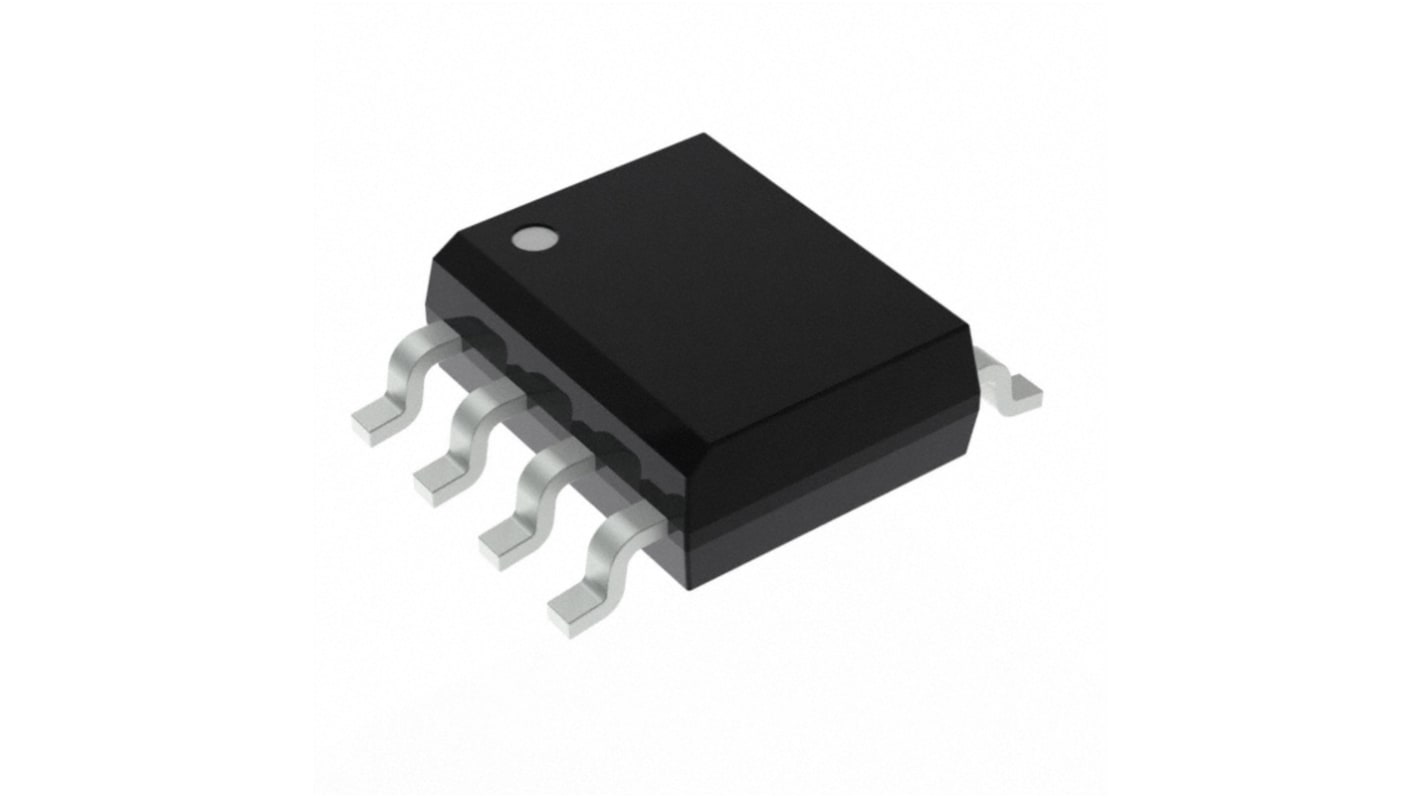

The Cypress Semiconductor CY2309 is a low-cost 3.3 V zero delay buffer designed to distribute high speed clocks and is available in a 16-pin SOIC or TSSOP package. The CY2305 is an 8-pin version of the CY2309. It accepts one reference input, and drives out five low skew clocks.
10 MHz to 100/133 MHz operating range, compatible with CPU
and PCI bus frequencies
Zero input-output propagation delay
60-ps typical cycle-to-cycle jitter (high drive)
and PCI bus frequencies
Zero input-output propagation delay
60-ps typical cycle-to-cycle jitter (high drive)
Specifications
Attribute | Value |
---|---|
Logic Function | Buffer |
Number of Channels | 1 |
Package Type | SOIC |
Pin Count | 8 |
