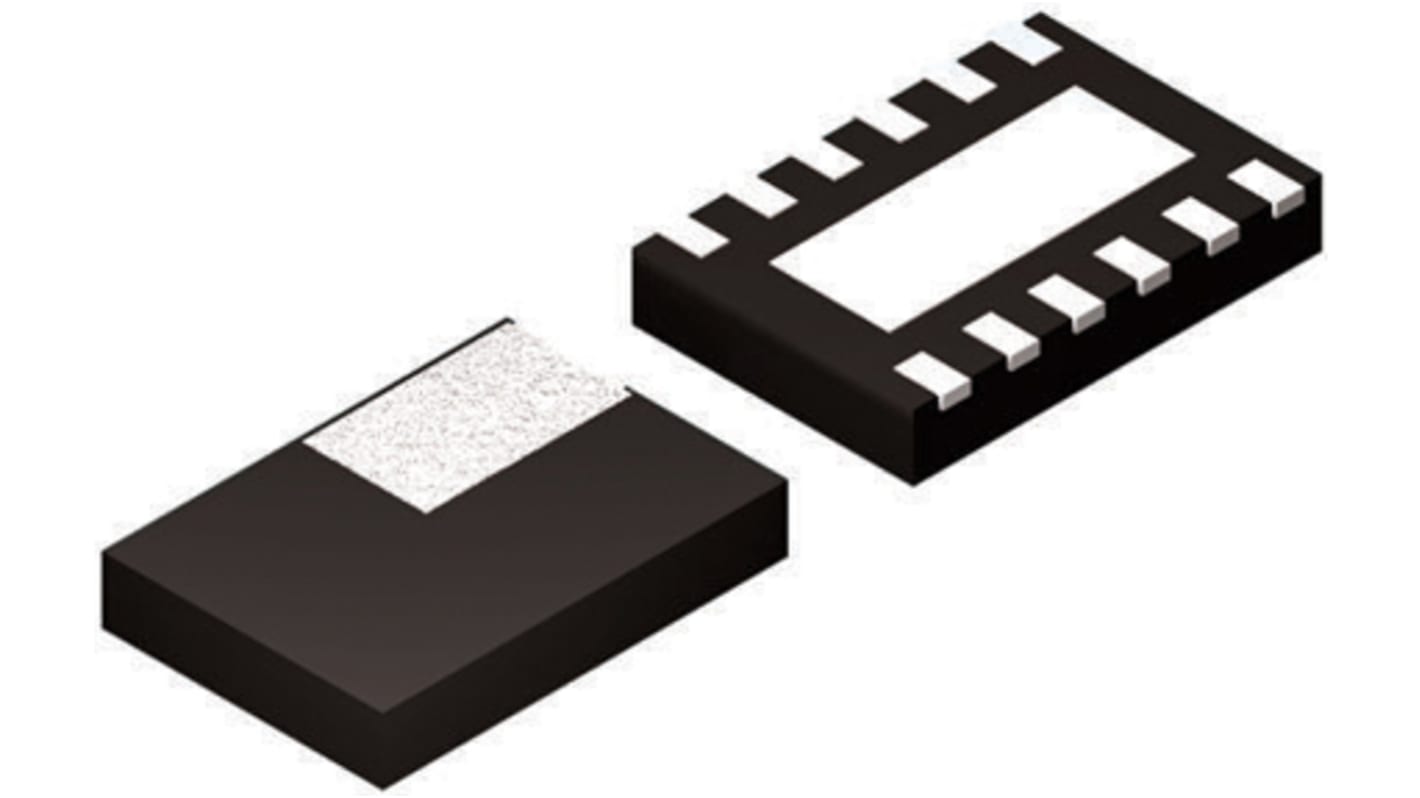

Texas Instruments, TPS62740DSST Step-Down Switching Regulator, 1-Channel 300mA Adjustable 12-Pin, WSON
- RS Stock No.:
- 825-7018
- Mfr. Part No.:
- TPS62740DSST
- Brand:
- Texas Instruments
250 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£1.145
(exc. VAT)
£1.374
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £1.145 | £2.29 |
| 10 - 18 | £1.085 | £2.17 |
| 20 - 48 | £0.98 | £1.96 |
| 50 - 98 | £0.88 | £1.76 |
| 100 + | £0.84 | £1.68 |
| *price indicative | ||
- RS Stock No.:
- 825-7018
- Mfr. Part No.:
- TPS62740DSST
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) up to 6V Input Max., TPS Series, Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 300mA |
| Maximum Output Voltage | 3.3 V |
| Regulator Function | Buck |
| Minimum Output Voltage | 1.8 V |
| Minimum Input Voltage | 2.2 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 12 |
| Maximum Switching Frequency | 2 MHz |
| Package Type | WSON |
| Line Regulation | 0 %/V |
| Load Regulation | 0.001 %/mA |
| Dimensions | 3.1 x 2.1 x 0.75mm |
| Width | 2.1mm |
| Height | 0.75mm |
| Minimum Operating Temperature | -40 °C |
| Length | 3.1mm |
| Maximum Operating Temperature | +85 °C |
