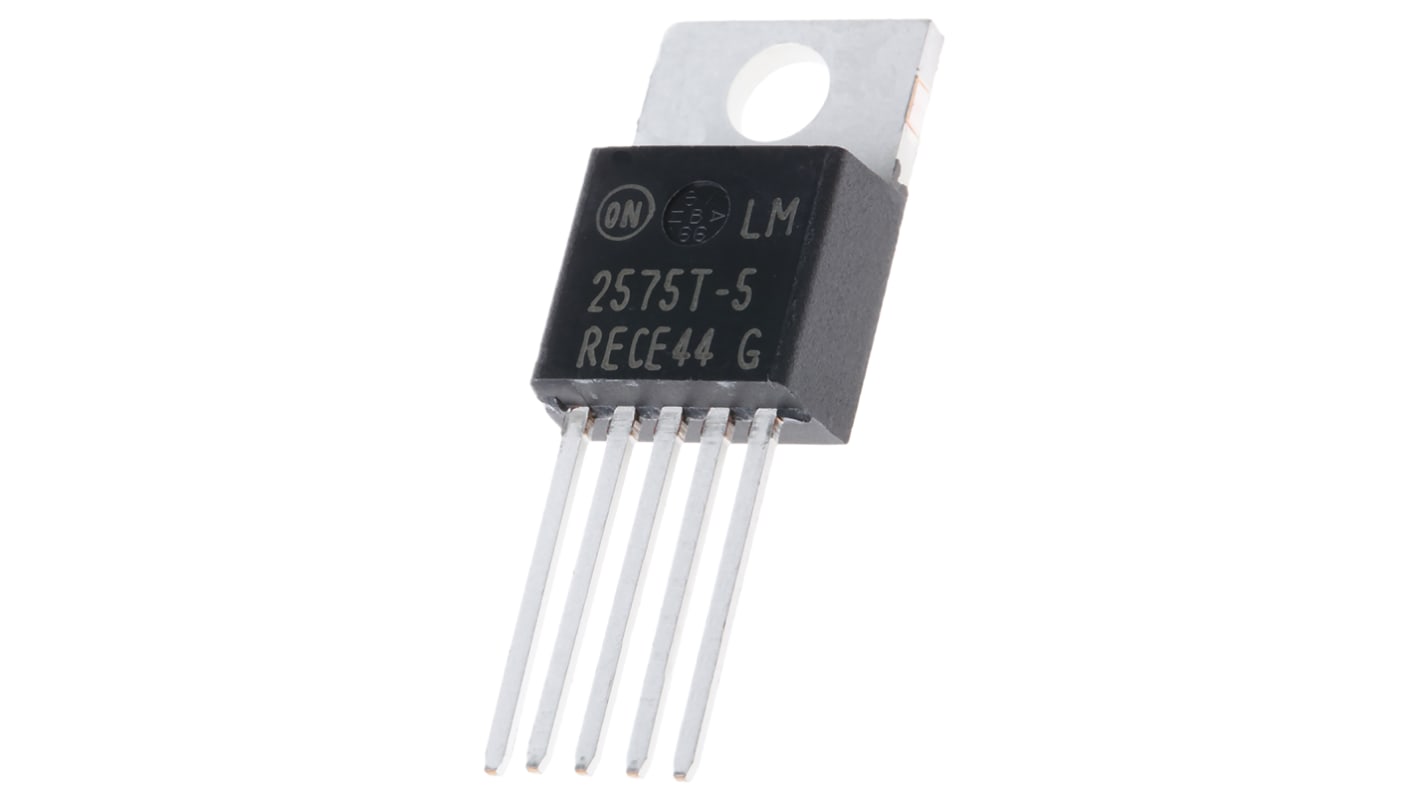

onsemi, LM2575T-5G Step-Down Switching Regulator, 1-Channel 1A 5-Pin, TO-220
- RS Stock No.:
- 689-9932
- Mfr. Part No.:
- LM2575T-5G
- Brand:
- onsemi
Available to back order for despatch 24/06/2024
Added
Price Each
£2.12
(exc. VAT)
£2.54
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.12 |
| 10 - 19 | £1.80 |
| 20 - 49 | £1.73 |
| 50 - 99 | £1.64 |
| 100 + | £1.48 |
- RS Stock No.:
- 689-9932
- Mfr. Part No.:
- LM2575T-5G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Switching Regulators, Step-Down DC-DC Converters, ON Semiconductor
Current mode and voltage mode DC-DC Converters for buck (Step-down), boost (step-up) and flyback applications.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 5.25 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 4.75 V |
| Minimum Input Voltage | 4.75 V |
| Maximum Input Voltage | 40 V |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Maximum Switching Frequency | 52 kHz |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Length | 10.54mm |
| Dimensions | 10.54 x 4.57 x 9.27mm |
| Width | 4.57mm |
| Maximum Operating Temperature | +125 °C |
| Efficiency | 77% |
| Minimum Operating Temperature | -40 °C |
| Height | 9.27mm |
