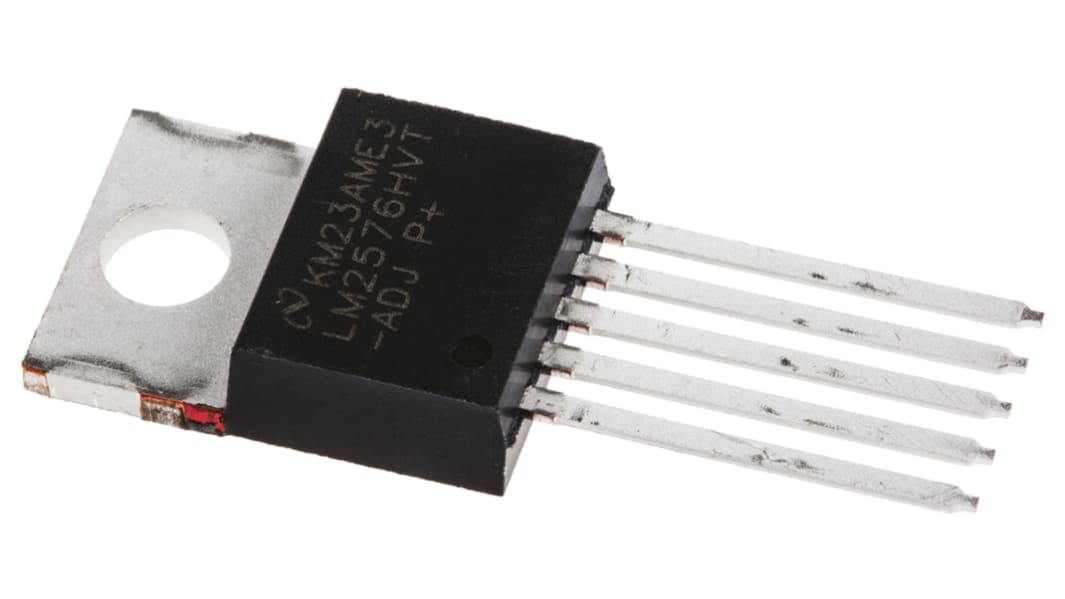

Texas Instruments, LM2576HVT-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 3A Adjustable 5-Pin, TO-220
- RS Stock No.:
- 533-3181
- Mfr. Part No.:
- LM2576HVT-ADJ/NOPB
- Brand:
- Texas Instruments
54 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.92
(exc. VAT)
£7.10
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £5.92 |
| 10 - 14 | £5.81 |
| 15 - 19 | £5.62 |
| 20 - 24 | £5.57 |
| 25 + | £5.50 |
- RS Stock No.:
- 533-3181
- Mfr. Part No.:
- LM2576HVT-ADJ/NOPB
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
SIMPLE SWITCHER® Step-Down Regulators, LM257x Series
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 57 V |
| Regulator Function | Buck Controller, Inverting |
| Minimum Output Voltage | 1.23 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 60 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 58 kHz |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Efficiency | 77% |
| Dimensions | 10.16 x 4.7 x 8.89mm |
| Height | 8.89mm |
| Minimum Operating Temperature | -40 °C |
| Length | 10.16mm |
| Maximum Operating Temperature | +125 °C |
| Width | 4.7mm |
