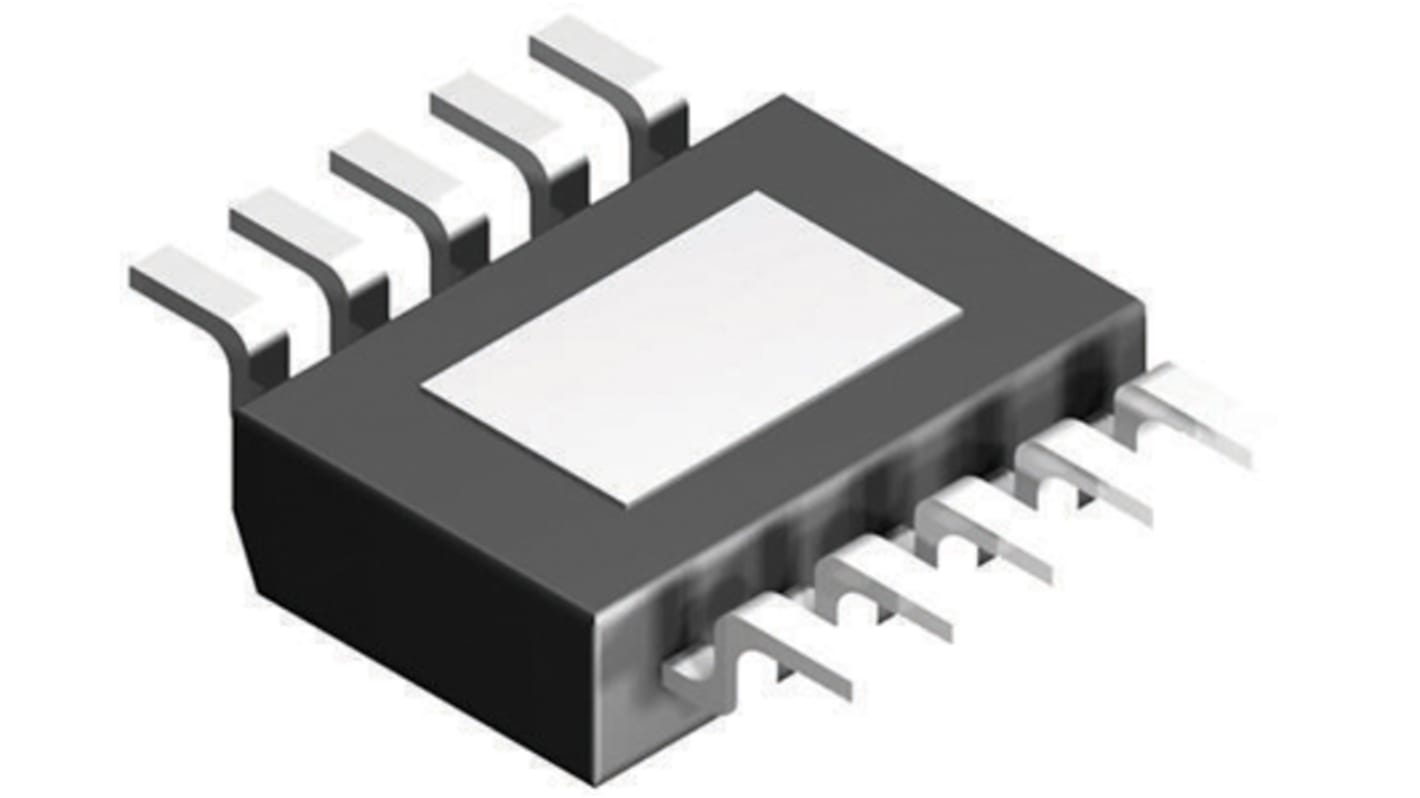

Texas Instruments, TPS62046DGQStep-Down Switching Regulator, 1-Channel 1.2A 10-Pin, HTSSOP
- RS Stock No.:
- 517-0457
- Mfr. Part No.:
- TPS62046DGQ
- Brand:
- Texas Instruments
Discontinued product
- RS Stock No.:
- 517-0457
- Mfr. Part No.:
- TPS62046DGQ
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) up to 6V Input Max., TPS Series, Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 1.2A |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 6 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 1250 kHz |
| Pin Count | 10 |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Line Regulation | 0 %/V |
| Load Regulation | 0 %/mA |
| Width | 3mm |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Efficiency | 95% |
| Height | 1.02mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 1.02mm |
