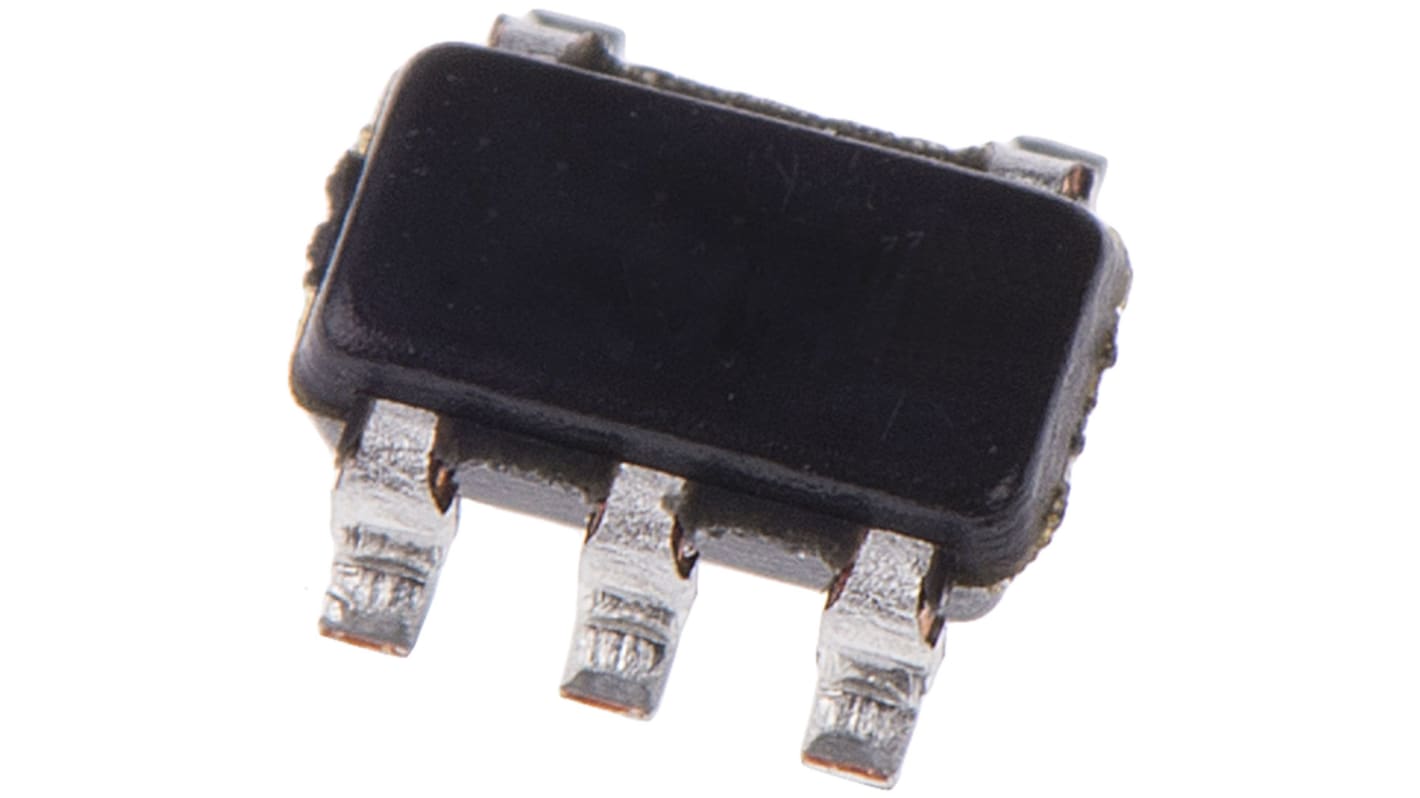

Texas Instruments, TPS62240DDCTStep-Down Switching Regulator, 1-Channel 300mA Adjustable 5-Pin, SOT-23
- RS Stock No.:
- 162-5958
- Mfr. Part No.:
- TPS62240DDCT
- Brand:
- Texas Instruments
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (On a Reel of 250)
£0.402
(exc. VAT)
£0.482
(inc. VAT)
| Units | Per unit | Per Reel* |
| 250 + | £0.402 | £100.50 |
| *price indicative | ||
- RS Stock No.:
- 162-5958
- Mfr. Part No.:
- TPS62240DDCT
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) up to 6V Input Max., TPS Series, Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 300mA |
| Maximum Output Voltage | 6 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 2 V |
| Maximum Input Voltage | 6 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 2250 kHz |
| Pin Count | 5 |
| Package Type | SOT-23 |
| Switching Regulator | Yes |
| Load Regulation | -0.5 %/A |
| Dimensions | 2.9 x 1.6 x 0.87mm |
| Length | 2.9mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.6mm |
| Height | 0.87mm |
| Maximum Operating Temperature | +85 °C |
