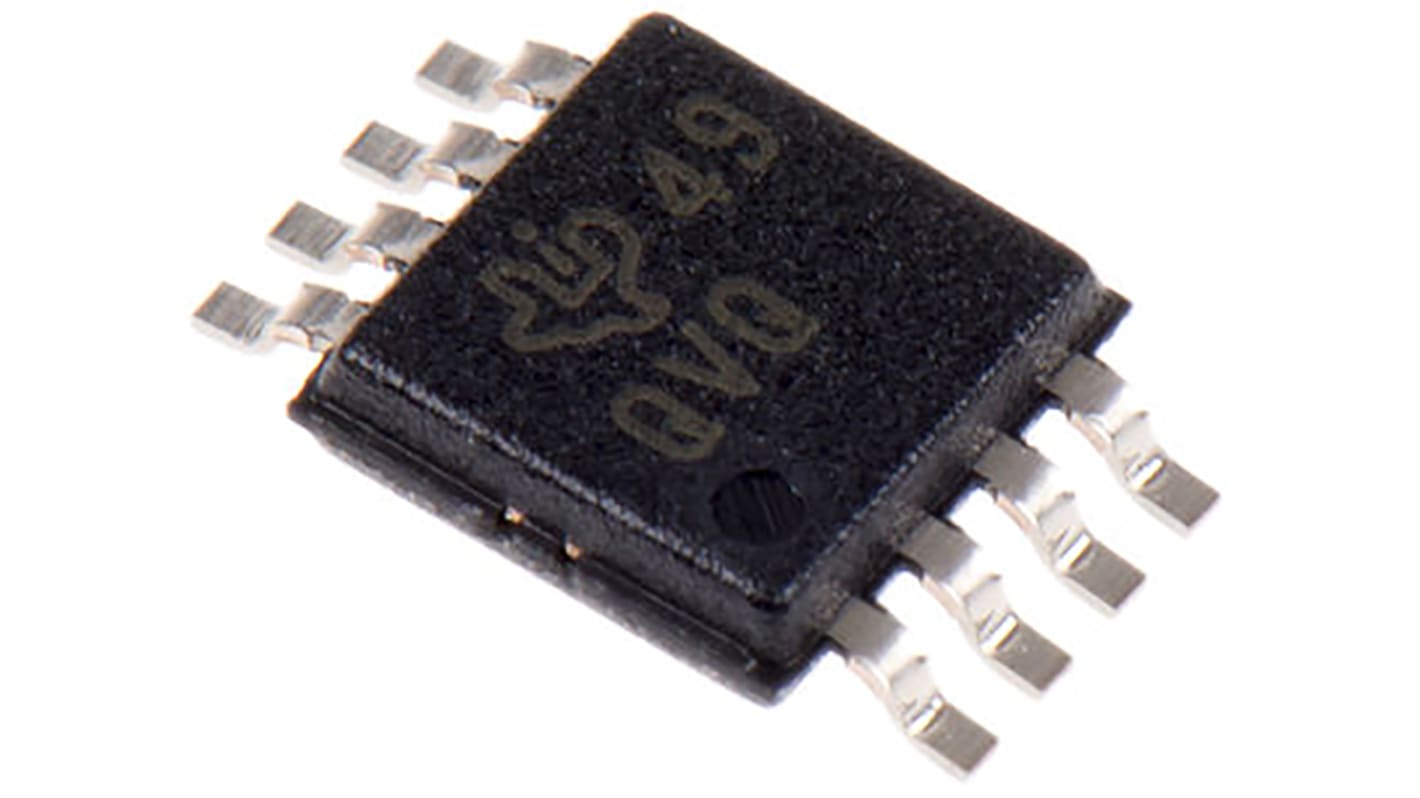

Texas Instruments, LMR14020SQDDAQ1Step-Down Switching Regulator, 1-Channel 2A Adjustable 8-Pin, SO PowerPAD
- RS Stock No.:
- 133-0677P
- Mfr. Part No.:
- LMR14020SQDDAQ1
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 133-0677P
- Mfr. Part No.:
- LMR14020SQDDAQ1
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Output Current | 2A | |
| Maximum Output Voltage | 28 V | |
| Regulator Function | Step Down | |
| Minimum Output Voltage | 0.8 V | |
| Minimum Input Voltage | 4 V | |
| Maximum Input Voltage | 40 V | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Maximum Switching Frequency | 2.5 MHz | |
| Pin Count | 8 | |
| Package Type | SO PowerPAD | |
| Switching Regulator | Yes | |
| Dimensions | 5 x 4 x 1.55mm | |
| Minimum Operating Temperature | -40 °C | |
| Height | 1.55mm | |
| Width | 4mm | |
| Length | 5mm | |
| Maximum Operating Temperature | +125 °C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Maximum Output Current 2A | ||
Maximum Output Voltage 28 V | ||
Regulator Function Step Down | ||
Minimum Output Voltage 0.8 V | ||
Minimum Input Voltage 4 V | ||
Maximum Input Voltage 40 V | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 2.5 MHz | ||
Pin Count 8 | ||
Package Type SO PowerPAD | ||
Switching Regulator Yes | ||
Dimensions 5 x 4 x 1.55mm | ||
Minimum Operating Temperature -40 °C | ||
Height 1.55mm | ||
Width 4mm | ||
Length 5mm | ||
Maximum Operating Temperature +125 °C | ||
LMR140x0, SIMPLE SWITCHER 40V Step-Down Converter with Low IQ, Texas Instruments
Automotive AEC-Q100 Qualified
Low Operating Quiescent Current 40 μA in Sleep-mode
High-Side MOSFET 90 mΩ
Low Operating Quiescent Current 40 μA in Sleep-mode
High-Side MOSFET 90 mΩ
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
