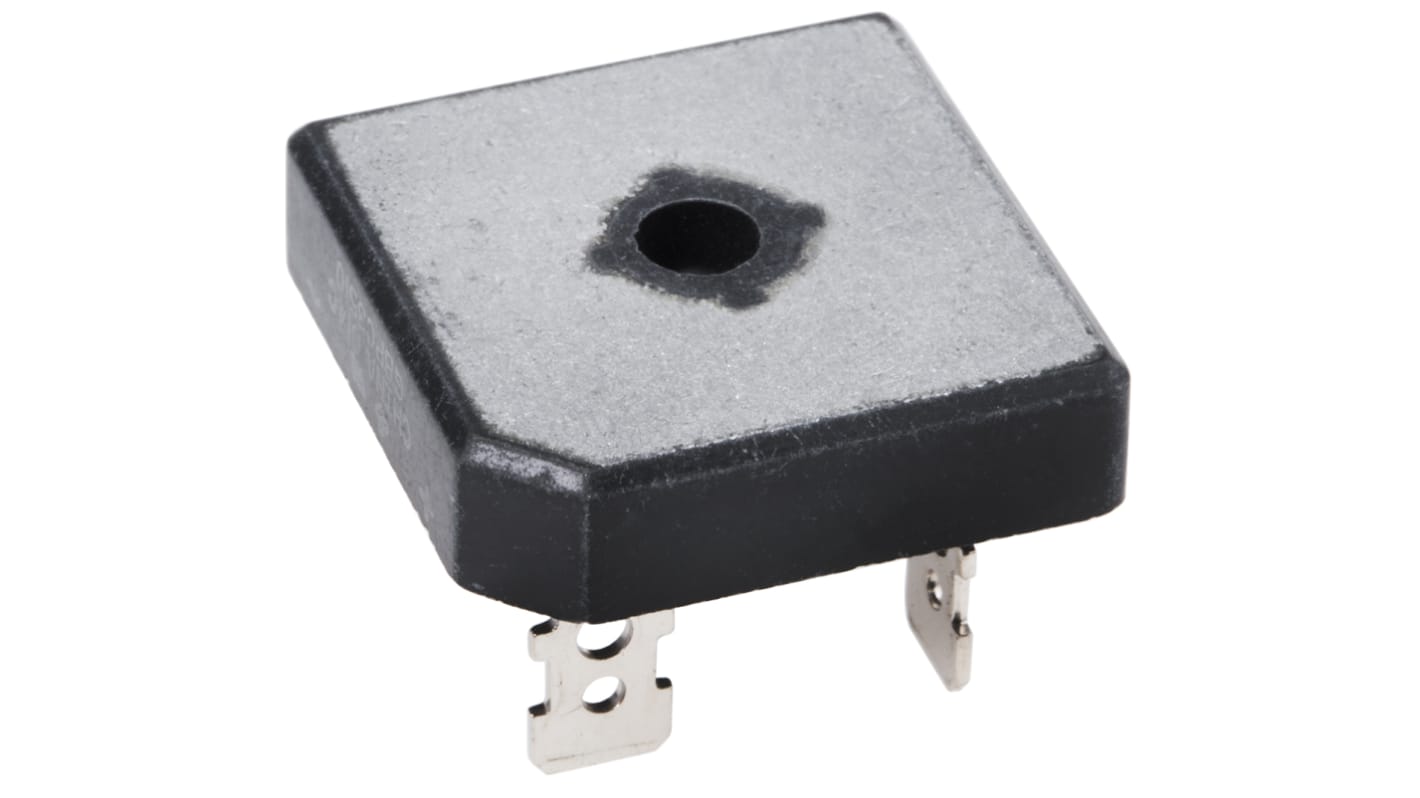

Vishay Bridge Rectifier, 35A, 1000V, 4-Pin
- RS Stock No.:
- 629-6358
- Mfr. Part No.:
- GBPC3510-E4/51
- Brand:
- Vishay
534 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.50
(exc. VAT)
£5.40
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £4.50 |
| 10 - 49 | £4.37 |
| 50 - 99 | £4.14 |
| 100 - 249 | £3.96 |
| 250 + | £3.74 |
- RS Stock No.:
- 629-6358
- Mfr. Part No.:
- GBPC3510-E4/51
- Brand:
- Vishay
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bridge Rectifiers with Push-on Terminals, GBPC35 Series, Vishay Semiconductor
High Current 35 Amperes
Universal, 3-way terminals: Push-on, wrap around or solder
Glass passivated chip junction
Low thermal resistance
Universal, 3-way terminals: Push-on, wrap around or solder
Glass passivated chip junction
Low thermal resistance
Approvals
UL E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Screw Mount |
| Package Type | GBPC |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 28.8mm |
| Dimensions | 28.8 x 28.8 x 7.62mm |
| Width | 28.8mm |
| Height | 7.62mm |
