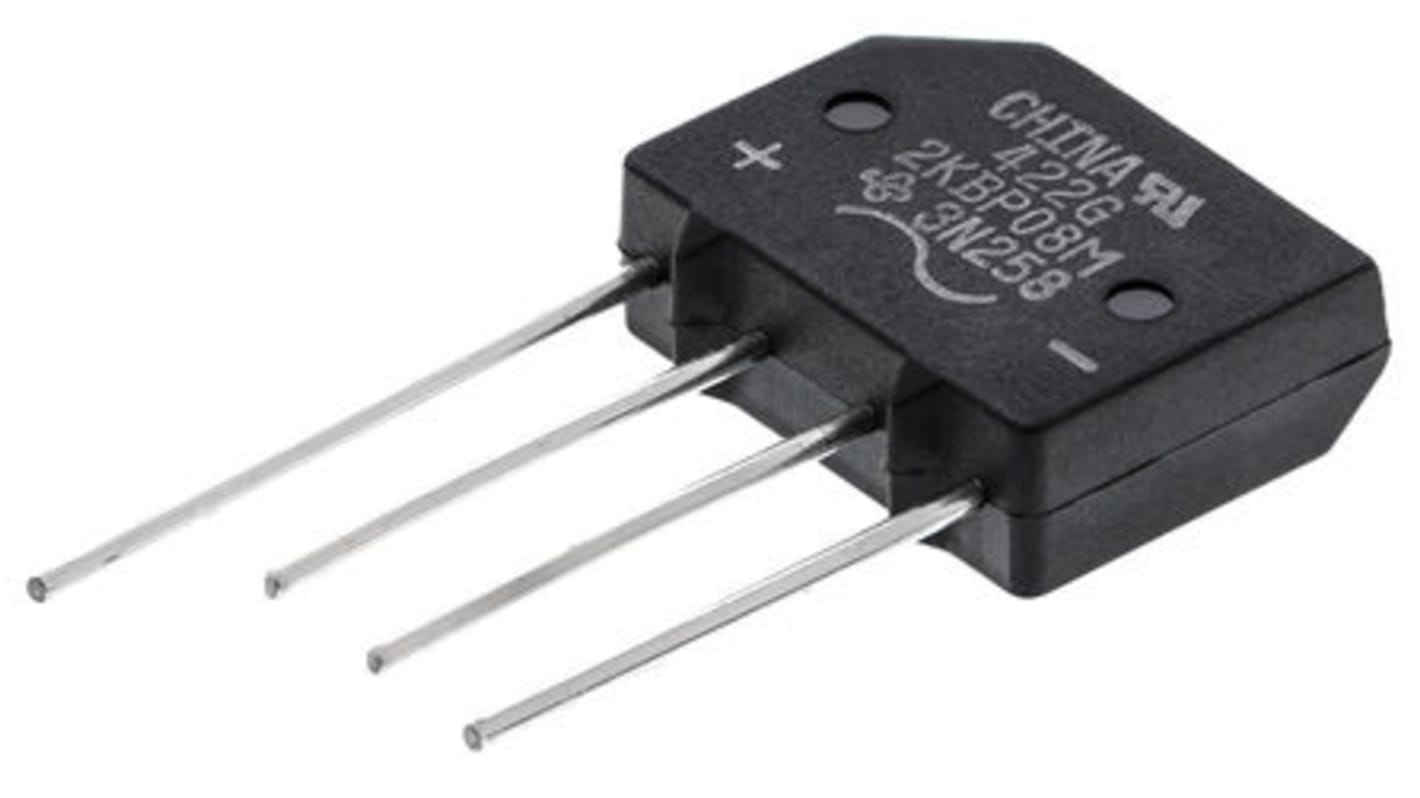

Vishay Bridge Rectifier, 2A, 200V, 4-Pin
- RS Stock No.:
- 170-8415
- Mfr. Part No.:
- 3N255-E4/51
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 170-8415
- Mfr. Part No.:
- 3N255-E4/51
- Brand:
- Vishay
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
SIL PCB Mounting, KBPxxM Series, 3N25x Series, Vishay Semiconductor
Bridge rectifiers in KBPM SIL PCB Mounting package from Vishay Semiconductor. This range includes the KBPxxM (3N2xx), 2KBPxxM (3N25x) and 3KBPxxM series.
Soldering pins for Printed Circuit Board (PCB) through hole mounting
High surge current capability
High dielectric strength case
High surge current capability
High dielectric strength case
Approvals
UL, E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 200V |
| Mounting Type | Through Hole |
| Package Type | KBPM |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 60A |
| Maximum Operating Temperature | +165 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Dimensions | 15.24 x 5.08 x 11.68mm |
| Length | 15.24mm |
| Junction Capacitance | 25pF |
| Width | 5.08mm |
| Height | 11.68mm |
