Taiwan Semiconductor Bridge Rectifier, 15A, 200V, 4-Pin
- RS Stock No.:
- 169-9145
- Mfr. Part No.:
- GBPC1502 T0
- Brand:
- Taiwan Semiconductor
100 In stock - FREE next working day delivery available
Added
Price Each (In a Tray of 100)
£4.986
(exc. VAT)
£5.983
(inc. VAT)
| Units | Per unit | Per Tray* |
| 100 + | £4.986 | £498.60 |
| *price indicative | ||
- RS Stock No.:
- 169-9145
- Mfr. Part No.:
- GBPC1502 T0
- Brand:
- Taiwan Semiconductor
Legislation and Compliance
Product Details

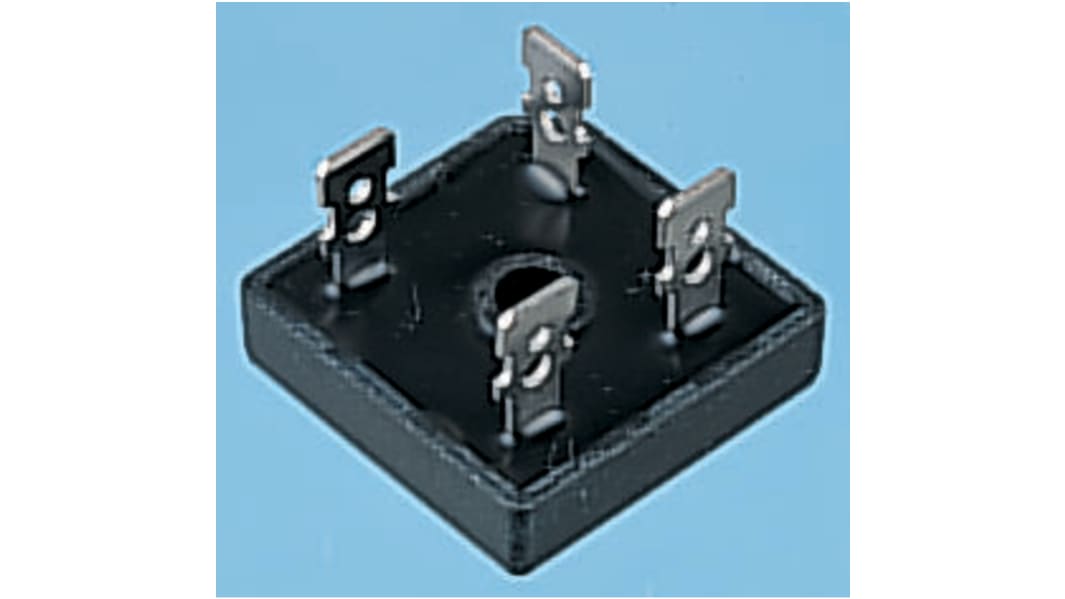

Bridge Rectifiers with Push-on Terminals, GBPC 15 Series, Taiwan Semiconductor
High Current 15 Amperes
Glass passivated chip junction
Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation
Isolated voltage from case to lead over 2500V
Fast-on Terminals
Glass passivated chip junction
Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation
Isolated voltage from case to lead over 2500V
Fast-on Terminals
Approvals
UL E-96005
Bridge Rectifiers - Taiwan Semiconductor
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 15A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 200V |
| Mounting Type | Screw Mount |
| Package Type | GBPC |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 300A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 29mm |
| Dimensions | 29 x 29 x 11.23mm |
| Height | 11.23mm |
| Width | 29mm |
