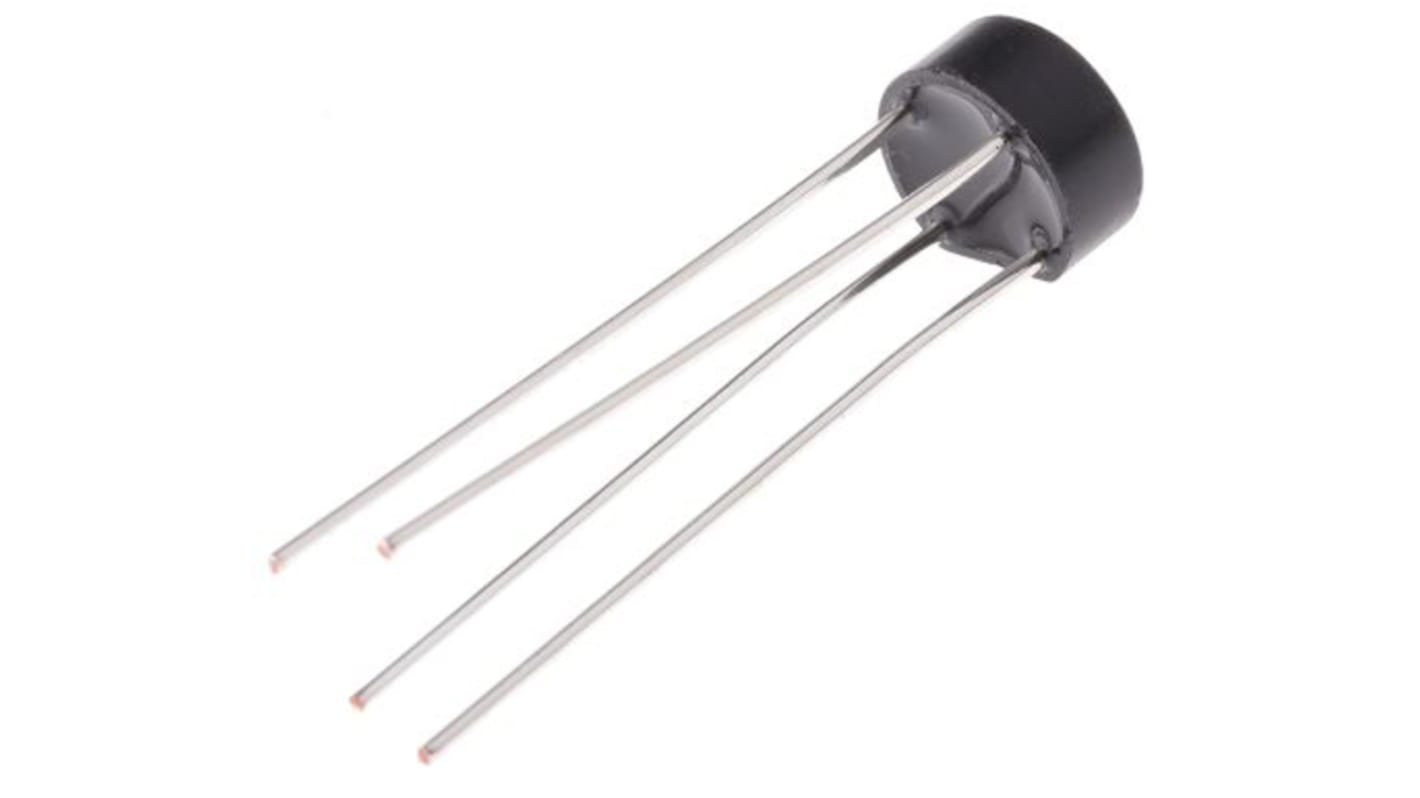

Vishay Bridge Rectifier, 1.2A, 125V, 4-Pin
- RS Stock No.:
- 165-6361
- Mfr. Part No.:
- B80C1000G-E4/51
- Brand:
- Vishay
3000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.199
(exc. VAT)
£0.239
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.199 | £597.00 |
| *price indicative | ||
- RS Stock No.:
- 165-6361
- Mfr. Part No.:
- B80C1000G-E4/51
- Brand:
- Vishay
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bridge Rectifiers with Wire Leads, B...C1000G Series, Vishay Semiconductor
Low forward voltage drop
High dielectric strength case
Wire Lead structure for Printed Circuit Board (PCB) through hole mounting
High dielectric strength case
Wire Lead structure for Printed Circuit Board (PCB) through hole mounting
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 1.2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 125V |
| Mounting Type | Through Hole |
| Package Type | WOG |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 45A |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 10µA |
| Length | 9.86mm |
| Dimensions | 9.86 x 8.84 x 5.6mm |
| Width | 8.84mm |
| Height | 5.6mm |
