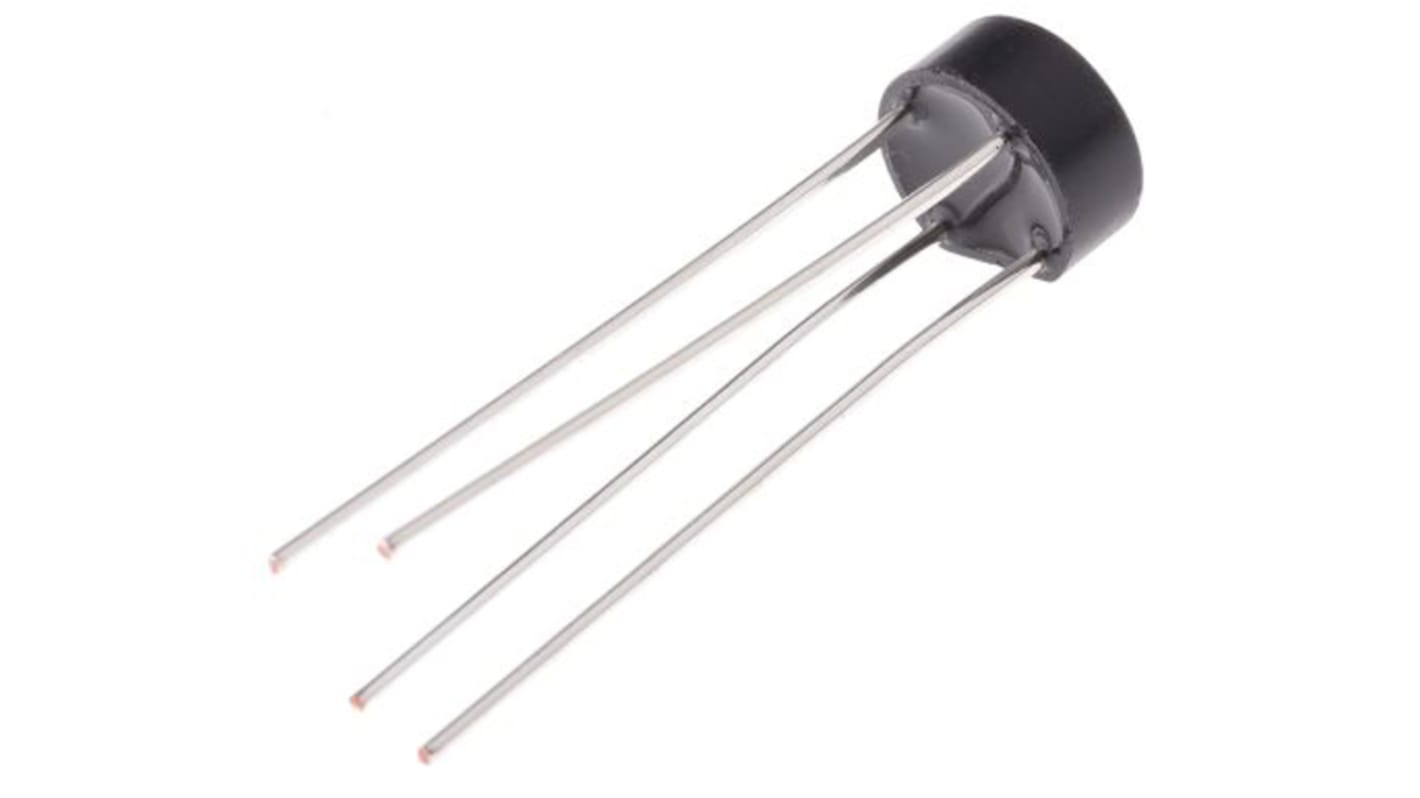

Vishay B40C800G-E4/51, Bridge Rectifier, 900mA 65V, 4-Pin WOG
Available to back order for despatch 01/11/2021
Added
- RS Stock No.:
- 165-6360
- Mfr. Part No.:
- B40C800G-E4/51
- Brand:
- Vishay
- COO (Country of Origin):
- CN
| Units | Per unit | Per Reel* |
| 3000 + | £0.184 | £552.00 |
| *price indicative | ||
Bridge Rectifiers with Wire Leads, B...C800G Series, Vishay Semiconductor
| Attribute | Value |
| Peak Average Forward Current | 900mA |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 65V |
| Mounting Type | Through Hole |
| Package Type | WOG |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 45A |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 10µA |
| Length | 9.86mm |
| Dimensions | 9.86 x 8.84 x 5.6mm |
| Height | 5.6mm |
| Width | 8.84mm |
