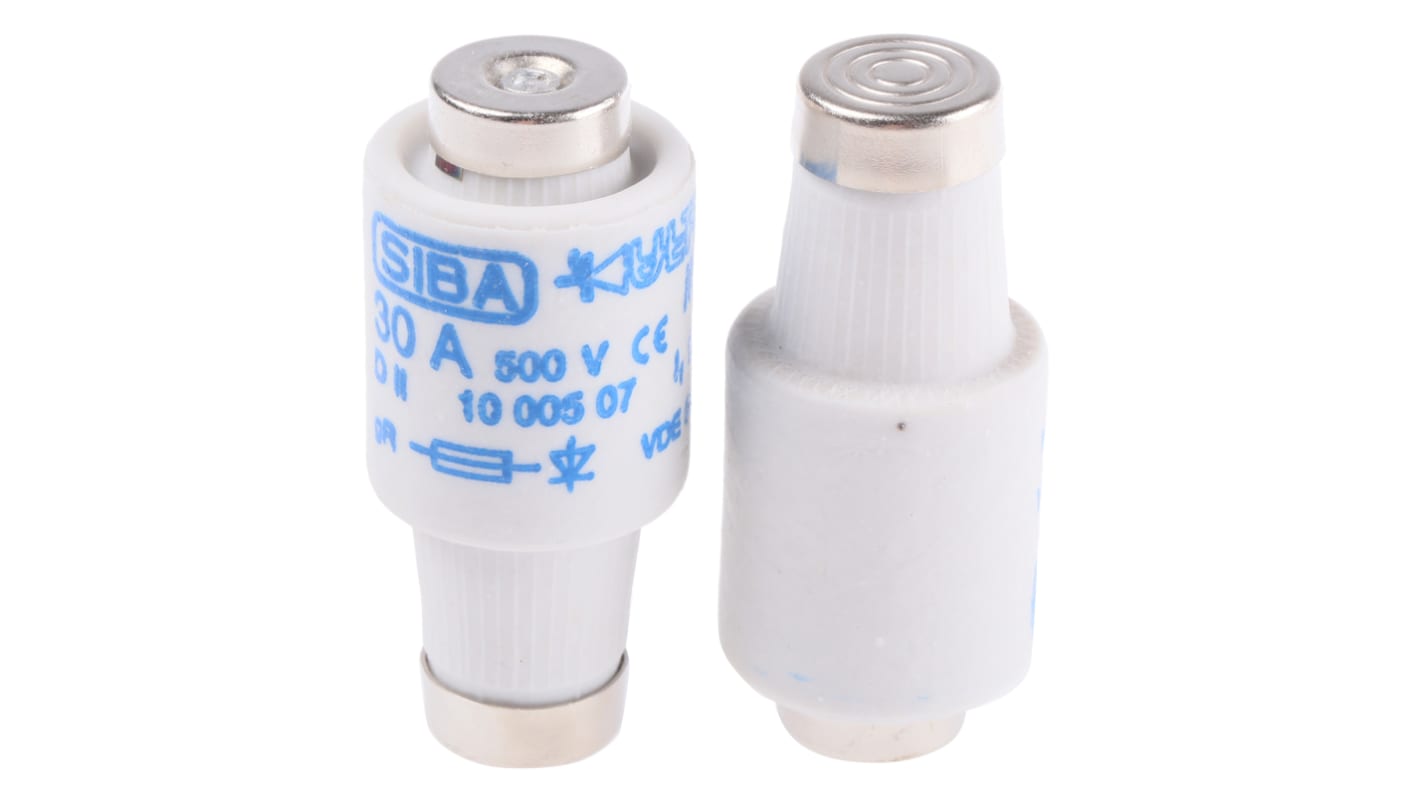

SIBA 30A DII Diazed Fuse, E27 Thread Size, gR, 500V ac

  • RS Stock No. 421-514
  • Mfr. Part No. 10-005-07/30A
  • Brand SIBA
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

D (DIAZED) - Type gR

Low let through current
Low quenching time
Low quenching I²t value
Low excess voltage value
Low thermal load on fuse and holder
Breaking capacity 50kA at 500Vac
Suitable for 3-phase applications

Standards

VDE 0636 and DIN

Approvals

VDE 0636; DIN 49360/49515

Specifications
Attribute Value
Current Rating 30 A
Bottle Fuse Size DII
Voltage Rating 500 V ac
Application Category GR
Thread Size E27
Breaking Capacity at Maximum Voltage Rating 50 kA
Body Material Ceramic
265 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 3.13
(exc. VAT)
£ 3.76
(inc. VAT)
Units
Per unit
Per Pack*
5 - 70
£3.13
£15.65
75 - 245
£2.90
£14.50
250 - 495
£2.874
£14.37
500 - 995
£2.852
£14.26
1000 +
£2.666
£13.33
*price indicative
