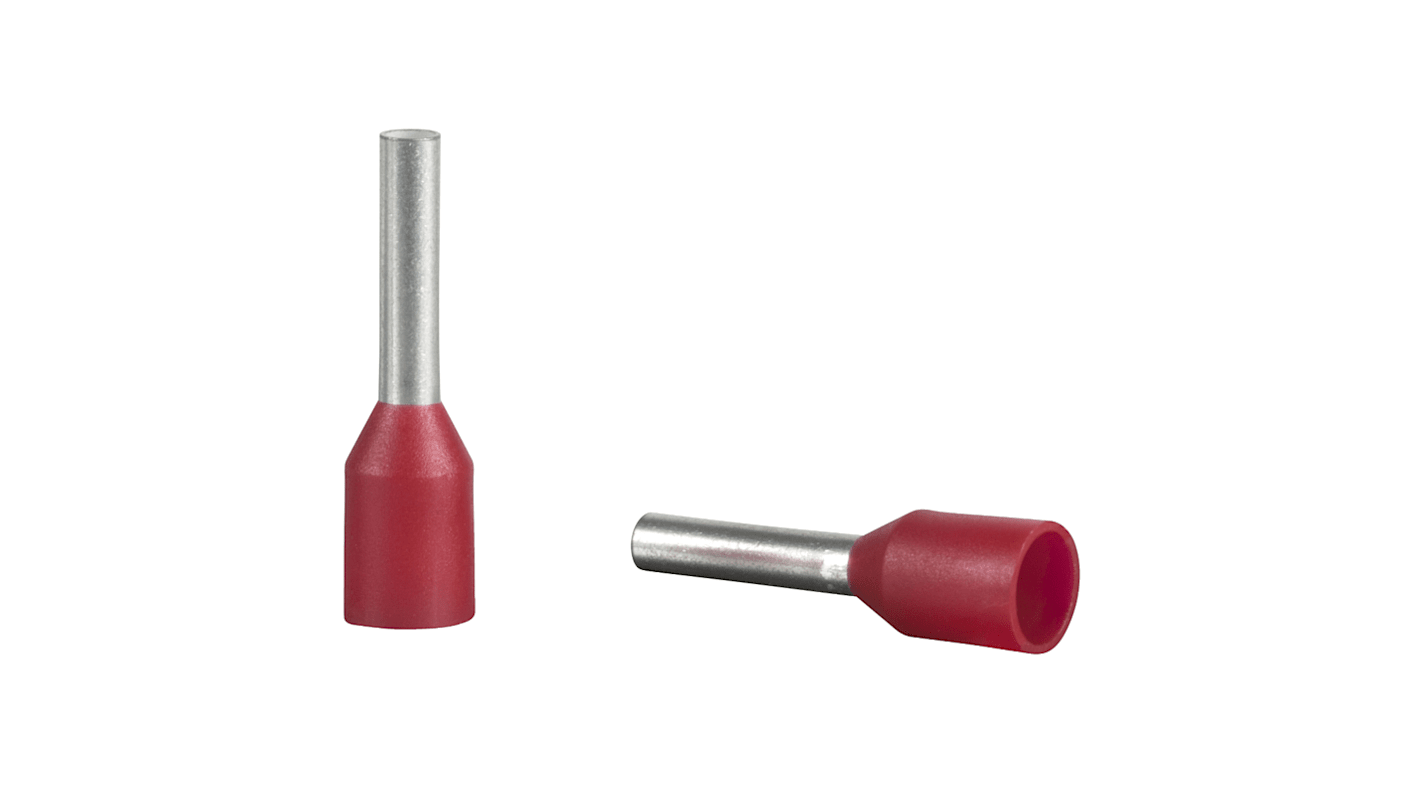

Schneider Electric, AZ5CE Insulated Crimp Bootlace Ferrule, 8.2mm Pin Length, 1.8mm Pin Diameter, 1mm² Wire Size, Red
- RS Stock No.:
- 254-6508
- Mfr. Part No.:
- AZ5CE010
- Brand:
- Schneider Electric
2800 In stock - FREE next working day delivery available
5800 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Box of 200)
£0.062
(exc. VAT)
£0.074
(inc. VAT)
Units | Per unit | Per Box* |
200 - 400 | £0.062 | £12.40 |
600 - 1000 | £0.053 | £10.60 |
1200 - 9800 | £0.047 | £9.40 |
10000 - 19800 | £0.04 | £8.00 |
20000 + | £0.034 | £6.80 |
*price indicative |
- RS Stock No.:
- 254-6508
- Mfr. Part No.:
- AZ5CE010
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- FR
Product Details
Moulded Cable Ends
Cable ends comprising a tinned copper tube with a moulded isolating collar at the end.
The copper tube envelops the strands of the flexible conductor and facilitates introduction into terminals.
These ends are available for conductors with cross-sections from 0.5 → 2.5 mm2, in different colours.
These ends are packaged in small boxes of 100 pieces for the single version or 200 pieces for the double, for ease of use. This packaging ensures good gripping of the ends in thedish-shaped receptacle. Simple pressure on the sides enables the amount of ends required to be extracted.
The copper tube envelops the strands of the flexible conductor and facilitates introduction into terminals.
These ends are available for conductors with cross-sections from 0.5 → 2.5 mm2, in different colours.
These ends are packaged in small boxes of 100 pieces for the single version or 200 pieces for the double, for ease of use. This packaging ensures good gripping of the ends in thedish-shaped receptacle. Simple pressure on the sides enables the amount of ends required to be extracted.
Specifications
Attribute | Value |
---|---|
Maximum Wire Size mm² | 1mm² |
Pin Diameter | 1.8mm |
Insulation Material | Plastic |
Number of Entries | 1 |
Colour | Red |
Pin Length | 8.2mm |
Insulation | Insulated |
Maximum Wire Size AWG | 18AWG |
Overall Length | 13.5mm |
Series | AZ5CE |
- RS Stock No.:
- 254-6508
- Mfr. Part No.:
- AZ5CE010
- Brand:
- Schneider Electric
