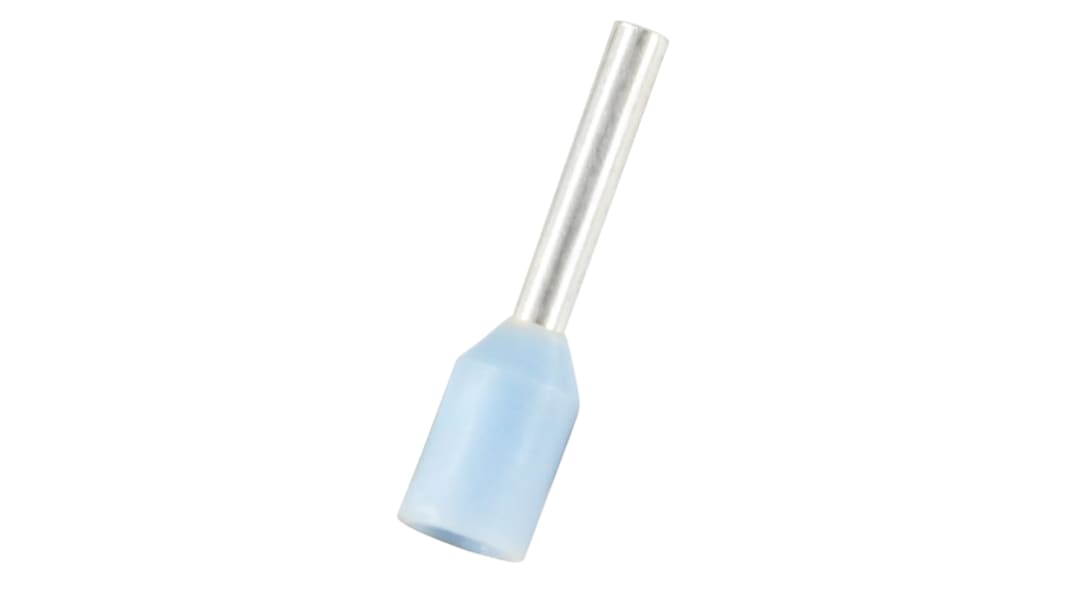

RS PRO Insulated Crimp Bootlace Ferrule, 6mm Pin Length, 1.1mm Pin Diameter, 0.25mm² Wire Size, Light Blue

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS PRO Nylon Insulated Crimp Bootlace Ferrules

Introducing the RS PRO range of insulated crimp bootlace ferrules, a selection of high quality and robust ferrules ideal for providing a secure connection between wire strands and terminals. RS PRO insulated bootlace ferrules are available in a variety of sizes and colours and feature tin plated copper tube terminals with nylon insulation, ensuring excellent durability and performance. RS PRO insulated ferrules are perfect for use in a wide range of industrial wiring and ensure stranded wires are terminated correctly and safely.

Features and Benefits

  • Available in a wide range of AWG sizes and colours

  • Nylon insulation for enhanced durability and protection

  • Tin plated copper tube terminals offering excellent contact

  • Quick and easy to install to stranded wires in a range of applications

  • Terminals can be crimped with ease for a secure connection

Applications

Insulated crimp bootlace ferrules, alternatively referred to as cord end terminals, are perfect for use with industrial applications that require a secure connection between a stranded wire and a terminal, with many sizes and colours available. Insulated ferrules often feature nylon insulated openings with tin plated copper terminals, allowing stranded wires to be inserted and crimped with ease for a secure and reliable connection with terminals. Bootlace ferrules are used in a wide range of areas including:

  • Control units

  • Circuit breakers

  • Switching cabinets

  • Function units

FAQs

Why use a cord end terminal?

Many applications require stranded wires to be connected to terminals to operate correctly. Although for some applications simply inserting the bare strands into the terminal and screwing them is sufficient, this can result in a poor connection with more heavy duty industrial applications. Using a cord end terminal, or bootlace ferrule, allows the wire strands to be securely crimped to create a uniform and superior connection.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications
Attribute Value
Maximum Wire Size mm² 0.25mm²
Pin Diameter 1.1mm
Insulation Material Nylon
Number of Entries 1
Colour Light Blue
Pin Length 6mm
Insulation Insulated
Maximum Wire Size AWG 26AWG
Overall Length 10.4mm
500 In stock - FREE next working day delivery available
Price Each (In a Bag of 100)
£ 0.021
(exc. VAT)
£ 0.025
(inc. VAT)
Units
Per unit
Per Bag*
100 - 400
£0.021
£2.10
500 - 2400
£0.018
£1.80
2500 - 4900
£0.016
£1.60
5000 - 9900
£0.014
£1.40
10000 +
£0.012
£1.20
*price indicative
