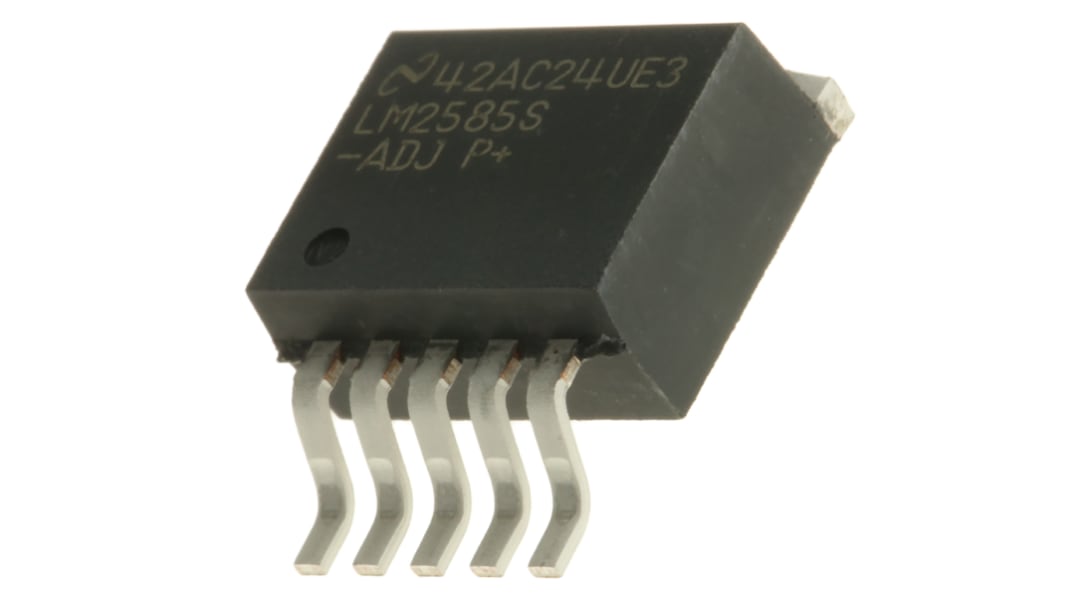

Texas Instruments LM2585S-ADJ/NOPB, Boost Converter, Step Up 3A Adjustable, 115 kHz 5-Pin, TO-263
- RS Stock No.:
- 533-3282
- Mfr. Part No.:
- LM2585S-ADJ/NOPB
- Brand:
- Texas Instruments
12 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.14
(exc. VAT)
£9.77
(inc. VAT)
| Units | Per unit |
| 1 - 8 | £8.14 |
| 9 - 22 | £7.02 |
| 23 + | £6.65 |
- RS Stock No.:
- 533-3282
- Mfr. Part No.:
- LM2585S-ADJ/NOPB
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
LM258x Boost/Flyback/Sepic SIMPLE SWITCHER® Regulator Series
The LM258x series of SIMPLE SWITCHER® regulators are designed for flyback, step-up (boost), SEPIC, and forward converter applications.
Requires few external components
Output voltage versions: 5V, 12V, and adjustable
Family of standard inductors and transformers
Wide input voltage range: 4V to 40V
Current-mode operation for improved transient response, line regulation, and current limit
Internal soft-start function reduces in-rush current during start-up
Output transistor protected by current limit, under voltage lockout, and thermal shutdown
System Output Voltage Tolerance of ±4% max over line and load conditions
LM2586/LM2588 with external shutdown capability
Output voltage versions: 5V, 12V, and adjustable
Family of standard inductors and transformers
Wide input voltage range: 4V to 40V
Current-mode operation for improved transient response, line regulation, and current limit
Internal soft-start function reduces in-rush current during start-up
Output transistor protected by current limit, under voltage lockout, and thermal shutdown
System Output Voltage Tolerance of ±4% max over line and load conditions
LM2586/LM2588 with external shutdown capability
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
Specifications
Attribute | Value |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 3A |
| Maximum Input Voltage | 40 V |
| Number of Outputs | 1 |
| Line Regulation | 100 mV |
| Load Regulation | 100 mV |
| Mounting Type | Surface Mount |
| Package Type | TO-263 |
| Pin Count | 5 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 115 kHz |
| Switching Regulator | Yes |
| Efficiency | 93% |
| Dimensions | 10.16 x 8.64 x 4.57mm |
| Maximum Output Voltage | 12.6 V |
| Height | 4.57mm |
| Minimum Output Voltage | 11.4 V |
| Width | 8.64mm |
| Length | 10.16mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Input Voltage | 4 V |
| Minimum Operating Temperature | -40 °C |
