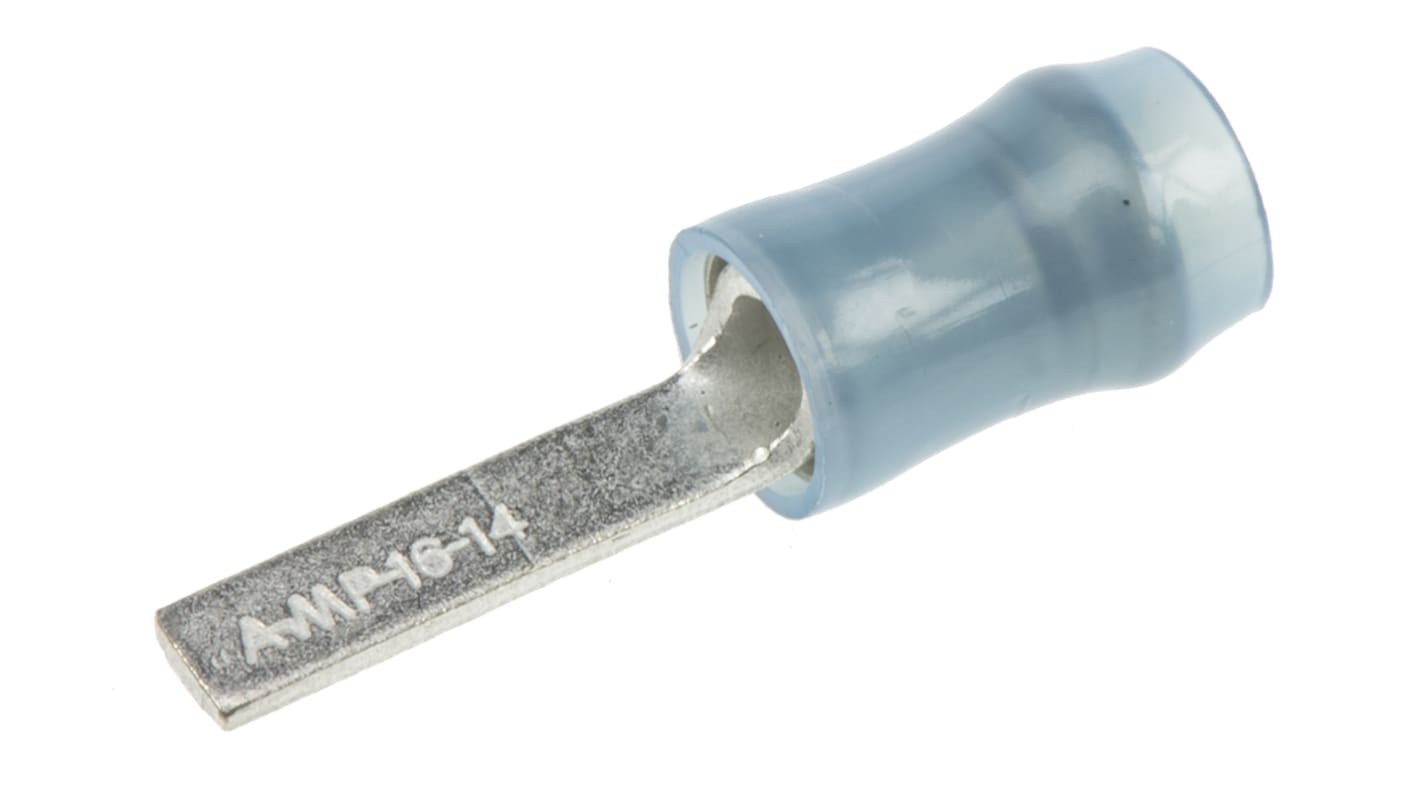

TE Connectivity, PIDG Insulated Crimp Blade Terminal 12.57mm Blade Length, 1mm² to 2.6mm², 16AWG to 14AWG, Blue
- RS Stock No.:
- 161-1724
- Mfr. Part No.:
- 131330
- Brand:
- TE Connectivity
3300 In stock - FREE next working day delivery available
500 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Box of 100)
£0.394
(exc. VAT)
£0.473
(inc. VAT)
Units | Per unit | Per Box* |
100 - 400 | £0.394 | £39.40 |
500 + | £0.343 | £34.30 |
*price indicative |
- RS Stock No.:
- 161-1724
- Mfr. Part No.:
- 131330
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity PIDG Blade Wire Crimp Terminals
PIDG blade wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG blade wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Note
Not for use with double wire
Approvals
UL recognised
TE Connectivity PIDG Terminals
Specifications
Attribute | Value |
---|---|
Gender | Male |
Series | PIDG |
Insulation | Insulated |
Insulation Material | Nylon |
Shrouded/Unshrouded | Shrouded |
Minimum Wire Size mm² | 1mm² |
Maximum Wire Size mm² | 2.6mm² |
Minimum Wire Size AWG | 16AWG |
Maximum Wire Size AWG | 14AWG |
Overall Length | 22.63mm |
Blade Length | 12.57mm |
Inner Diameter | 4.1mm |
Blade Width | 2.92mm |
Hooked | No |
Colour | Blue |
Contact Plating | Tin |
Contact Material | Copper |
