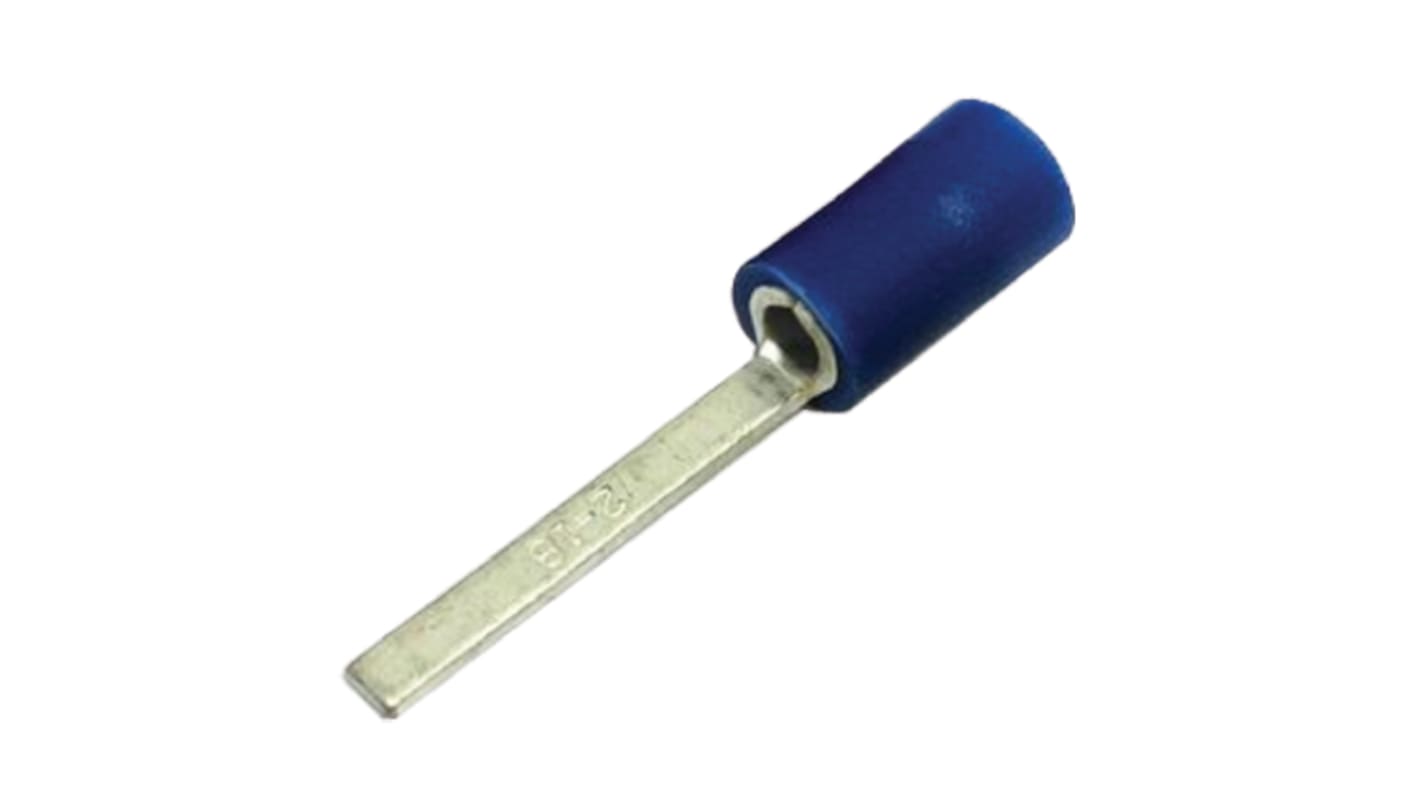

RS PRO No Insulated Crimp Blade Terminal 18.1mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Insulated Crimp Blade Terminals

An RS Pro series of insulated crimp blade terminals made from copper with flared vinyl insulation. These insulated crimp blade wire connectors are colour coded for use with different wire sizes. All models are highly reliable and excellent quality.

Features & Benefits

Red 0.5 - 1.5 mm²
Blue 1.5 - 2.5 mm²
Yellow 2.5 - 6.5 mm²

RS Pro Range

Specifications
Attribute Value
Gender Male
Insulation Insulated
Insulation Material Vinyl
Minimum Wire Size mm² 1.5mm²
Shrouded/Unshrouded Unshrouded
Maximum Wire Size mm² 2.5mm²
Minimum Wire Size AWG 16AWG
Maximum Wire Size AWG 14AWG
Overall Length 28mm
Inner Diameter 4.8mm
Blade Length 18.1mm
Blade Width 2.5mm
Blade Thickness 0.8mm
Hooked No
Colour Blue
Contact Plating Tin
Contact Material Copper
9000 In stock - FREE next working day delivery available
Price Each (In a Pack of 1000)
£ 0.077
(exc. VAT)
£ 0.092
(inc. VAT)
Units
Per unit
Per Pack*
1000 - 2000
£0.077
£77.00
3000 - 5000
£0.065
£65.00
6000 +
£0.057
£57.00
*price indicative
