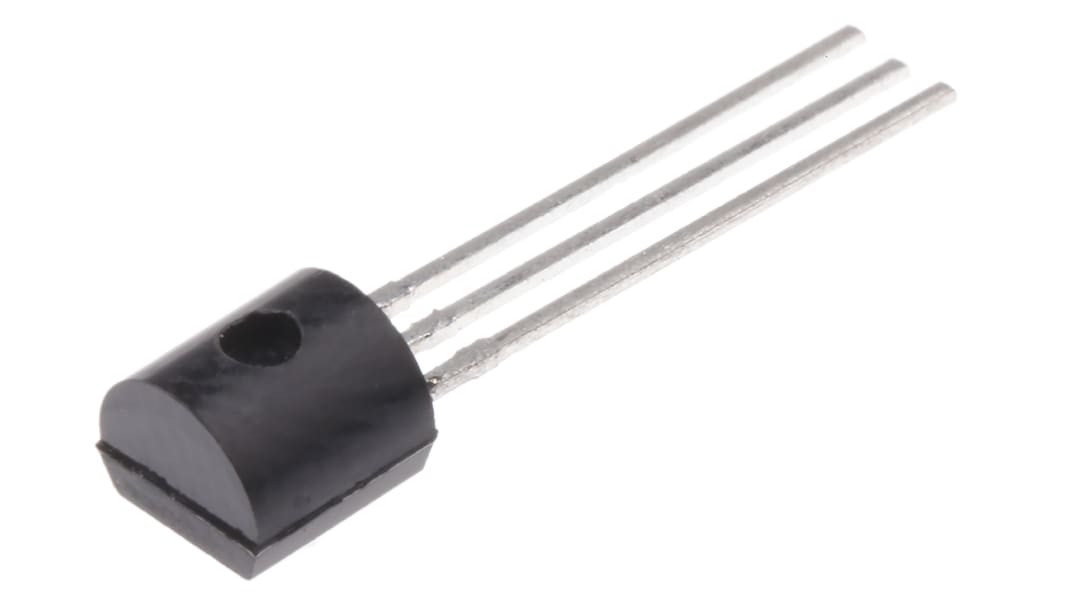

onsemi KSP2222ABU NPN Transistor, 600 mA, 40 V, 3-Pin TO-92
- RS Stock No.:
- 739-0385
- Mfr. Part No.:
- KSP2222ABU
- Brand:
- onsemi
1040 In stock - FREE next working day delivery available
710 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.213
(exc. VAT)
£0.256
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £0.213 | £2.13 |
| 100 - 990 | £0.088 | £0.88 |
| 1000 - 2490 | £0.06 | £0.60 |
| 2500 + | £0.052 | £0.52 |
| *price indicative | ||
- RS Stock No.:
- 739-0385
- Mfr. Part No.:
- KSP2222ABU
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
Small Signal NPN Transistors, 40V to 50V, Fairchild Semiconductor
The KSP2222ABU is a great general purpose NPN Amplifier. This amplifier is a single configuration transistor and comes in a TO-92 package size. It can also withstand up to, -55 to +150°C.
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 600 mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 625 mW |
| Minimum DC Current Gain | 100 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 75 V |
| Maximum Emitter Base Voltage | 6 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.58 x 3.86 x 4.58mm |
