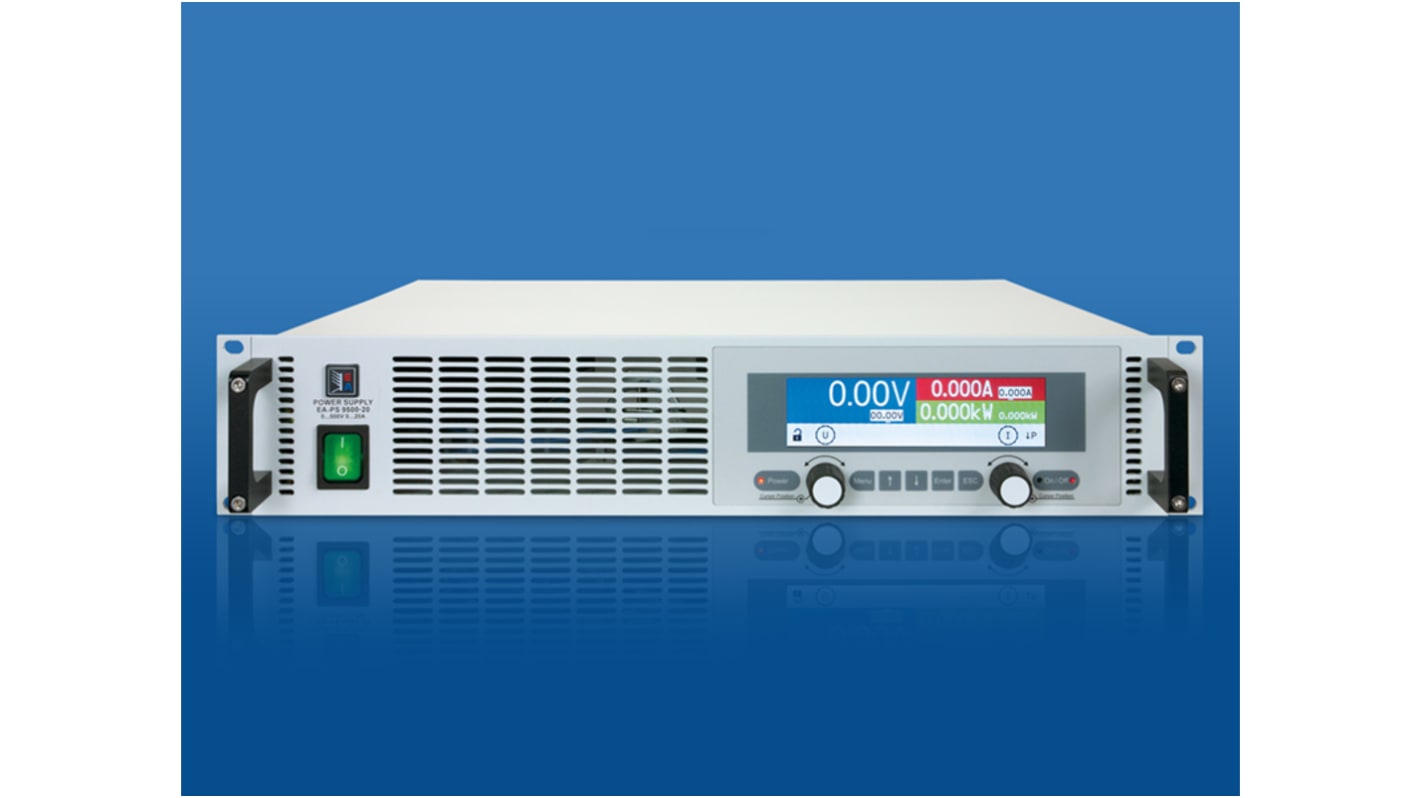

EA Elektro-Automatik Analogue, Digital Bench Power Supply 1kW, 1 Output 0 → 360V 10A

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

EA-PS 9000 2U 640W - 3000W (μ-processor) Series

The EA-PS 9000 2U is an adjustable and programmable 19" 2U power supply series with a high performance micro-controller and 16-bit resolution. Features include an 'auto-ranging' output for a flexible usage at either high voltage or high current, as convenient, within the nominal power rating. The EA-PS 9000 2U is equipped with a graphic display with multiple functions, such as memory and up to 4 digit display resolution, and provides for a highly stable and low ripple output condition with fast dynamic response. For external automated control, it comes with 'on-board' three-channel isolated interface (analogue 0-5V/0-10V, USB and Ethernet). This series is an excellent 'low-emission' tool for laboratory and industrial application environments, for R&D, automated testing and 19" cabinet system integration.

μ-processor controlled, up to 16 bit resolution
For laboratory, industry, R&D, automated testing
Flexible auto-ranging output, constant U, I, P mode
Graphic display, up to 4-digit display, memory functions
On-board isolated analogue interface (0-5/0-10V), USB and Ethernet
Suitable for master-slave parallel & serial operation
Attractive and rugged 19" 2U rack format
IEC 320-C20 input receptacle, outlet 8 mm bolts with insulated safety cover

Supplied with

power cord, user manual (English/German)

//media.rs-online.com/t_line/L8030135-01.jpg

Elektro-Automatik

Specifications
Attribute Value
Output Voltage 0 → 360V
Output Current 10A
Number of Outputs 1
Type Analogue, Digital
Power Rating 1kW
Supply Voltage 90 → 264V ac
Number of Displays 1
Input Connector IEC 320
Output Connector 4 mm Safety Socket
Minimum Temperature 0°C
Maximum Temperature +50°C
2 in stock for FREE next working day delivery
3 available from Europe for delivery within 2 working day(s).
Price Each
£ 1,525.32
(exc. VAT)
£ 1,830.38
(inc. VAT)
Units
Per unit
1 +
£1,525.32
Calibration Options:
