Sidamo TM 150 Bench Grinder 150mm, 230V

  • RS Stock No. 277-257
  • Mfr. Part No. 20113101
  • Brand Sidamo
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

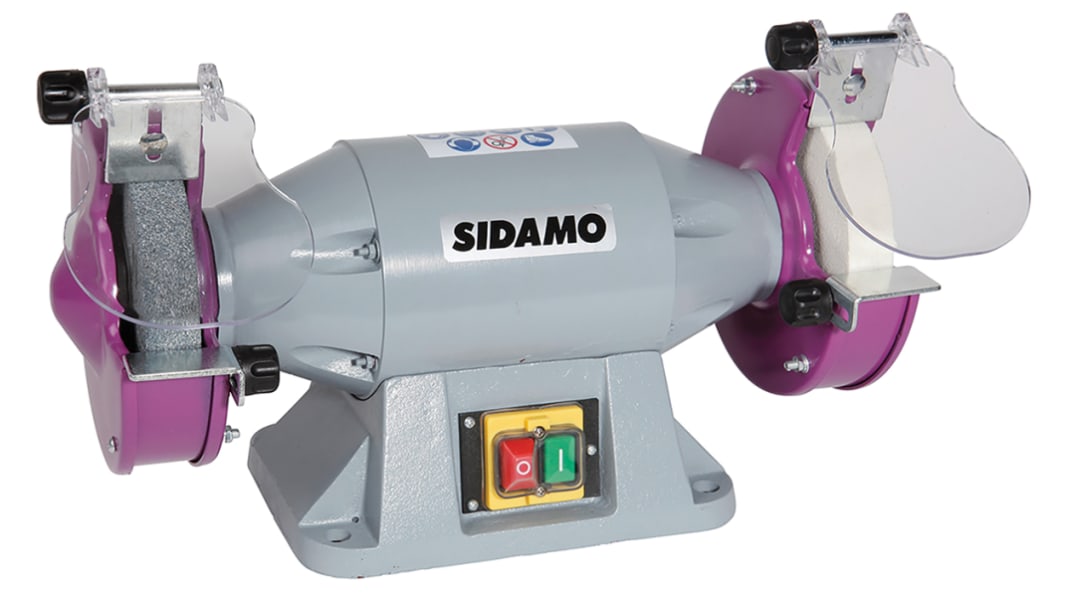

Sidamo Bench Grinder

The Sidamo 1110H series bench grinder has a grinding wheel diameter of 150mm and grinding wheel bore of 32mm. It is a robust device with a cast iron body. This grinder is mounted on self-lubricating sealed ball bearings. It is enabled with automatic thermal protection within the motor. The grinder has pressed steel casings fitted with a dust collection nozzle. The spark arrester and tool holder can be adjusted to a distance of 2mm from the grinding wheel. It has 230VAC power supply and 520W output power. It is 465mm wide, 260mm high and 210mm deep.

Features and Benefits

Integrated thermal protection
No access opening to tool holder
Plug type is type C- Euro plug
Polycarbonate protective screen
Spark screen adjustable to 2 mm from grinder
Speed of rotation is 2800rpm
Under-voltage coil switch

Applications

Ferrous metals

Certifications

CE certified

Specifications
Attribute Value
Grinding Wheel Bore 32mm
Grinding Wheel Diameter 150mm
Speed 2800rpm
Voltage Rating 230V
Motor Wattage 520W
Plug Type Type C - Euro Plug
Model Number TM 150
3 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Price Each
£ 224.49
(exc. VAT)
£ 269.39
(inc. VAT)
Units
Per unit
1 +
£224.49
