4 Hole Flange Bearing Unit 40mm ID
- RS Stock No.:
- 750-8823
- Mfr. Part No.:
- UCFC208
- Brand:
- RS PRO
41 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£19.76
(exc. VAT)
£23.71
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £19.76 |
| 5 - 9 | £19.36 |
| 10 - 24 | £18.95 |
| 25 + | £18.55 |
- RS Stock No.:
- 750-8823
- Mfr. Part No.:
- UCFC208
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

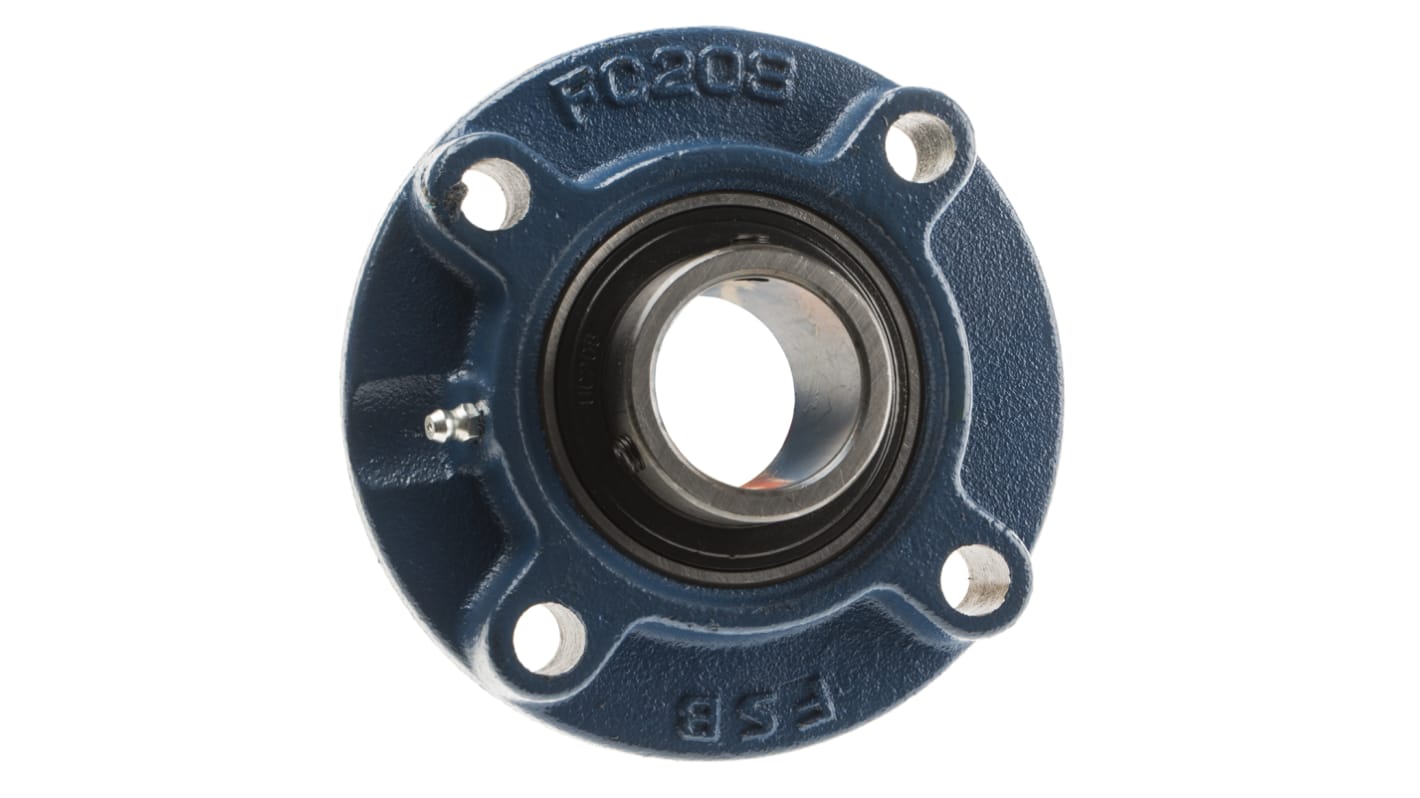

RS PRO Four Hole Flange Bearing Unit 40 mm
Keep your ball bearings firmly in place with this four-hole flange bearing unit from the RS PRO range. This component makes sure that the rotating shafts on wheels, gears and turbines run smoothly. You'll mainly find it in commercial environments, such as industrial plants, production lines and farms.
You can either surface mount this component, or install it inside a housing or machine area for secure attachment. There's a lip on the outer ring of the bearing, which makes it easier to mount and position it for delicate applications. The component is made from hardwearing cast iron that won't rust or tarnish, so it lasts for longer.
This flange-bearing unit has four mounting holes to ensure it withstands high vibrations and large axial loads. It can be used with agricultural equipment, heat-treatment machinery and conveyor systems.
You can either surface mount this component, or install it inside a housing or machine area for secure attachment. There's a lip on the outer ring of the bearing, which makes it easier to mount and position it for delicate applications. The component is made from hardwearing cast iron that won't rust or tarnish, so it lasts for longer.
This flange-bearing unit has four mounting holes to ensure it withstands high vibrations and large axial loads. It can be used with agricultural equipment, heat-treatment machinery and conveyor systems.
Features and Benefits
• Flange bearing unit
• Depth of 41.2 mm
• Inside diameter of 40 mm
• Length of 145 (diameter) mm
• Cast-iron material
• Four mounting holes
• Mounting hole centre-to-centre of 84.8 mm
• Mounting hole size of 14 mm
• Depth of 41.2 mm
• Inside diameter of 40 mm
• Length of 145 (diameter) mm
• Cast-iron material
• Four mounting holes
• Mounting hole centre-to-centre of 84.8 mm
• Mounting hole size of 14 mm
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 40mm |
| Bearing Unit Type | Flange Bearing Unit |
| Number of Mount Holes | 4 |
| Material | Cast Iron |
| Length | 145mm |
| Depth | 41.2mm |
| Mount Hole Size | 14mm |
| Mount Hole Centre-to-Centre | 84.8mm |
