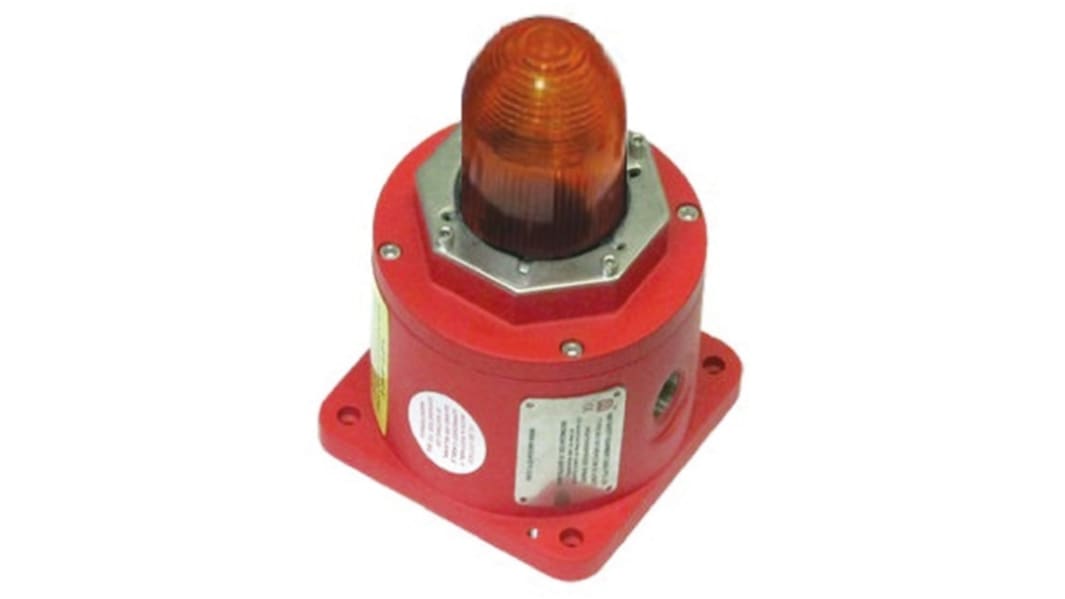

Explosion Proof Xenon, Flashing Beacon BC 150 Series, Amber, Base Mount, 12 → 48 V dc

  • RS Stock No. 787-2177
  • Mfr. Part No. BC150AX10DCNNNARDN
  • Brand Moflash
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
Product Details

Moflash Explosion Proof Beacon, BC150 Series

The BC150 beacon has been approved for use in potentially explosive atmospheres, hazardous areas and very harsh environmental conditions.
Typical applications are Oil and Gas, On-shore & Offshore, Chemical, Petrochemical, Refineries & Marine locations, etc.
This warning beacon has a choice of two types of light source: either Xenon (strobe) with multiple flash rate and power ratings or an LED array with three status type indication options and two power ratings. The design of this beacon allows for termination inside the enclosure.

Xenon or LED visual beacons
360° light output around the vertical axis
Dustproof and weatherproof
Red (RAL3001) GRP (Glass Reinforced Plastic)
Tempered glass lens
L 150mm x W 150mm x H 212mm
IP66 / IP67 protection
Temperature -40 to +70°C
Accepts upto ≤2.5mm2 incorporating rising clamp protectors
Cable entry 4 x M20
Weight 3.8 kg
RoHS compliant and CE marked

Standards

Conforms to EN (IEC) 60079-0, EN (IEC) 60079-1

Approvals

Approved by ATEX and CQST, IMETRO and IECEX
ATEX: II 2G Exd IIC T4 - T6 (incorporating IIA & IIB)
Zones 1 & 2, zones 21 & 22

Hazardous Area

Specifications
Attribute Value
Supply Voltage 12 → 48 V dc
Light Effect Flashing
Lens Colour Amber
Mounting Style Base Mount
Bulb Type Xenon
Current Type DC
Housing Colour Red
Lamp Included Yes
Series BC 150
Height 120mm
Base Length 150mm
Maximum Temperature +70°C
Hazardous Area Certification ATEX
Minimum Temperature -40°C
Base Width 150mm
