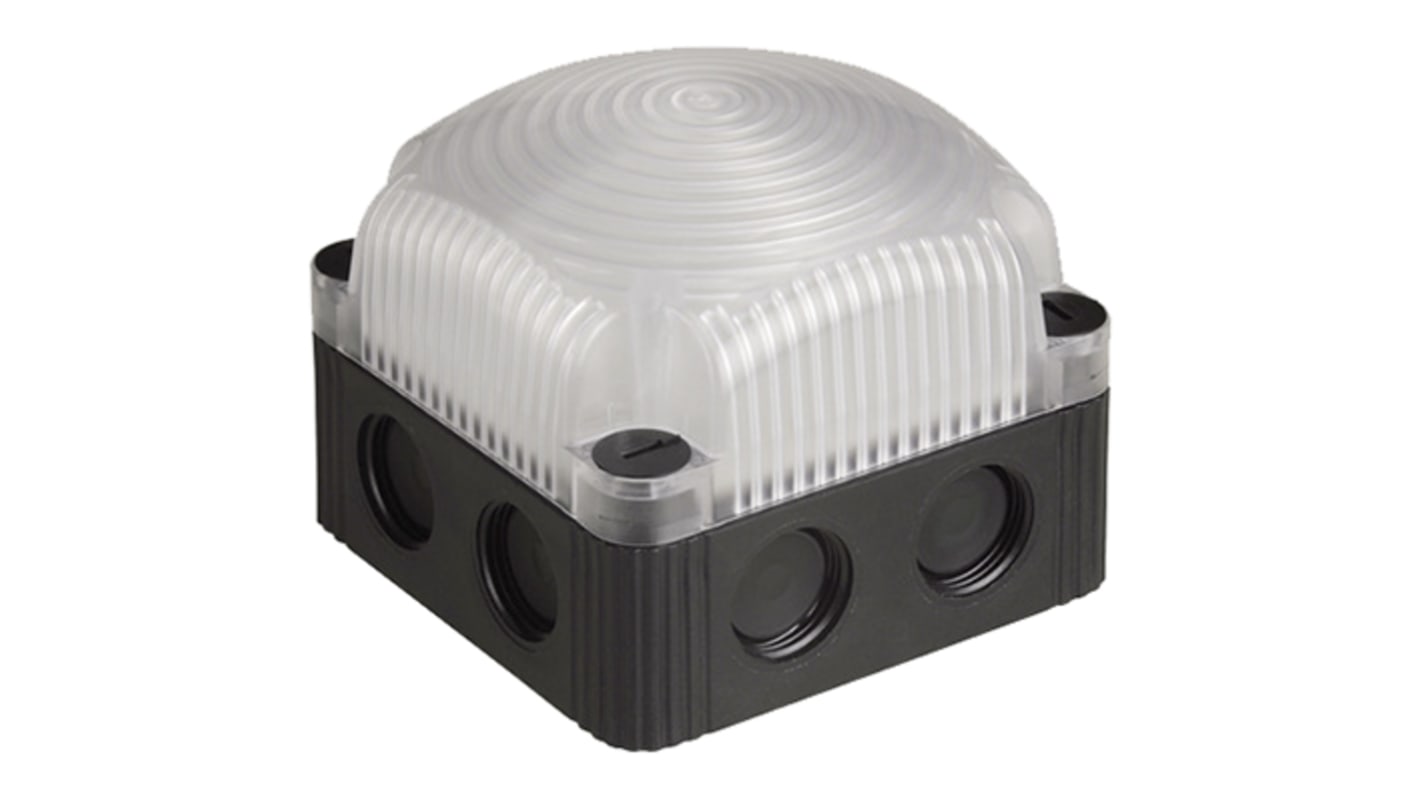

Werma 853 Clear LED Beacon, 230 V ac, Steady, Base Mount

  • RS Stock No. 123-2919
  • Mfr. Part No. 85348060
  • Brand Werma
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

LED Beacon - 853 Series

The 853 Series of LED beacons from Werma are available in 3 options, the permanent beacon, the intense double flash beacon with low power consumption and the attention grabbing EVS beacon with flickering light. All three models can be wall, base and ceiling mounted. They also save on installation time thanks to a snap-on fixing bracket: simply drill two holes, attach the fixing bracket to the wall and snap on the beacon. The cable can be fed through one of the eight self-sealing membranes without the need for any tools. Once the cable has been connected to the terminals, the lens can be clipped onto the base and secured using the four captive quick release screws

Wall, base and ceiling mounted
IP65 protection rating (with cable gland)
Life duration of up to 50,000 hrs
LED beacon in attractive quadratic form
Innovative connector to create traffic light combinations
Easy assembly due to quick release screws
Eight self-sealing membranes for cable entry without tools
Eight integrated M20 threads, no nuts required
Conforms to the Low Voltage Directive and EMC Directive
CE Mark, UL 508 standard

//media.rs-online.com/t_line/L1232919-01.jpg
Specifications
Attribute Value
Supply Voltage 230 V ac
Light Effect Steady
Lens Colour Clear
Mounting Style Base Mount
Bulb Type LED
Current Type AC
Housing Colour Black
Lamp Included Yes
Series 853
Height 85mm
Base Length 85mm
Minimum Temperature -25°C
Standards Met CE Certified
IP Rating IP66, IP67
Maximum Temperature +50°C
Base Width 72mm
Special Features Easy Assembly Due to Quick-Release Screws, 3 Different Status Warnings Can Be Signalled by Just One Beacon
3 In stock - FREE next working day delivery available
Price Each
£ 133.56
(exc. VAT)
£ 160.27
(inc. VAT)
Units
Per unit
1 +
£133.56
