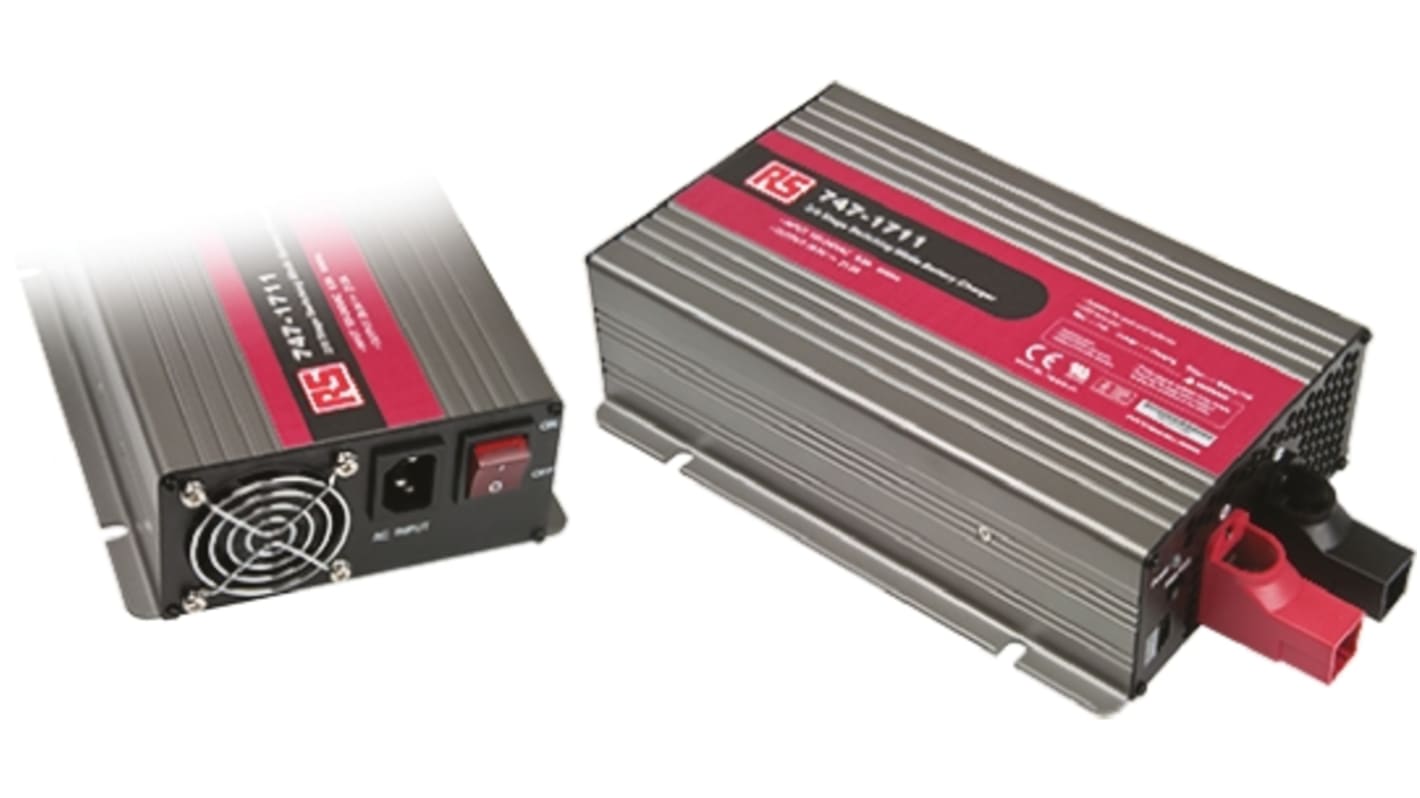

Mean Well Lead Acid 27.6V 21A Battery Charger

  • RS Stock No. 747-1711
  • Mfr. Part No. PB-600-24
  • Brand Mean Well
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

600W Single Output Battery Charger

2/8 stage charging
Universal AC input / Full range
Built-in active PFC function PF>0.95
Protection: Reverse Polarity / Short circuit / Over voltage / Over temperature
Charger for lead-acid batteries
3 color LED loading indicator
Built-in remote ON-OFF control
Built-in fan speed control (Depends on charging current)

Specifications
Attribute Value
Number of Batteries Charged 1
Chemistries Charged Lead Acid
Batteries Included No
Dimensions 230 x 158 x 67mm
Charge Current 21A
Input Voltage 90 → 264V ac
Number of Charge Stages 2/8
Output Voltage 27.6V
Weight 2.2kg
5 In stock for FREE next working day delivery
Price Each
£ 262.89
(exc. VAT)
£ 315.47
(inc. VAT)
Units
Per unit
1 +
£262.89
