Barrier Strip, 6 Contact, 8.26mm Pitch, 1 Row, 20A, 150 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

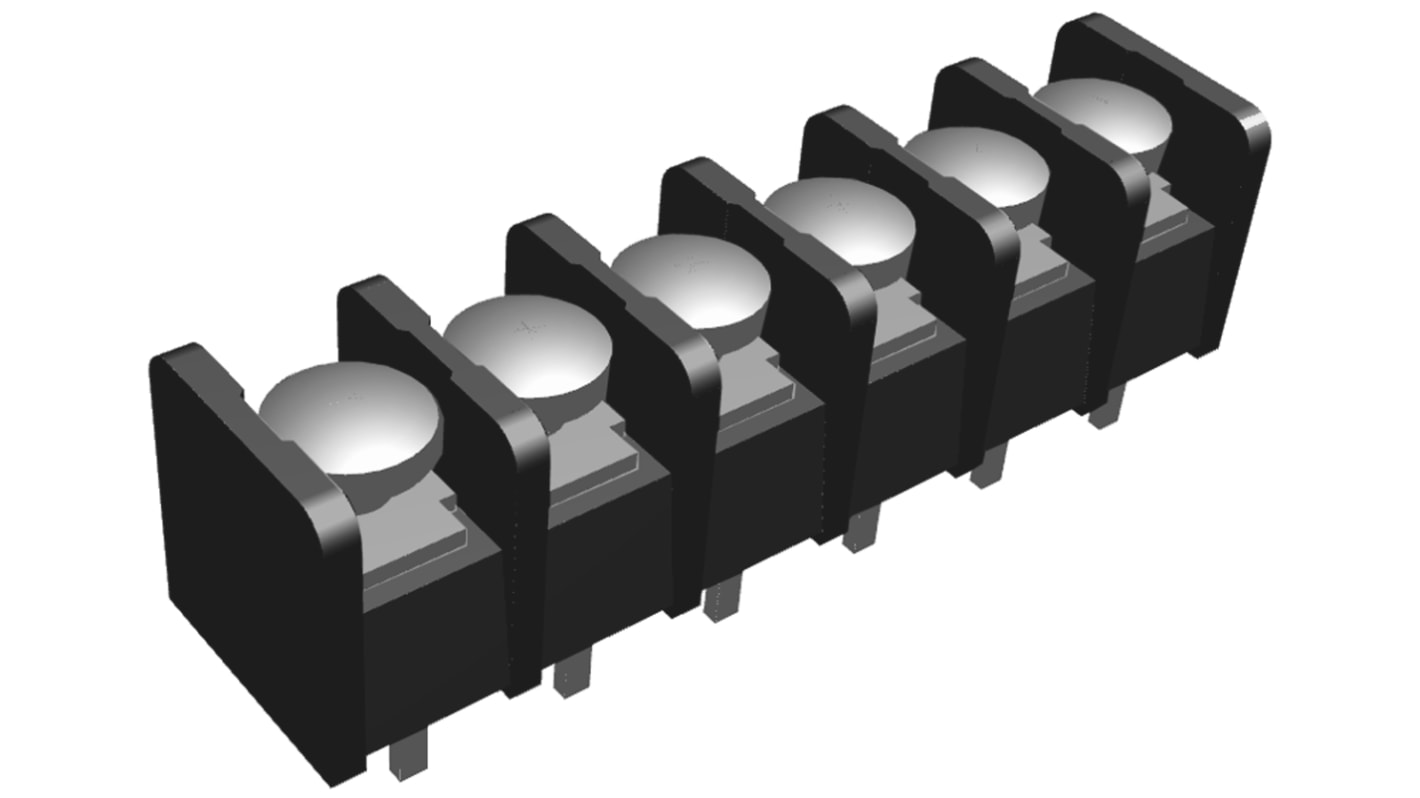

TE Connectivity Single Row 8.26mm Centreline Dual-Barrier Barrier Strips

A range of single row dual-barrier barrier strips with a 8.26mm centreline. These dual-barrier barrier strips have a flat style block design and a wire clamp combo screw terminal head apart from stock numbers 821-9025 and 821-2655 which have a binding combo head.

Specifications
Attribute Value
Number of Contacts 6
Pitch 8.26mm
Body Orientation Vertical
Contact Material Copper Alloy
Contact Plating Tin
Number of Rows 1
Screw Size UNC 6-32
Wire Size 22 → 12 AWG
Material Nylon
Current Rating 20A
Voltage Rating 150 V
5 In stock for FREE next working day delivery
Price Each
£ 2.81
(exc. VAT)
£ 3.37
(inc. VAT)
Units
Per unit
1 - 9
£2.81
10 - 24
£2.15
25 - 49
£2.00
50 - 99
£1.78
100 +
£1.69
