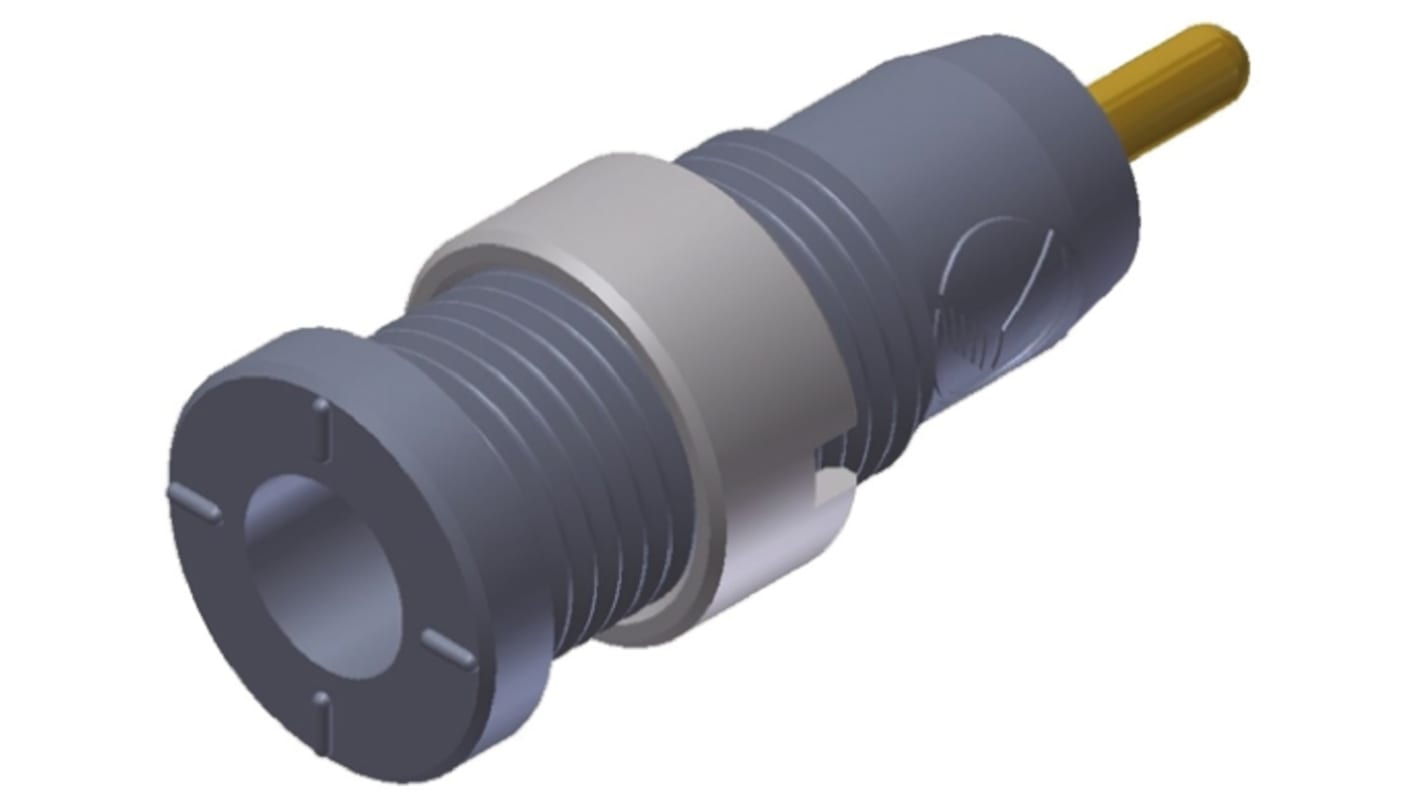

Hirschmann Test & Measurement Grey Female Banana Socket, 2mm Connector, Solder Termination, 10A, 1000V ac/dc, Gold
- RS Stock No.:
- 787-3013
- Mfr. Part No.:
- 975459706
- Brand:
- Hirschmann Test & Measurement
Bulk discount available
Subtotal (1 unit)*
£2.98
(exc. VAT)
£3.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 50 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.98 |
| 10 - 24 | £2.75 |
| 25 - 49 | £2.53 |
| 50 + | £2.30 |
*price indicative
- RS Stock No.:
- 787-3013
- Mfr. Part No.:
- 975459706
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Colour | Grey | |
| Gender | Female | |
| Termination Method | Solder | |
| Voltage Rating | 1000V ac/dc | |
| Connector Size | 2mm | |
| Current Rating | 10A | |
| Contact Plating | Gold | |
| Length | 28mm | |
| Type | Banana Socket | |
| Contact Material | Brass | |
| Insulation Material | Polyamide | |
Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Colour Grey | ||
Gender Female | ||
Termination Method Solder | ||
Voltage Rating 1000V ac/dc | ||
Connector Size 2mm | ||
Current Rating 10A | ||
Contact Plating Gold | ||
Length 28mm | ||
Type Banana Socket | ||
Contact Material Brass | ||
Insulation Material Polyamide | ||
- COO (Country of Origin):
- DE
MSEB 2630 S1.9 Miniature 2mm Safety Sockets
Hirschmann test and measurement MSEB 2630 S1.9 CAT III 2mm gold plated brass chassis mount test sockets with M8 threaded body and a 1.9 diameter by 6mm long solder termination, the 2mm socket is unsprung. These MSEB 2630 S1.9 series 2mm miniature test sockets are ideal for installation in equipment chassis and switch panels with a wall thickness of up to 8mm.
Rated Voltage 1000 VAC/DC
Current rating 10A
CAT III
2mm unsprung socket
1.9mm diameter x 6mm long solder termination
Contact resistance 5 mΩ
Current rating 10A
CAT III
2mm unsprung socket
1.9mm diameter x 6mm long solder termination
Contact resistance 5 mΩ
2mm Hirschmann Test Connectors
