10mm Thrust Ball Bearing 24mm O.D

  • RS Stock No. 409-0833
  • Mfr. Part No. 51100
  • Brand NSK
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

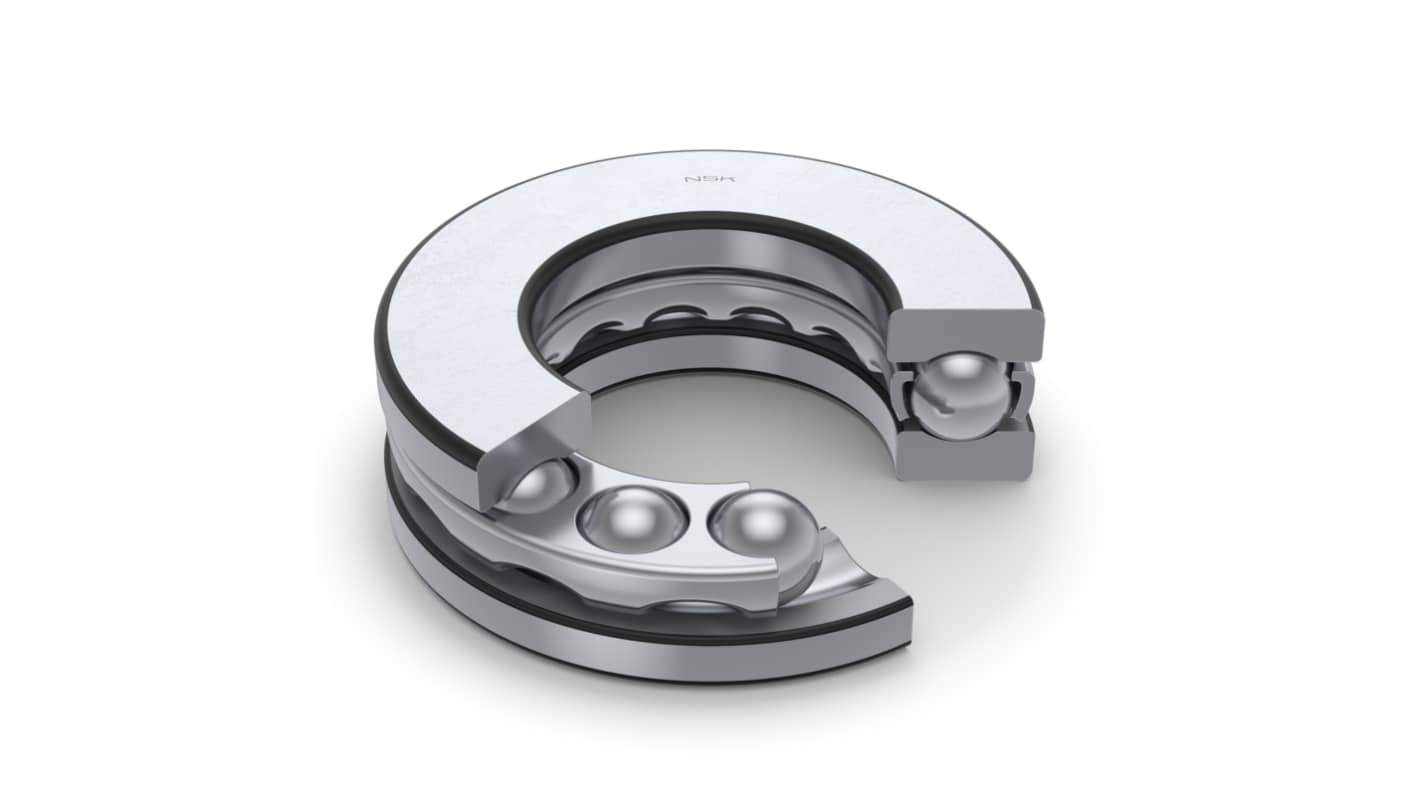

Metric Steel Ball Thrust Bearing

NSK’s range of thrust bearings are suitable for unidirectional axial loads. Supplied as three-part assemblies, these thrust bearings comprise of two grooved outer raceways and a caged ball set.

These bearings are not suitable for radial loads. Trying to apply and sustain any radial load on a thrust bearing can risk misalignment and damage.

Thrust bearings can be found in a variety of industries such as aerospace, marine and automotive with applications like vertical shaft bearings and steering columns. Commonly found in car gearboxes and clutches, thrust bearings can help to reduce loads as well as help to reduce noise.

//media.rs-online.com/t_line/L747153-01.gif
Specifications
Attribute Value
Inside Diameter 10mm
Outside Diameter 24mm
Ball Bearing Type Thrust
Race Width 9mm
Number of Rows 1
Static Load Rating 14kN
Material Steel
Cage Material Steel
Race Type Plain
Dynamic Load Rating 10.1kN
Bore Type Parallel
58 In stock for FREE next working day delivery
Price Each
£ 9.31
(exc. VAT)
£ 11.17
(inc. VAT)
Units
Per unit
1 - 4
£9.31
5 - 9
£8.94
10 - 24
£8.75
25 +
£8.57
