- RS Stock No.:
- 286-8460
- Mfr. Part No.:
- 51100
- Brand:
- SKF
13 In stock - FREE next working day delivery available
24 available from Europe for delivery within 1 working day(s).
Added
Price Each
£15.23
(exc. VAT)
£18.28
(inc. VAT)
Units | Per unit |
1 - 4 | £15.23 |
5 - 9 | £14.79 |
10 - 24 | £14.42 |
25 + | £14.03 |
- RS Stock No.:
- 286-8460
- Mfr. Part No.:
- 51100
- Brand:
- SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CZ
Product Details

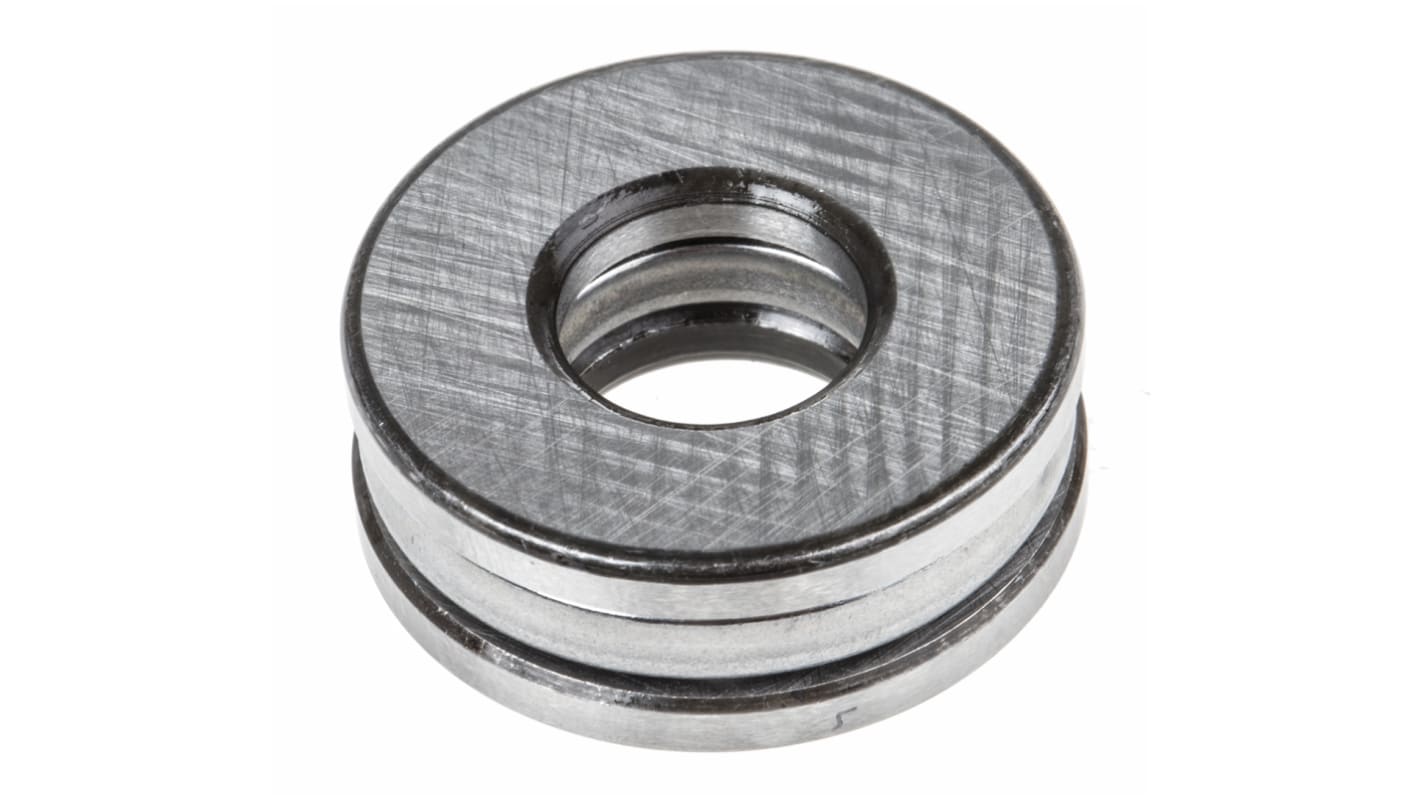

SKF Plain Thrust Ball Bearing, 10 mm ID - 51100
This thrust ball bearing from SKF is designed for handling high axial loads at low speeds in a single direction. It's made up of a shaft washer, housing washer and ball and cage assembly, each of which is separable and interchangeable. This makes installation, dismantling and maintenance inspections easier. The shaft washer has a ground bore for a very solid interference fit, which improves fatigue strength. Constructed from tough and corrosion-resistant steel, this is a hardwearing component.
• Steel balls with pressed steel bore
• Parallel cage construction
• Dynamic load rating of 10 kN
• Static load rating of 15 kN
• Inner diameter of 10 mm
• Outer diameter of 24 mm
• Single row
• Plain race type
• Race width of 9 mm
• Parallel cage construction
• Dynamic load rating of 10 kN
• Static load rating of 15 kN
• Inner diameter of 10 mm
• Outer diameter of 24 mm
• Single row
• Plain race type
• Race width of 9 mm
Application Information
• Agricultural and horticultural equipment
• Food processing sector
• Machine tooling manufacturing industry
• Food processing sector
• Machine tooling manufacturing industry
Can thrust ball bearings handle radial loads?
No, thrust ball bearings can't be used for radial loads as they're not suitable for high-speed operations with significant centrifugal force.
Do thrust ball bearings need lubricating?
Yes, to prevent wear and protect surfaces from bearing corrosion, it's important to lubricate thrust ball bearings from SKF. This will also reduce friction and improve the component's lifetime. Lubricant is best applied by maintenance professionals.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 10mm |
Outside Diameter | 24mm |
Race Width | 9mm |
Ball Bearing Type | Thrust Ball Bearing |
Sealing Arrangement | Open Type |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Static Load Rating | 12.2kN |
Dynamic Load Rating | 8.71kN |
Bore Type | Parallel |
Bearing Series | 1 Extra Light Thrust |
Race Type | Plain |
Partial Bearing Code | 51100 |
